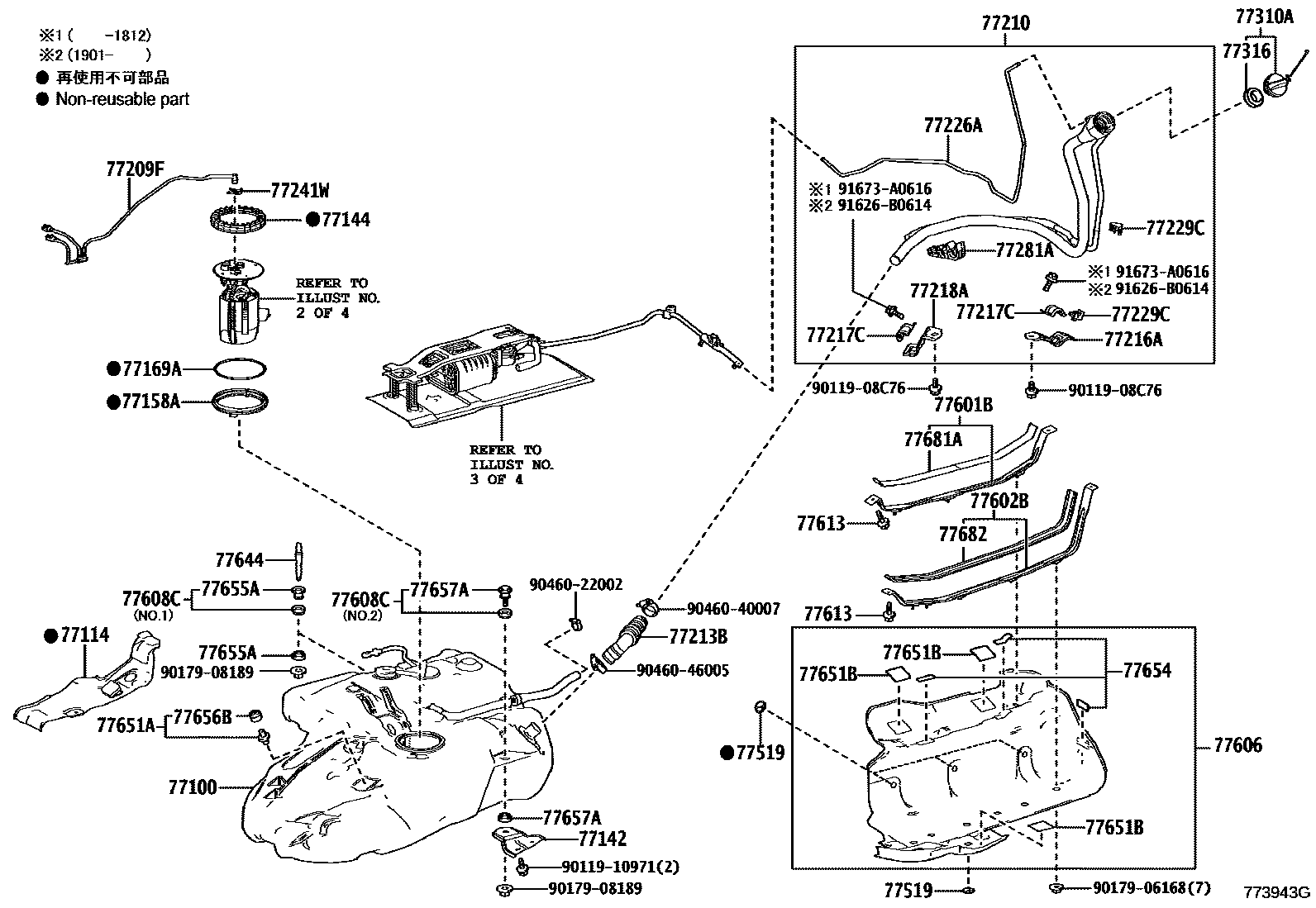

77100TANK ASSY, FUEL

main77001-48200iAGL2#,GGL2#201509-201605

sub77001-48201

main77001-48201iAGL2#,GGL2#..GCC,GEN201606-202007

sub77001-0E090

sub77114-0E060

sub77213-0E060

sub77652-48060

sub77653-0E010

sub90460-50008

main77001-48210iGYL25..CHI201510-201603

sub77001-48211

main77001-48211iGYL25..GCC,GEN201603-202209

main77001-48240iAGL2#..CHI202007

TAIWAN SPEC

sub77001-0E130

sub77114-0E060

sub77652-48060

sub77653-0E010

main77001-48280iGYL25..CHI202007-202209

77114PLATE, FUEL TANK SIDE, REAR

main77114-48040iAGL2#,GGL2#201509-201908

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-48010iAGL2#,GGL2#201509-201908

77144RETAINER, FUEL PUMP GAUGE

main77144-48020iAGL2#,GGL2#201509-201908

77158ASUPPORT, TANK SUCTION TUBE

main77158-48020iAGL2#,GGL2#201509-201908

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33030iGYL25201510-201908

main77169-48040iAGL2#,GGL2#201509-201908

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-48120iGGL2#201509-201908

main77209-48130iGYL25..GCC,GEN201510-202007

main77209-48140iAGL2#..CHI201509-202007

main77209-48160iGYL25..CHI202007

TAIWAN SPEC

main77209-48180iAGL2#..CHI202007

TAIWAN SPEC

main77209-48190iGYL25201704-201805

sub77209-48130

77210PIPE ASSY, FUEL TANK FILLER

main77210-48340iAGL2#,GGL2#201509-202007

main77210-48370iGYL25201510-202007

main77210-48380iAGL2#..CHI202007

TAIWAN SPEC

main77210-48410iGYL25..CHI202007

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-48110iAGL2#,GGL2#..GCC,GEN201509-202007

main77213-48120iGYL25201510-202007

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-48060iAGL2#,GGL2#201509-202007

main77216-48090iGYL25..CHI201510-202007

main77216-48100iAGL2#,GYL25..LHD..GEN202007

TAIWAN SPEC

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-48060iAGL2#,GGL2#..GCC,GEN201509-202007

main77217-48080iAGL2#,GYL25..LHD..GEN202007

TAIWAN SPEC

main77217-48090iGYL25..CHI201510-202007

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-48090iAGL2#,GGL2#201509-202007

main77218-48120iGYL25201510-202007

main77218-48140iAGL2#..CHI202007

TAIWAN SPEC

main77218-48150iGYL25..CHI202007

TAIWAN SPEC

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-48160iAGL2#,GGL2#201509-202007

main77226-48190iGYL25..CHI201510-202007

main77226-48210iAGL2#..CHI202007

TAIWAN SPEC

77229CCLAMP, BREATHER TUBE

main77229-48050iAGL2#,GGL2#,GYL25..GCC,GEN201509-202007

main77229-48080iAGL2#,GYL25..CHI202007

TAIWAN SPEC

77241WCLIP, TUBE JOINT

main77241-33011iAGL2#,GGL2#,GYL25201509-201908

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-48130iAGL2#,GGL2#201509-201908

77281ACLAMP, FUEL FILLER PIPE

main77281-48090iAGL2#,GGL2#201509-202007

main77281-48110iGYL25..GCC,GEN201510-202007

main77281-48170iAGL2#,GYL25..CHI202007

TAIWAN SPEC

77310ACAP ASSY, FUEL TANK

main77300-11010iGYL25..CHI202007

main77300-12020iAGL2#,GGL2#,GYL25201509-202007

main77300-33080iAGL2#..CHI202007

77316GASKET, FUEL TANK CAP

main77316-52040iAGL2#,GGL2#,GYL25201509-202007

main77316-75020iAGL2#,GYL25..LHD..GEN202007

TAIWAN SPEC

77519SPACER, FUEL TANK BRACKET

main77529-48010iAGL2#,GGL2#201509-201908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0E040iGYL25..CHI202007

main77601-48080iAGL2#,GGL2#201509-201908

main77601-48200iGYL25..CHI201510-202007

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0E040iGYL25..CHI202007

main77602-48190iAGL2#,GGL2#201509-201908

main77602-48200iGYL25..GCC,GEN201510-202007

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0E050iGYL25..CHI202007

main77606-48140iAGL2#,GGL2#201509-201908

main77606-48150iGYL25..GCC,GEN201510-202007

77608CCUSHION SET, FUEL TANK

main77608-48011iAGL2#,GGL2#201509-201908

NO.1

main77608-48040iAGL2#,GGL2#201509-201908

NO.2

77613BOLT, FUEL TANK BAND SET

main90119-10971iAGL2#,GGL2#,GYL25201509-201908

77644BOLT, FUEL TANK

main77644-48010iAGL2#,GGL2#201509-201908

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iGYL25201510-201908

main77651-48020iAGL2#,GGL2#201509-201908

77651BCUSHION, FUEL TANK

main77651-12070iAGL2#,GGL2#201509-201908

77654CUSHION, FUEL TANK, NO.2

main77652-48020iAGL2#,GGL2#201509-201908

77655ACUSHION, FUEL TANK, NO.5

main77655-48011iAGL2#,GGL2#201509-201908

77656BCUSHION, FUEL TANK, NO.6

main77656-48020iAGL2#,GGL2#201509-201908

main77656-48020iAGL2#..CHI201908-202007

BEIJING SPEC

main77656-48020iAGL2#..CHI202007

TAIWAN SPEC

77657ACUSHION, FUEL TANK, NO.5

main77655-48020iAGL2#,GGL2#201509-201908

77681ASEAT, FUEL TANK BAND

main77681-48050iAGL2#,GGL2#201509-201908

main77681-60200iGYL25..GCC,GEN201510-202007

77682SEAT, FUEL TANK BAND, LH

main77616-0E050iGYL25..CHI202007

main77681-48090iGYL25201510-202007

main77682-48050iAGL2#,GGL2#201509-201908

9011908C76

main90119-08C76

9011910971

main90119-10971

9017906168

main90179-06168

9017908189

main90179-08189

9046022002

main90460-22002

9046040007

main90460-40007

9046046005

main90460-46005

91626B0614

main91626-B0614

91673A0616

main91673-A0616

43 parts on this diagram · 20 diagrams in section
