EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

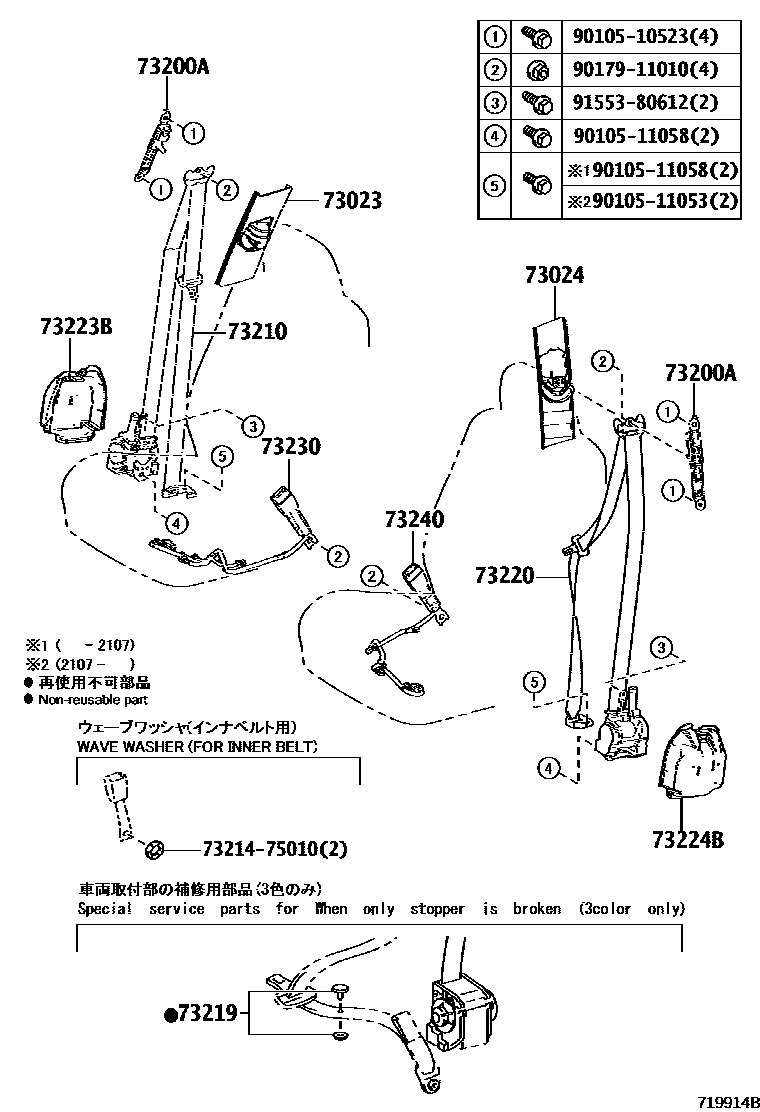

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-58010-A1i201509-201908
ECRU,TRIM0#,5#
main73023-58010-A1i201509-201908
ECRU,TRIM00,01,02,03,04,5#,6#
main73023-58010-A1i201510-201908
ECRU,TRIM0#,5#,6#
main73023-58010-B1i201908
MOON STONE,TRIM1#,20,21,22,23,24,29,4#,8#
main73023-58010-B1i201509-201908
MOON STONE,TRIM20,21,22,23,24,4#
main73023-58010-B1i201509-201908
MOON STONE,TRIM2#,4#
main73023-58010-B1i201908
MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
main73023-58010-C0i201509-201610
BLACK,TRIM05,06,25,26,3#
main73023-58010-C1i201908
BLACK,TRIM25,26,27,28,3#
main73023-58010-C1i201610-201908
BLACK,TRIM05,06,25,26,3#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-58010-A1i201509-201908
ECRU,TRIM0#,5#
sub73024-58010
main73024-58010-A1i201509-201908
ECRU,TRIM00,01,02,03,04,5#,6#
sub73024-58010
main73024-58010-A1i201510-201908
ECRU,TRIM0#,5#,6#
sub73024-58010
main73024-58010-B1i201509-201908
MOON STONE,TRIM2#,4#
sub73024-58010
main73024-58010-B1i201509-201908
MOON STONE,TRIM20,21,22,23,24,4#
sub73024-58010
main73024-58010-B1i201908
MOON STONE,TRIM1#,20,21,22,23,24,29,4#,8#
sub73024-58010
main73024-58010-B1i201908
MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
sub73024-58010
main73024-58010-C0i201509-201610
BLACK,TRIM05,06,25,26,3#
sub73024-58010
main73024-58010-C1i201908
BLACK,TRIM25,26,27,28,3#
sub73024-58010
main73024-58010-C1i201610-201908
BLACK,TRIM05,06,25,26,3#
sub73024-58010
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201509-202007
main73200-42020i202007
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-48450-A1i201509-201712
IVORY,TRIM00,01,02,03,04
sub73210-48451
main73210-48450-C3i201908-202207
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
sub73210-48451
main73210-48450-C3i201908-202207
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,29,4#,8#
sub73210-48451
main73210-48450-C3i201509-202207
BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73210-48451
main73210-48450-C4i201509-201612
BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48451
main73210-48450-C6i201612-201908
BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48451
main73210-48450-C6i201908-202207
BLACK/BLACK,TRIM25,26,27,28,3#
sub73210-48451
main73210-48450-C7i202007-202207
BLACK/ECRU,TRIM0#,5#,6#
sub73210-48451
main73210-48450-C7i201908-202007
BLACK/ECRU,TRIM00,01,02,03,04,5#,6#
sub73210-48451
main73210-48450-E1i201509-201908
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
sub73210-48451
main73210-48450-E1i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
sub73210-48451
main73210-48451-C3i202208
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
main73210-48451-C3i202208
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,4#
main73210-48451-C3i202208
BLACK/MOON STONE,TRIM20,21,22,23,24,4#
main73210-48451-C6i202208
BLACK/BLACK,TRIM25,26,27,28,3#
main73210-48451-C7i202208
BLACK/ECRU,TRIM0#,5#,6#
main73210-48570-A1i201509-201712
IVORY,TRIM04
sub73210-48571
main73210-48570-A1i201509-201712
IVORY,TRIM00,01,02,03,04
sub73210-48571
main73210-48570-A1i201509-201712
TAIWAN SPEC,IVORY,TRIM00,01,02,03,04
sub73210-48571
main73210-48570-A1i201509-201712
THAILAND SPEC,IVORY,TRIM00,01,02,03,04
sub73210-48571
main73210-48570-A1i201509-201712
INDONESIA SPEC,IVORY,TRIM00,01,02,03,04
sub73210-48571
main73210-48570-C3i201908-202207
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
sub73210-48571
main73210-48570-C3i201509-201712
INDONESIA SPEC,BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73210-48571
main73210-48570-C3i201509-201712
TAIWAN SPEC,BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73210-48571
main73210-48570-C3i201509-201712
THAILAND SPEC,BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73210-48571
main73210-48570-C3i201509-201908
BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73210-48571
main73210-48570-C3i201509-202207
BLACK/MOON STONE,TRIM2#,4#
sub73210-48571
main73210-48570-C4i201509-201612
THAILAND SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48571
main73210-48570-C4i201509-201612
TAIWAN SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48571
main73210-48570-C4i201509-201612
BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48571
main73210-48570-C4i201509-201612
INDONESIA SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48571
main73210-48570-C6i201612-201712
TAIWAN SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48571
main73210-48570-C6i201612-201712
THAILAND SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48571
main73210-48570-C6i201612-201712
INDONESIA SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48571
main73210-48570-C6i201908-202207
BLACK/BLACK,TRIM25,26,27,28,3#
sub73210-48571
main73210-48570-C6i201612-201908
BLACK/BLACK,TRIM05,06,25,26,3#
sub73210-48571
main73210-48570-C7i201908-202007
BLACK/ECRU,TRIM00,01,02,03,04,5#,6#
sub73210-48571
main73210-48570-C7i201908-202007
BLACK/ECRU,TRIM04,5#,6#
sub73210-48571
main73210-48570-C7i202007-202207
BLACK/ECRU,TRIM0#,5#,6#
sub73210-48571
main73210-48570-E1i201509-201712
INDONESIA SPEC,NOBLE BROWN,TRIM5#,6#
sub73210-48571
main73210-48570-E1i201509-201908
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
sub73210-48571
main73210-48570-E1i201509-201712
NOBLE BROWN,TRIM04,5#
sub73210-48571
main73210-48570-E1i201509-201712
TAIWAN SPEC,NOBLE BROWN,TRIM5#,6#
sub73210-48571
main73210-48570-E1i201509-201712
THAILAND SPEC,NOBLE BROWN,TRIM5#,6#
sub73210-48571
main73210-48570-E1i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
sub73210-48571
main73210-48570-E1i201712-201908
NOBLE BROWN,TRIM0#,5#
sub73210-48571
main73210-48570-E1i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
sub73210-48571
main73210-48570-E1i201908-202007
NOBLE BROWN,TRIM04
sub73210-48571
main73210-48571-C3i202208
BLACK/MOON STONE,TRIM20,21,22,23,24,4#
main73210-48571-C3i202208
BLACK/MOON STONE,TRIM2#,4#
main73210-48571-C6i202208
BLACK/BLACK,TRIM25,26,27,28,3#
main73210-48571-C7i202208
BLACK/ECRU,TRIM0#,5#,6#
73219STOPPER, TONGUE PLATE
main73219-33010i201509-201908
BLACK
main73219-33020i201509-201908
GRAY
main73219-33030i201509-201908
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-48520-A1i201509-201712
IVORY,TRIM00,01,02,03,04
sub73220-48521
main73220-48520-C3i201509-202207
BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73220-48521
main73220-48520-C3i201908-202207
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,29,4#,8#
sub73220-48521
main73220-48520-C3i201908-202207
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
sub73220-48521
main73220-48520-C4i201509-201612
BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48521
main73220-48520-C6i201908-202207
BLACK/BLACK,TRIM25,26,27,28,3#
sub73220-48521
main73220-48520-C6i201612-201908
BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48521
main73220-48520-C7i202007-202207
BLACK/ECRU,TRIM0#,5#,6#
sub73220-48521
main73220-48520-C7i201908-202007
BLACK/ECRU,TRIM00,01,02,03,04,5#,6#
sub73220-48521
main73220-48520-E1i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
sub73220-48521
main73220-48520-E1i201509-201908
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
sub73220-48521
main73220-48521-C3i202208
BLACK/MOON STONE,TRIM20,21,22,23,24,4#
main73220-48521-C3i202208
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
main73220-48521-C3i202208
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,4#
main73220-48521-C6i202208
BLACK/BLACK,TRIM25,26,27,28,3#
main73220-48521-C7i202208
BLACK/ECRU,TRIM0#,5#,6#
main73220-48530-A1i201509-201712
THAILAND SPEC,IVORY,TRIM00,01,02,03,04
sub73220-48531
main73220-48530-A1i201509-201712
IVORY,TRIM00,01,02,03,04
sub73220-48531
main73220-48530-A1i201509-201712
IVORY,TRIM04
sub73220-48531
main73220-48530-A1i201509-201712
TAIWAN SPEC,IVORY,TRIM00,01,02,03,04
sub73220-48531
main73220-48530-A1i201509-201712
INDONESIA SPEC,IVORY,TRIM00,01,02,03,04
sub73220-48531
main73220-48530-C3i201908-202207
BLACK/MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
sub73220-48531
main73220-48530-C3i201509-201712
THAILAND SPEC,BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73220-48531
main73220-48530-C3i201509-201712
INDONESIA SPEC,BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73220-48531
main73220-48530-C3i201509-201712
TAIWAN SPEC,BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73220-48531
main73220-48530-C3i201509-201908
BLACK/MOON STONE,TRIM20,21,22,23,24,4#
sub73220-48531
main73220-48530-C3i201509-202207
BLACK/MOON STONE,TRIM2#,4#
sub73220-48531
main73220-48530-C4i201509-201612
BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48531
main73220-48530-C4i201509-201612
INDONESIA SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48531
main73220-48530-C4i201509-201612
THAILAND SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48531
main73220-48530-C4i201509-201612
TAIWAN SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48531
main73220-48530-C6i201612-201908
BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48531
main73220-48530-C6i201612-201712
THAILAND SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48531
main73220-48530-C6i201612-201712
INDONESIA SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48531
main73220-48530-C6i201612-201712
TAIWAN SPEC,BLACK/BLACK,TRIM05,06,25,26,3#
sub73220-48531
main73220-48530-C6i201908-202207
BLACK/BLACK,TRIM25,26,27,28,3#
sub73220-48531
main73220-48530-C7i201908-202007
BLACK/ECRU,TRIM00,01,02,03,04,5#,6#
sub73220-48531
main73220-48530-C7i201908-202007
BLACK/ECRU,TRIM04,5#,6#
sub73220-48531
main73220-48530-C7i202007-202207
BLACK/ECRU,TRIM0#,5#,6#
sub73220-48531
main73220-48530-E1i201509-201712
TAIWAN SPEC,NOBLE BROWN,TRIM5#,6#
sub73220-48531
main73220-48530-E1i201509-201908
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
sub73220-48531
main73220-48530-E1i201509-201712
NOBLE BROWN,TRIM04,5#
sub73220-48531
main73220-48530-E1i201509-201712
THAILAND SPEC,NOBLE BROWN,TRIM5#,6#
sub73220-48531
main73220-48530-E1i201509-201712
INDONESIA SPEC,NOBLE BROWN,TRIM5#,6#
sub73220-48531
main73220-48530-E1i201712-201908
NOBLE BROWN,TRIM0#,5#,6#
sub73220-48531
main73220-48530-E1i201712-201908
NOBLE BROWN,TRIM0#,5#
sub73220-48531
main73220-48530-E1i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
sub73220-48531
main73220-48530-E1i201908-202007
NOBLE BROWN,TRIM04
sub73220-48531
main73220-48531-C3i202208
BLACK/MOON STONE,TRIM2#,4#
main73220-48531-C3i202208
BLACK/MOON STONE,TRIM20,21,22,23,24,4#
main73220-48531-C6i202208
BLACK/BLACK,TRIM25,26,27,28,3#
main73220-48531-C7i202208
BLACK/ECRU,TRIM0#,5#,6#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-48020i201509-201908
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73223-48020i201509-201908
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-48530-A0i201509-201712
IVORY,TRIM00,01,02,03,04
main73230-48530-C0i201908-202007
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
main73230-48530-C0i201509-201712
BLACK,TRIM05,06,2#,3#,4#
main73230-48530-C0i201908-202007
BLACK,TRIM00,01,02,03,04,2#,3#,4#,5#,6#
main73230-48530-C0i202007
BLACK,TRIM0#,2#,3#,4#,5#,6#
main73230-48530-C0i201712-201908
BLACK,TRIM0#,2#,3#,4#
main73230-48530-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main73230-48530-E0i201509-201908
NOBLE BROWN,TRIM5#,6#
main73230-48540-A0i201509-201712
IVORY,TRIM00,01,02,03,04
main73230-48540-A0i201509-201712
IVORY,TRIM0#
main73230-48540-C0i201908-202007
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
main73230-48540-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main73230-48540-C0i201908-202007
BLACK,TRIM00,01,02,03,04,2#,3#,4#,5#,6#
main73230-48540-C0i201908-202007
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
main73230-48540-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main73230-48540-C0i201509-201908
BLACK,TRIM2#,4#
main73230-48540-C0i201509-201712
BLACK,TRIM05,06,2#,3#,4#
main73230-48540-C0i201712-201908
BLACK,TRIM0#,2#,3#,4#
main73230-48540-C0i202007
BLACK,TRIM0#,2#,3#,4#,5#,6#
main73230-48540-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main73230-48540-E0i201908-202007
NOBLE BROWN,TRIM04
main73230-48540-E0i201509-201908
NOBLE BROWN,TRIM5#,6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-48530-A0i201509-201712
IVORY,TRIM0#
main73230-48530-A0i201509-201712
IVORY,TRIM00,01,02,03,04
main73230-48530-C0i201908-202007
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
main73230-48530-C0i201509-201712
BLACK,TRIM05,06,2#,3#,4#
main73230-48530-C0i201908-202007
BLACK,TRIM00,01,02,03,04,2#,3#,4#,5#,6#
main73230-48530-C0i201908-202007
BLACK,TRIM00,01,02,03,04,2#,4#,5#,6#
main73230-48530-C0i201908-202007
BLACK,TRIM04,2#,4#,5#,6#
main73230-48530-C0i202007
BLACK,TRIM0#,2#,4#,5#,6#
main73230-48530-C0i202007
BLACK,TRIM0#,2#,3#,4#,5#,6#
main73230-48530-C0i201509-201908
BLACK,TRIM2#,4#
main73230-48530-C0i201712-201908
BLACK,TRIM0#,2#,3#,4#
main73230-48530-E0i201908-202007
NOBLE BROWN,TRIM04
main73230-48530-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
main73230-48530-E0i201509-201908
NOBLE BROWN,TRIM5#,6#
main73230-48540-A0i201509-201712
IVORY,TRIM00,01,02,03,04
main73230-48540-C0i201509-201712
BLACK,TRIM05,06,2#,3#,4#
main73230-48540-C0i202007
BLACK,TRIM0#,2#,3#,4#,5#,6#
main73230-48540-C0i201908-202007
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
main73230-48540-C0i201712-201908
BLACK,TRIM0#,2#,3#,4#
main73230-48540-C0i201908-202007
BLACK,TRIM00,01,02,03,04,2#,3#,4#,5#,6#
main73230-48540-E0i201509-201908
NOBLE BROWN,TRIM5#,6#
main73230-48540-E0i201908-202007
NOBLE BROWN,TRIM00,01,02,03,04
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9010511058
main90105-11058
9017911010
main90179-11010
9155380612
main91553-80612

16 parts on this diagram · 2 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
