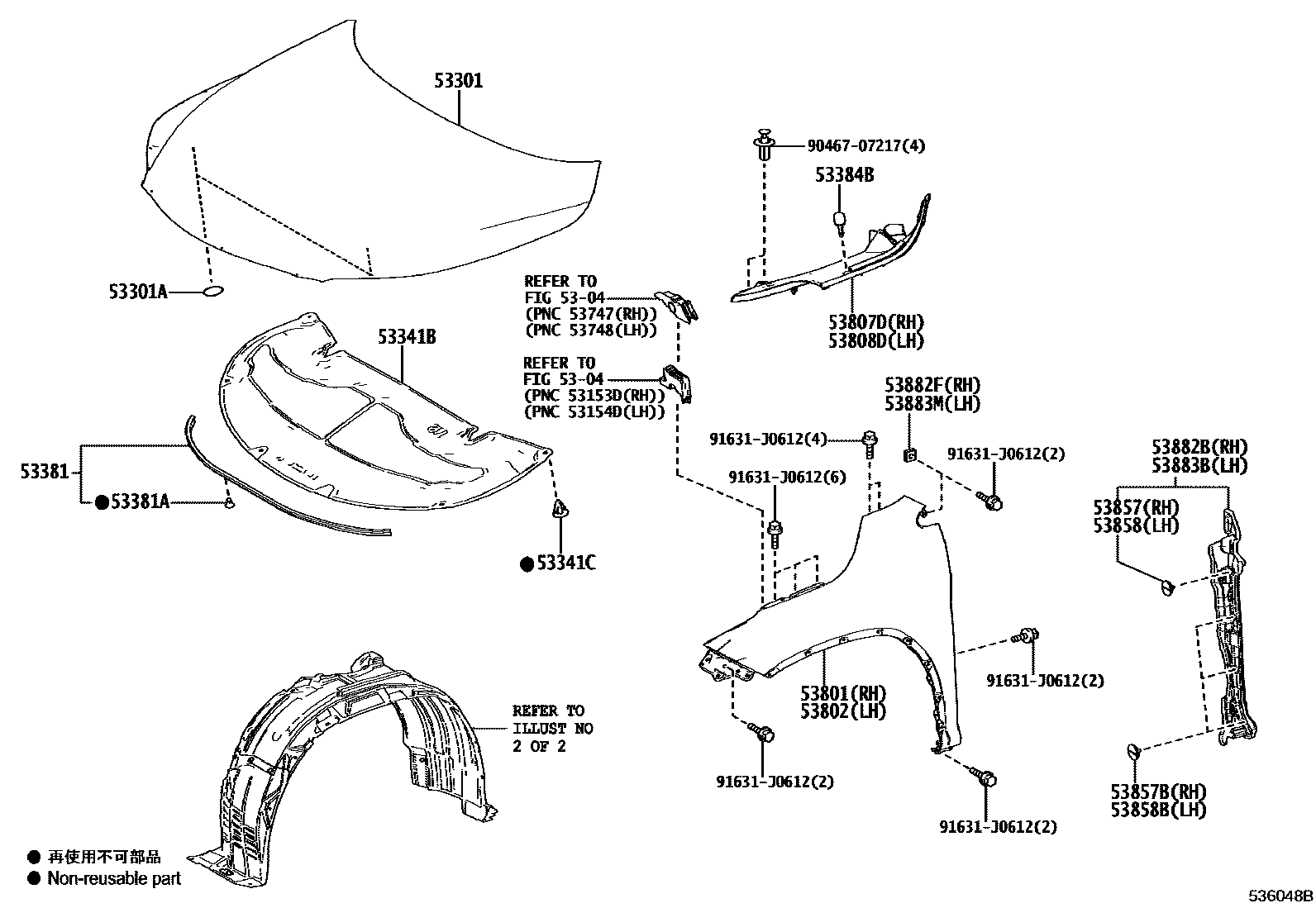

HOOD & FRONT FENDER

0001 1 0002 1

5304

53301HOOD SUB-ASSY

main53301-48180iAGL2#,GGL2#,GYL25201509-201908

53301APLUG, HOLE(FOR HOOD)

main90950-06096iAGL2#,GGL2#,GYL25201509-201908

53341BINSULATOR, HOOD

main53341-48120iAGL2#,GGL2#,GYL25201509-201908

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAGL2#,GGL2#,GYL25201509-201908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-48100iAGL2#,GGL2#,GYL25201509-201908

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAGL2#,GGL2#,GYL25201509-201908

53384BCUSHION, HOOD, CENTER

main53384-22070iAGL2#,GGL2#,GYL25201509-201908

53801FENDER SUB-ASSY, FRONT RH

main53801-48120iAGL2#,GGL2#,GYL25201509-201908

53802FENDER SUB-ASSY, FRONT LH

main53802-48140iAGL2#,GGL2#,GYL25201509-201908

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-48060iAGL2#,GGL2#,GYL25201509-201908

main53807-48070iAGL2#,GGL2#,GYL25201908

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-48060iAGL2#,GGL2#,GYL25201509-201908

main53808-48070iAGL2#,GGL2#,GYL25201908

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAGL2#,GGL2#,GYL25201509-201908

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAGL2#,GGL2#,GYL25201509-201908

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAGL2#,GGL2#,GYL25201509-201908

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAGL2#,GGL2#,GYL25201509-201908

53882BSEAL, FRONT FENDER, RH

main53882-48050iAGL2#,GGL2#,GYL25201509-201908

53882FSEAL, FRONT FENDER

main53882-33060iAGL2#,GGL2#,GYL25201509-201908

53883BSEAL, FRONT FENDER, LH

main53883-48050iAGL2#,GGL2#,GYL25201509-201908

53883MSEAL, FRONT FENDER

main53882-33060iAGL2#,GGL2#,GYL25201509-201908

9046707217

main90467-07217

91631J0612

main91631-J0612

22 parts on this diagram · 2 diagrams in section
