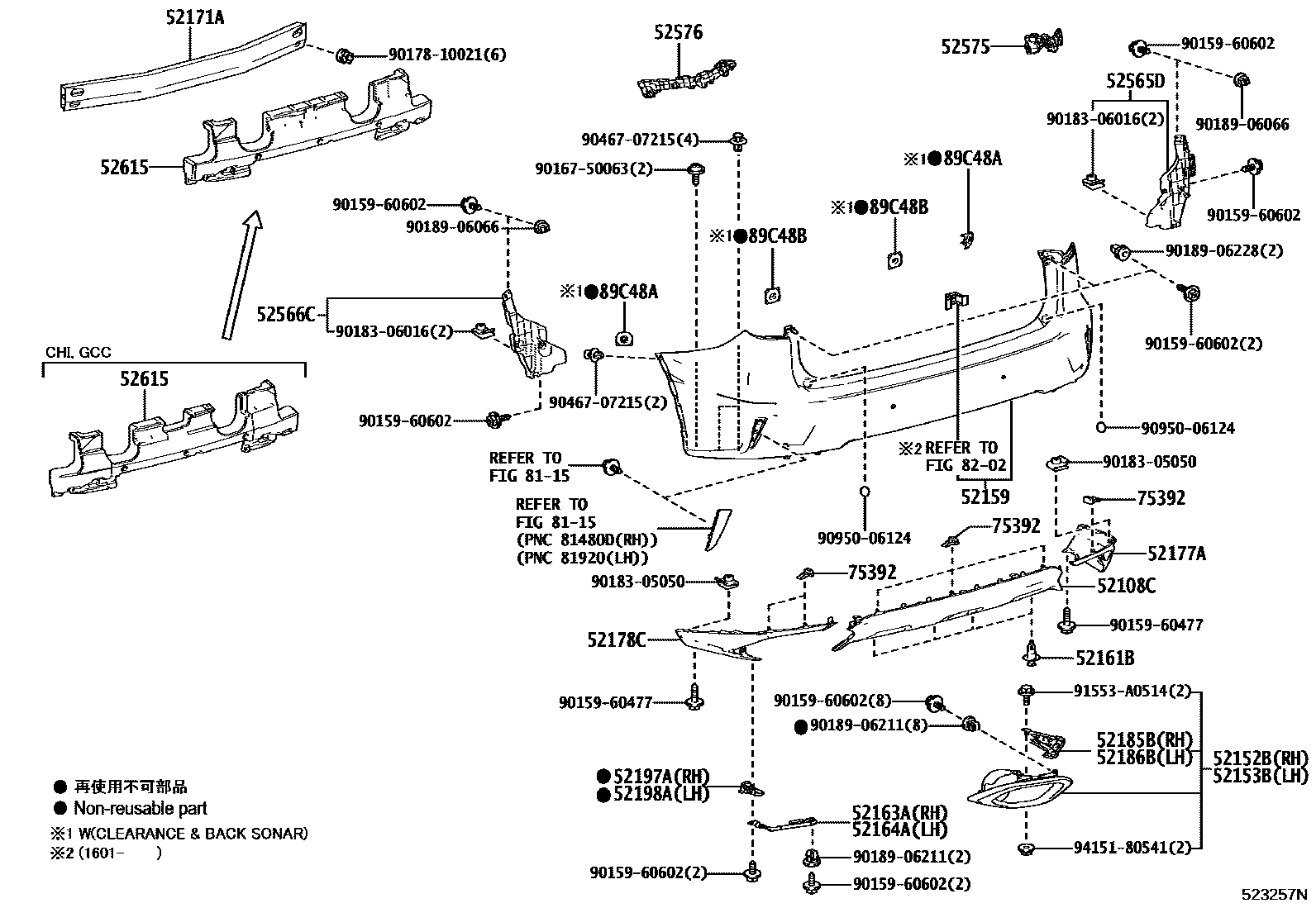

REAR BUMPER & BUMPER STAY
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.,"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
sub52159-48931
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
sub52159-48931
PAINT REQ.
PAINT REQ.
PAINT REQ.,"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
sub52161-0K040
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52177ARETAINER, REAR BUMPER EXTENSION, RH
52178CRETAINER, REAR BUMPER EXTENSION, LH
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
75392RETAINER, OUTSIDE MOULDING
8115
8202
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
SONIC QUARTZ,085
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085
SONIC TITANIUM,1J7
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4
BLACK,212
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212
GRAPHITE BLACK GF.,223
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7
AMBER CS.,4X2
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),AMBER CS.,4X2
DEEP BLUE MC.,8X5
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5
"F-SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)
"F-SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
"F-SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)
PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT)
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
"F-SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)
"F-SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
"F-SPORT"*(F)&PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)
PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT)
9015960477
main90159-60477
9015960602
main90159-60602
9016750063
main90167-50063
9017810021
main90178-10021
9018305050
main90183-05050
9018306016
main90183-06016
9018906066
main90189-06066
9018906211
main90189-06211
9018906228
main90189-06228
9046707215
main90467-07215
9095006124
main90950-06124
91553A0514
main91553-A0514
9415180541
main94151-80541
37 parts on this diagram · 5 diagrams in section
