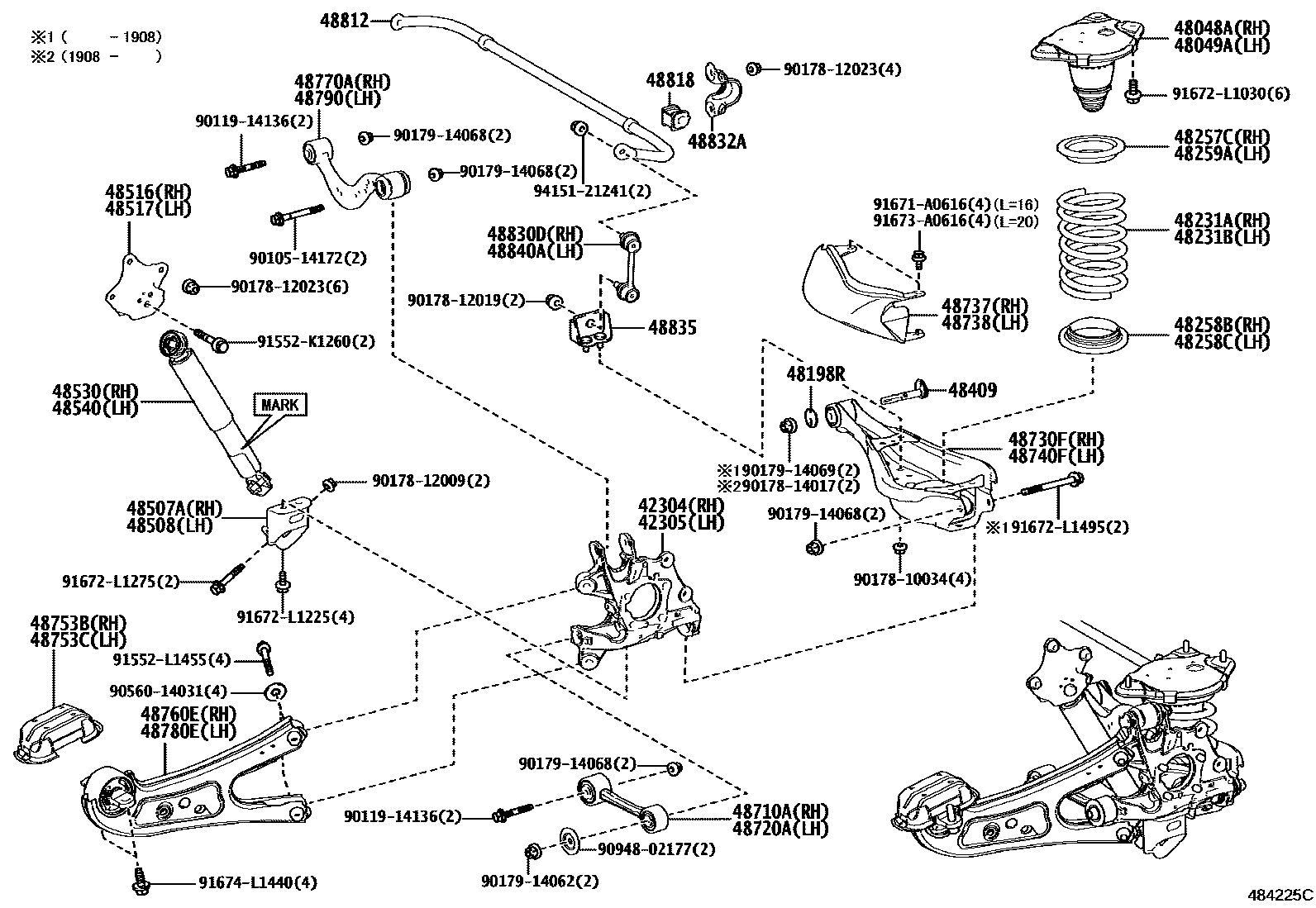

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1W (AVS,ACTIVE STABILIZER)

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-48070iAGL2#,GGL2#,GYL25201509-201908

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-48070iAGL2#,GGL2#,GYL25201509-201908

48048ASEAT SUB-ASSY, SPRING, RH

main48048-0E040iGGL25,GYL25..GCC201908

main48048-48011iAGL2#,GGL20;GGL25,GYL25..CHI,GEN201908

*AVS-WITH

main48048-48011iAGL2#,GGL2#,GYL25201509-201908

48049ASEAT SUB-ASSY, SPRING, LH

main48049-0E040iGGL25,GYL25..GCC201908

main48049-48011iAGL2#,GGL20;GGL25,GYL25..CHI,GEN201908

*AVS-WITH

main48049-48011iAGL2#,GGL2#,GYL25201509-201908

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-48010iAGL2#,GGL2#,GYL25201509-201908

48231ASPRING, COIL, REAR RH

main48231-0E270iGGL25..GCC201908

main48231-0E280iGYL25..GCC201908

main48231-48640iAGL20,GGL20201509-201810

sub48231-48641

main48231-48641iAGL20,GGL20201811-201908

main48231-48650iAGL25,GGL25201509-201810

sub48231-48651

main48231-48651iAGL25,GGL25..CHI,GEN201908

*AVS-WITH

main48231-48651iAGL25,GGL25201811-201908

main48231-48660iGYL25201510-201810

sub48231-48661

main48231-48661iGYL25..GCC201908

*AVS-WITH

main48231-48661iGYL25201811-201908

48231BSPRING, COIL, REAR LH

main48231-0E270iGGL25..GCC201908

main48231-0E280iGYL25..GCC201908

main48231-48640iAGL20,GGL20201509-201810

sub48231-48641

main48231-48641iAGL20,GGL20201811-201908

main48231-48650iAGL25,GGL25201509-201810

sub48231-48651

main48231-48651iAGL25,GGL25..CHI,GEN201908

*AVS-WITH

main48231-48651iAGL25,GGL25201811-201908

main48231-48660iGYL25201510-201810

sub48231-48661

main48231-48661iGYL25..GCC201908

*AVS-WITH

main48231-48661iGYL25201811-201908

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-48010iAGL2#,GGL2#,GYL25201509-201908

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-48030iAGL2#,GGL2#,GYL25201509-201908

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-48030iAGL2#,GGL2#,GYL25201509-201908

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-48010iAGL2#,GGL2#,GYL25201509-201908

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-48030iAGL2#,GGL2#,GYL25201509-201908

48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH

main48507-48010iAGL2#,GGL2#,GYL25201509-201908

48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH

main48508-48080iAGL2#,GGL2#,GYL25201509-201908

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-48010iAGL2#,GGL2#,GYL25201509-201908

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48517-48010iAGL2#,GGL2#,GYL25201509-201908

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-48392iAGL25,GYL25;AGL20,GGL2#..GCC,GEN201509-201908

MARK 48530-48392,*AVS-WITH

main48530-48400iAGL25,GYL25;AGL20,GGL2#..GCC,GEN201908

MARK 48530-48400,*AVS-WITH

main48530-48460iGGL25..GCC202001

EGYPT SPEC&*AVS-WITH

main48531-48321iAGL2#,GGL2#201509-201908

MARK 48531-48321

main48531-48341iGYL25201510-201908

MARK 48531-48341

main48531-48480iAGL20,GGL20201908

MARK 48531-48480

main48531-48490iAGL25,GGL25,GYL25..CHI,GEN201908

MARK 48531-48490

main48531-48510iGGL25,GYL25..GCC201908

MARK 48531-48510

main48531-48520iGGL25..GCC202001

MARK 48531-48520,EGYPT SPEC

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-48321iAGL2#,GGL2#201509-201908

MARK 48531-48321

main48531-48341iGYL25201510-201908

MARK 48531-48341

main48531-48480iAGL20,GGL20201908

MARK 48531-48480

main48531-48490iAGL25,GGL25,GYL25..CHI,GEN201908

MARK 48531-48490

main48531-48510iGGL25,GYL25..GCC201908

MARK 48531-48510

main48531-48520iGGL25..GCC202001

MARK 48531-48520,EGYPT SPEC

main48540-48392iAGL25,GYL25;AGL20,GGL2#..GCC,GEN201509-201908

MARK 48540-48392,*AVS-WITH

main48540-48400iAGL25,GYL25;AGL20,GGL2#..GCC,GEN201908

MARK 48540-48400,*AVS-WITH

main48540-48410iGGL25..GCC202001

EGYPT SPEC&*AVS-WITH

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-48090iAGL2#,GGL2#,GYL25201509-201908

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-48090iAGL2#,GGL2#,GYL25201509-201908

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-48170iAGL2#,GGL2#,GYL25201509-201908

48737COVER, REAR SUSPENSION ARM, RH

main48737-48010iAGL2#,GGL2#,GYL25201509-201908

48738COVER, REAR SUSPENSION ARM, LH

main48738-48010iAGL2#,GGL2#,GYL25201509-201908

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-48170iAGL2#,GGL2#,GYL25201509-201908

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-48010iAGL2#,GGL2#,GYL25201509-201908

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-48010iAGL2#,GGL2#,GYL25201509-201908

48760EARM ASSY, TRAILING, REAR RH

main48760-48061iAGL2#,GGL2#,GYL25201509-202108

sub48760-48062

main48760-48062iAGL2#,GGL2#,GYL25202109

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-48010iAGL2#,GGL2#,GYL25201509-201908

48780EARM ASSY, TRAILING, REAR LH

main48780-48091iAGL2#,GGL2#,GYL25201509-202108

sub48780-48092

main48780-48092iAGL2#,GGL2#,GYL25202109

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-48010iAGL2#,GGL2#,GYL25201509-201908

48812BAR, STABILIZER, REAR

main48812-48290iAGL2#,GGL2#,GYL25201509-201908

main48812-48330iAGL2#,GGL2#,GYL25201908

48818BUSH, STABILIZER, REAR

main48818-48110iAGL2#,GGL2#,GYL25201509-201908

main48818-48110iGYL25..GCC,GEN201908

STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)

main48818-48130iAGL2#,GGL2#,GYL25201908

48830DLINK ASSY, REAR STABILIZER, RH

main48802-48010iAGL2#,GGL2#,GYL25201509-201908

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-48070iAGL2#,GGL2#,GYL25201509-201908

48835BRACKET, REAR STABILIZER, LOWER

main48835-48010iAGL2#,GGL2#,GYL25201509-201908

48840ALINK ASSY, REAR STABILIZER, LH

main48803-48010iAGL2#,GGL2#,GYL25201509-201908

9010514172

main90105-14172

9011914136

main90119-14136

9017810034

main90178-10034

9017812009

main90178-12009

9017812019

main90178-12019

9017812023

main90178-12023

9017814017

main90178-14017

9017914062

main90179-14062

9017914068

main90179-14068

9017914069

main90179-14069

9056014031

main90560-14031

9094802177

main90948-02177

91552K1260

main91552-K1260

91552L1455

main91552-L1455

91671A0616

main91671-A0616

91672L1030

main91672-L1030

91672L1225

main91672-L1225

91672L1275

main91672-L1275

91672L1495

main91672-L1495

91673A0616

main91673-A0616

91674L1440

main91674-L1440

9415121241

main94151-21241

58 parts on this diagram · 2 diagrams in section
