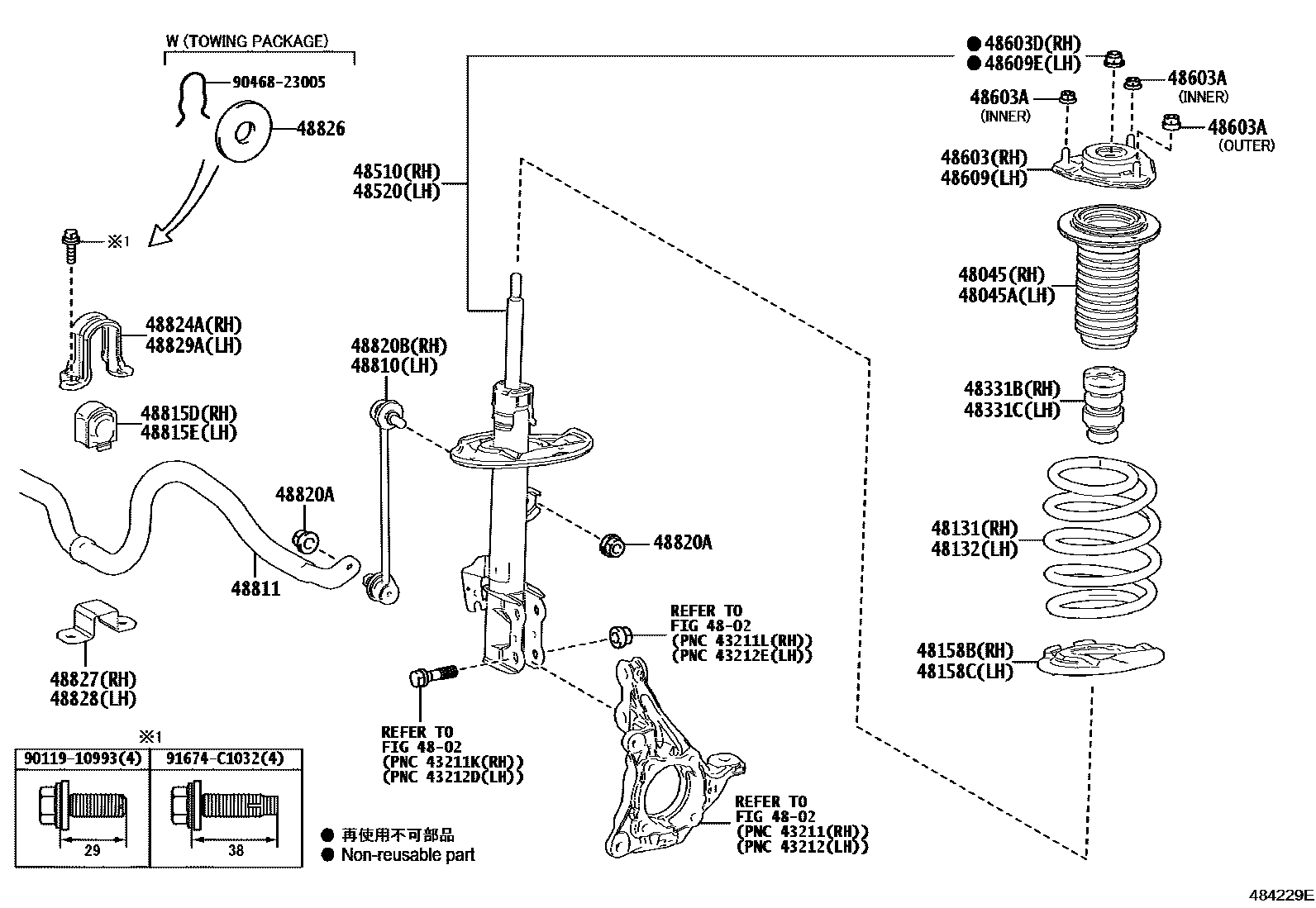

FRONT SPRING & SHOCK ABSORBER
4802
48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR
48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR
48131SPRING, FRONT COIL, RH
sub48131-48801
sub48131-48802
sub48131-48811
sub48131-48812
sub48131-48821
sub48131-48822
48132SPRING, FRONT COIL, LH
sub48132-48141
sub48132-48142
sub48132-48151
sub48132-48152
sub48132-48161
sub48132-48162
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-48410
MARK 48510-48440,*AVS-WITH
MARK 48510-48590
MARK 48510-48600
MARK 48510-48580,*AVS-WITH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-48410
MARK 48520-48440,*AVS-WITH
MARK 48520-48590
MARK 48520-48600
MARK 48520-48580,*AVS-WITH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
INNER
OUTER
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
48815EBUSH, FRONT STABILIZER BAR, LH
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48826PROTECTOR, FRONT STABILIZER BAR
AUSTRALIA SPEC
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910993
main90119-10993
9046823005
main90468-23005
91674C1032
main91674-C1032
30 parts on this diagram · 3 diagrams in section
