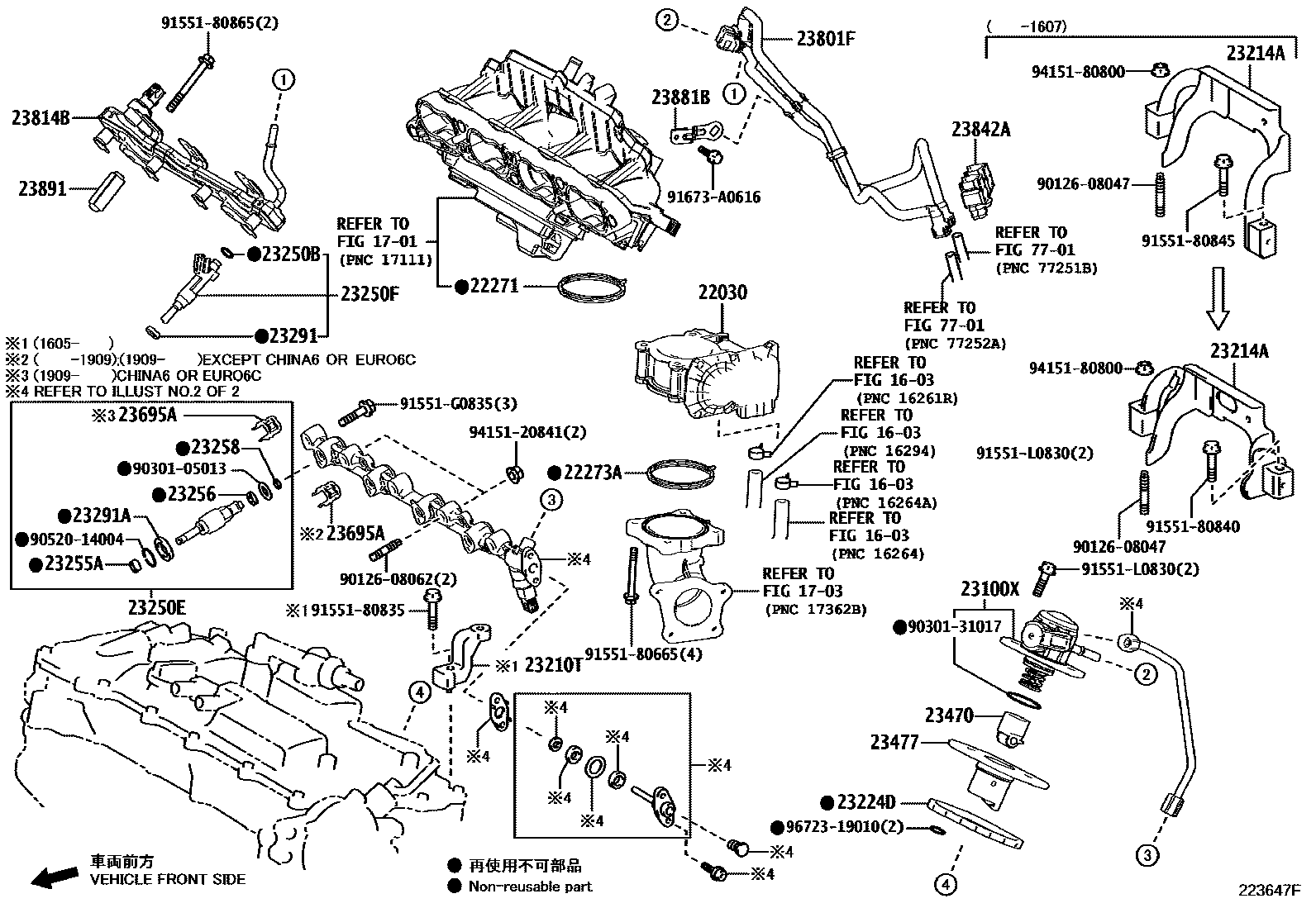

FUEL INJECTION SYSTEM

Parts diagram
1603
1701
1703
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-31090i201509-201908
main22030-36040i201509-201908
22271GASKET, THROTTLE BODY
main22271-31040i201509-201908
main22271-36040i201509-201908
22273AGASKET, THROTTLE BODY, NO.2
main22271-36040i201509-201908
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
main23101-31080i201509-201908
main23101-31100i201510-201908
main23101-36080i201509-202209
sub23101-36090
main23101-36110i201908-202209
MACAO SPEC
main23101-36110i201908-202209
HONG KONG SPEC
main23101-36110i201809-202007
BEIJING SPEC
main23101-36110i202007-202209
TAIWAN SPEC
main23101-36110i202107-202209
SINGAPORE SPEC
23210TBRACKET, FUEL PUMP
main23210-36010i201605-201908
23214APROTECTOR, FUEL PUMP
main23214-31010i201509-201908
main23214-36031i201509-201607
main23214-36032i201607-201908
23224DGASKET, FUEL PUMP SPACER
main23224-31020i201509-202111
sub23224-31021
main23224-31021i202112
main23224-36020i201509-202209
23250BRING, O(FOR FUEL INJECTOR)
main90301-07037i201509-201908
main90301-07037i201908
(J)
main90301-C0072i201908
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
main23209-31170-06i201509-201908
MARK 6,REFER REPAIR MANUAL
main23209-31170-07i201509-201908
MARK 7,REFER REPAIR MANUAL
main23209-31170-08i201509-201908
MARK 8,REFER REPAIR MANUAL
main23209-31180-01i201510-201908
MARK 1,REFER REPAIR MANUAL
main23209-31180-02i201510-201908
MARK 2,REFER REPAIR MANUAL
main23209-31180-03i201510-201908
MARK 3,REFER REPAIR MANUAL
main23209-36030-01i201509-202007
MARK 1,REFER REPAIR MANUAL
main23209-36030-02i201509-202007
MARK 2,REFER REPAIR MANUAL
main23209-36030-03i201509-202007
MARK 3,REFER REPAIR MANUAL
main23209-36040-01i201809-201909
BEIJING SPEC,MARK 1,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-01i201908-201909
HONG KONG SPEC,MARK 1,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-01i201908-201909
MACAO SPEC,MARK 1,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-02i201908-201909
HONG KONG SPEC,MARK 2,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-02i201908-201909
MACAO SPEC,MARK 2,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-02i201809-201909
BEIJING SPEC,MARK 2,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-03i201908-201909
HONG KONG SPEC,MARK 3,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-03i201809-201909
BEIJING SPEC,MARK 3,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-03i201908-201909
MACAO SPEC,MARK 3,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-04i201908-201909
MACAO SPEC,MARK 4,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-04i201809-201909
BEIJING SPEC,MARK 4,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-04i201908-201909
HONG KONG SPEC,MARK 4,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-05i201908-201909
MACAO SPEC,MARK 5,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-05i201809-201909
BEIJING SPEC,MARK 5,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-05i201908-201909
HONG KONG SPEC,MARK 5,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-06i201809-201909
BEIJING SPEC,MARK 6,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-06i201908-201909
HONG KONG SPEC,MARK 6,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-06i201908-201909
MACAO SPEC,MARK 6,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-07i201809-201909
BEIJING SPEC,MARK 7,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-07i201908-201909
HONG KONG SPEC,MARK 7,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-07i201908-201909
MACAO SPEC,MARK 7,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-08i201908-201909
MACAO SPEC,MARK 8,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-08i201809-201909
BEIJING SPEC,MARK 8,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-08i201908-201909
HONG KONG SPEC,MARK 8,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-09i201809-201909
BEIJING SPEC,MARK 9,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-09i201908-201909
HONG KONG SPEC,MARK 9,REFER REPAIR MANUAL
sub23209-36041
main23209-36040-09i201908-201909
MACAO SPEC,MARK 9,REFER REPAIR MANUAL
sub23209-36041
main23209-36041-01i201909
MACAO SPEC,MARK 1,MARK=23250-36040*RRM
main23209-36041-01i201909-202003
BEIJING SPEC,MARK 1,MARK=23250-36040*RRM
main23209-36041-01i202107
SINGAPORE SPEC,MARK 1,MARK=23250-36040*RRM
main23209-36041-01i201909
HONG KONG SPEC,MARK 1,MARK=23250-36040*RRM
main23209-36041-02i201909
MACAO SPEC,MARK 2,MARK=23250-36040*RRM
main23209-36041-02i201909-202003
BEIJING SPEC,MARK 2,MARK=23250-36040*RRM
main23209-36041-02i201909
HONG KONG SPEC,MARK 2,MARK=23250-36040*RRM
main23209-36041-02i202107
SINGAPORE SPEC,MARK 2,MARK=23250-36040*RRM
main23209-36041-03i201909
MACAO SPEC,MARK 3,MARK=23250-36040*RRM
main23209-36041-03i201909-202003
BEIJING SPEC,MARK 3,MARK=23250-36040*RRM
main23209-36041-03i201909
HONG KONG SPEC,MARK 3,MARK=23250-36040*RRM
main23209-36041-03i202107
SINGAPORE SPEC,MARK 3,MARK=23250-36040*RRM
main23209-36041-04i201909
MACAO SPEC,MARK 4,MARK=23250-36040*RRM
main23209-36041-04i201909-202003
BEIJING SPEC,MARK 4,MARK=23250-36040*RRM
main23209-36041-04i202107
SINGAPORE SPEC,MARK 4,MARK=23250-36040*RRM
main23209-36041-04i201909
HONG KONG SPEC,MARK 4,MARK=23250-36040*RRM
main23209-36041-05i201909
HONG KONG SPEC,MARK 5,MARK=23250-36040*RRM
main23209-36041-05i201909
MACAO SPEC,MARK 5,MARK=23250-36040*RRM
main23209-36041-05i201909-202003
BEIJING SPEC,MARK 5,MARK=23250-36040*RRM
main23209-36041-05i202107
SINGAPORE SPEC,MARK 5,MARK=23250-36040*RRM
main23209-36041-06i201909
HONG KONG SPEC,MARK 6,MARK=23250-36040*RRM
main23209-36041-06i202107
SINGAPORE SPEC,MARK 6,MARK=23250-36040*RRM
main23209-36041-06i201909-202003
BEIJING SPEC,MARK 6,MARK=23250-36040*RRM
main23209-36041-06i201909
MACAO SPEC,MARK 6,MARK=23250-36040*RRM
main23209-36041-07i201909
HONG KONG SPEC,MARK 7,MARK=23250-36040*RRM
main23209-36041-07i201909
MACAO SPEC,MARK 7,MARK=23250-36040*RRM
main23209-36041-07i202107
SINGAPORE SPEC,MARK 7,MARK=23250-36040*RRM
main23209-36041-07i201909-202003
BEIJING SPEC,MARK 7,MARK=23250-36040*RRM
main23209-36041-08i201909
MACAO SPEC,MARK 8,MARK=23250-36040*RRM
main23209-36041-08i201909-202003
BEIJING SPEC,MARK 8,MARK=23250-36040*RRM
main23209-36041-08i202107
SINGAPORE SPEC,MARK 8,MARK=23250-36040*RRM
main23209-36041-08i201909
HONG KONG SPEC,MARK 8,MARK=23250-36040*RRM
main23209-36041-09i201909
HONG KONG SPEC,MARK 9,MARK=23250-36040*RRM
main23209-36041-09i201909
MACAO SPEC,MARK 9,MARK=23250-36040*RRM
main23209-36041-09i201909-202003
BEIJING SPEC,MARK 9,MARK=23250-36040*RRM
main23209-36041-09i202107
SINGAPORE SPEC,MARK 9,MARK=23250-36040*RRM
main23209-36080-01i202007
TAIWAN SPEC,MARK 1,MARK=23250-36080*RRM
main23209-36080-01i202007
MARK 1,MARK=23250-36080*RRM
main23209-36080-01i202003-202007
BEIJING SPEC,MARK 1,MARK=23250-36080*RRM
main23209-36080-02i202007
MARK 2,MARK=23250-36080*RRM
main23209-36080-02i202003-202007
BEIJING SPEC,MARK 2,MARK=23250-36080*RRM
main23209-36080-02i202007
TAIWAN SPEC,MARK 2,MARK=23250-36080*RRM
main23209-36080-03i202007
TAIWAN SPEC,MARK 3,MARK=23250-36080*RRM
main23209-36080-03i202007
MARK 3,MARK=23250-36080*RRM
main23209-36080-03i202003-202007
BEIJING SPEC,MARK 3,MARK=23250-36080*RRM
main23209-36080-04i202007
TAIWAN SPEC,MARK 4,MARK=23250-36080*RRM
main23209-36080-04i202007
MARK 4,MARK=23250-36080*RRM
main23209-36080-04i202003-202007
BEIJING SPEC,MARK 4,MARK=23250-36080*RRM
main23209-36080-05i202007
MARK 5,MARK=23250-36080*RRM
main23209-36080-05i202003-202007
BEIJING SPEC,MARK 5,MARK=23250-36080*RRM
main23209-36080-05i202007
TAIWAN SPEC,MARK 5,MARK=23250-36080*RRM
main23209-36080-06i202007
MARK 6,MARK=23250-36080*RRM
main23209-36080-06i202003-202007
BEIJING SPEC,MARK 6,MARK=23250-36080*RRM
main23209-36080-06i202007
TAIWAN SPEC,MARK 6,MARK=23250-36080*RRM
main23209-36080-07i202007
MARK 7,MARK=23250-36080*RRM
main23209-36080-07i202007
TAIWAN SPEC,MARK 7,MARK=23250-36080*RRM
main23209-36080-07i202003-202007
BEIJING SPEC,MARK 7,MARK=23250-36080*RRM
main23209-36080-08i202003-202007
BEIJING SPEC,MARK 8,MARK=23250-36080*RRM
main23209-36080-08i202007
MARK 8,MARK=23250-36080*RRM
main23209-36080-08i202007
TAIWAN SPEC,MARK 8,MARK=23250-36080*RRM
main23209-36080-09i202007
TAIWAN SPEC,MARK 9,MARK=23250-36080*RRM
main23209-36080-09i202007
MARK 9,MARK=23250-36080*RRM
main23209-36080-09i202003-202007
BEIJING SPEC,MARK 9,MARK=23250-36080*RRM
23250FINJECTOR ASSY, FUEL(FOR PORT)
main23209-39275i201509-202007
main23209-39315i202007
TAIWAN SPEC
main23209-39315i202107
SINGAPORE SPEC
main23209-39315i201809-202007
BEIJING SPEC
main23209-39315i201908
HONG KONG SPEC
main23209-39315i201908
MACAO SPEC
main23209-39325i201908-202002
MARK=23250-31140
main23209-39325i201509-201908
main23209-39335i201708-201908
sub23209-39325
main23209-39435i202002
MARK=23250-31230
23255ASEAL, FUEL INJECTOR
main23255-31020i201509-201901
main23255-31020i201901-201903
BEIJING SPEC
main23255-31030i201902-201908
23256RING, FUEL INJECTOR BACK-UP, NO.1
main23256-25010i201902-201908
NO.1
main23256-25010i201809-201902
BEIJING SPEC
main23256-31010i201509-201901
NO.1
main23256-31010i201509-201908
NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
main23258-31010i201509-201908
NO.2
main23258-31020i201908-201909
MACAO SPEC
main23258-31020i201509-201908
NO.1
main23258-31020i201809-201909
BEIJING SPEC
main23258-31020i201908-201909
HONG KONG SPEC
main23258-31020i201909-202003
BEIJING SPEC,PNC23250E=2325036040
main23258-31020i201909
HONG KONG SPEC,PNC23250E=2325036040
main23258-31020i201909
MACAO SPEC,PNC23250E=2325036040
main23258-31020i202107
SINGAPORE SPEC,PNC23250E=2325036040
main23258-31030i201510-201908
NO.1
main23258-36010i201509-202007
main23258-47030i202007
TAIWAN SPEC,PNC23250E=2325036080
main23258-47030i202007
PNC23250E=2325036080
main23258-47030i202003-202007
BEIJING SPEC,PNC23250E=2325036080
23291INSULATOR, INJECTOR VIBRATION
main23291-28020i201509-201908
main23291-31030i201509-201908
23291AINSULATOR, INJECTOR VIBRATION
main23291-23010i201509-201803
main23291-28020i201804-201908
main23291-31020i201509-201908
23470LIFTER ASSY, FUEL PUMP
main23470-25010i201704-201908
main23470-31010i201509-201703
sub23470-25010
main23470-36020i201509-202209
23477GUIDE, FUEL PUMP LIFTER
main23477-31020i201509-201908
main23477-36020i201509-202209
23695ACLAMP, NOZZLE HOLDER
main23695-31020i201509-202007
main23695-36010i202007
TAIWAN SPEC
main23695-36010i202003-202007
BEIJING SPEC
main23695-70010i201908
MACAO SPEC
main23695-70010i201908
HONG KONG SPEC
main23695-70010i201809-202003
BEIJING SPEC
main23695-70010i202107
SINGAPORE SPEC
23801FHOSE, FUEL, NO.1
main23801-31260i201509-201706
sub23801-31261
main23801-31261i201706-201712
sub23801-31300
main23801-31270i201510-201706
sub23801-31271
main23801-31271i201706-201712
sub23801-31320
main23801-31300i201712-201901
sub23801-31301
main23801-31301i201902-201908
main23801-31311i202007
TAIWAN SPEC
main23801-31311i201908-202007
BEIJING SPEC&EXHAUST EMISSION CONTROL-CHINA 6
main23801-31311i201908
HONG KONG SPEC
main23801-31311i201908
MACAO SPEC
main23801-31311i202107
SINGAPORE SPEC
main23801-31320i201712-201901
sub23801-31321
main23801-31321i201902-202007
main23801-36070i201509-201708
sub23801-36071
main23801-36071i201709-201812
sub23801-36072
main23801-36072i201901-202007
main23801-36101i201809-201901
BEIJING SPEC&EXHAUST EMISSION CONTROL-CHINA 6
sub23801-36102
main23801-36102i201908
HONG KONG SPEC
main23801-36102i201908
MACAO SPEC
main23801-36102i202107
SINGAPORE SPEC
main23801-36102i202007
TAIWAN SPEC
main23801-36102i201902-202007
BEIJING SPEC&EXHAUST EMISSION CONTROL-CHINA 6
23814BPIPE, FUEL DELIVERY
main23800-36030i201509-202209
sub23800-36040
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
main23842-38010i201509-201908
23881BBRACKET, FUEL HOSE
main23881-36080i201509-201908
23891SPACER, FUEL DELIVERY
main23891-36030i201509-201908
7701
9012608047
main90126-08047
9012608062
main90126-08062
9030105013
main90301-05013
9030131017
main90301-31017
9052014004
main90520-14004
9155180665
main91551-80665
9155180835
main91551-80835
9155180840
main91551-80840
9155180845
main91551-80845
9155180865
main91551-80865
91551G0835
main91551-G0835
91551L0830
main91551-L0830
91673A0616
main91673-A0616
9415120841
main94151-20841
9415180800
main94151-80800
9672319010
main96723-19010

43 parts on this diagram · 4 diagrams in section

FUEL INJECTION SYSTEM — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
