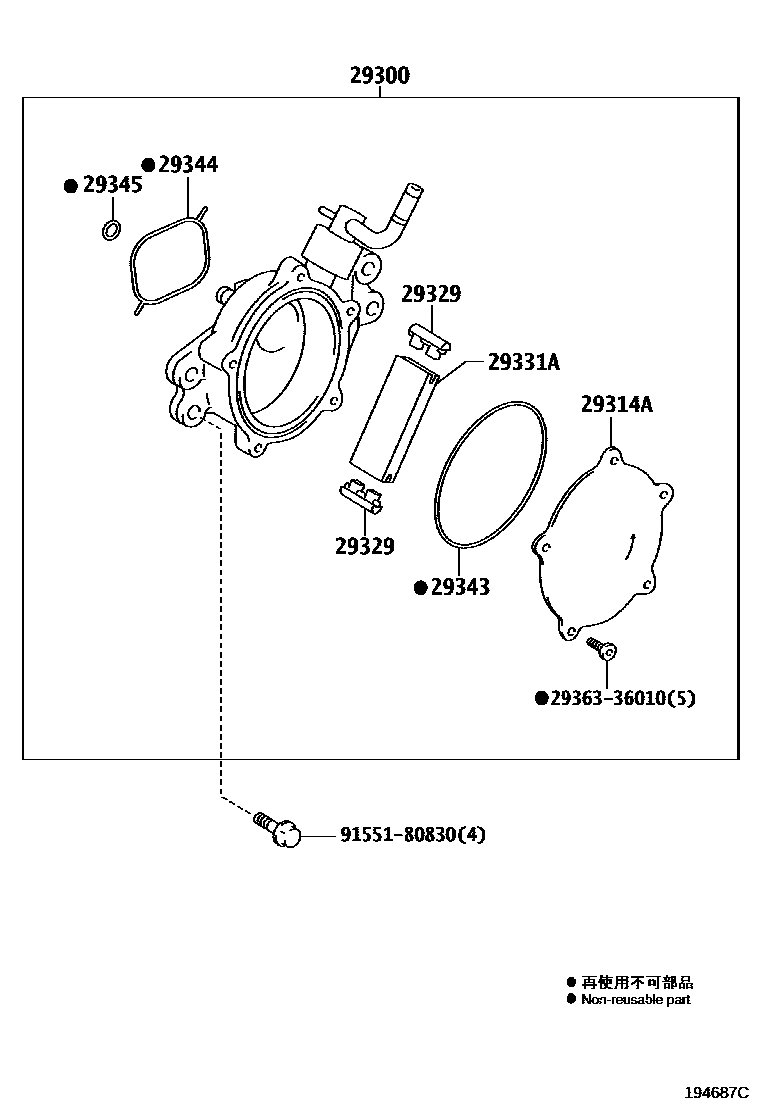

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-31010i2GRFKS..GGL2#201509-201708

sub29300-31011

main29300-31011i2GRFKS..GGL2#201709-201908

main29300-36010i8ARFTS..AGL2#201509-201908

29314ACOVER, END

main29314-31010i2GRFKS..GGL2#201509-201908

main29314-36010i8ARFTS..AGL2#201509-201908

29329CAP, VACUUM PUMP VANE

main29329-37010i8ARFTS,2GRFKS..AGL2#,GGL2#201509-201908

29331AVANE, VACUUM PUMP

main29331-36010i8ARFTS,2GRFKS..AGL2#,GGL2#201509-201912

main29331-36011i8ARFTS..AGL2#201908-202209

29343RING, O VACUUM PUMP, NO.1

main29343-36010i8ARFTS,2GRFKS..AGL2#,GGL2#201509-201908

29344RING, O VACUUM PUMP, NO.2

main29344-22011i2GRFKS..GGL2#201509-201908

main29344-36010i8ARFTS..AGL2#201509-201908

29345RING, O VACUUM PUMP, NO.3

main29345-22011i8ARFTS,2GRFKS..AGL2#,GGL2#201509-201908

2936336010SCREW, HOLLOW VACUUM PUMP

main29363-36010

9155180830

main91551-80830

9 parts on this diagram · 2 diagrams in section
