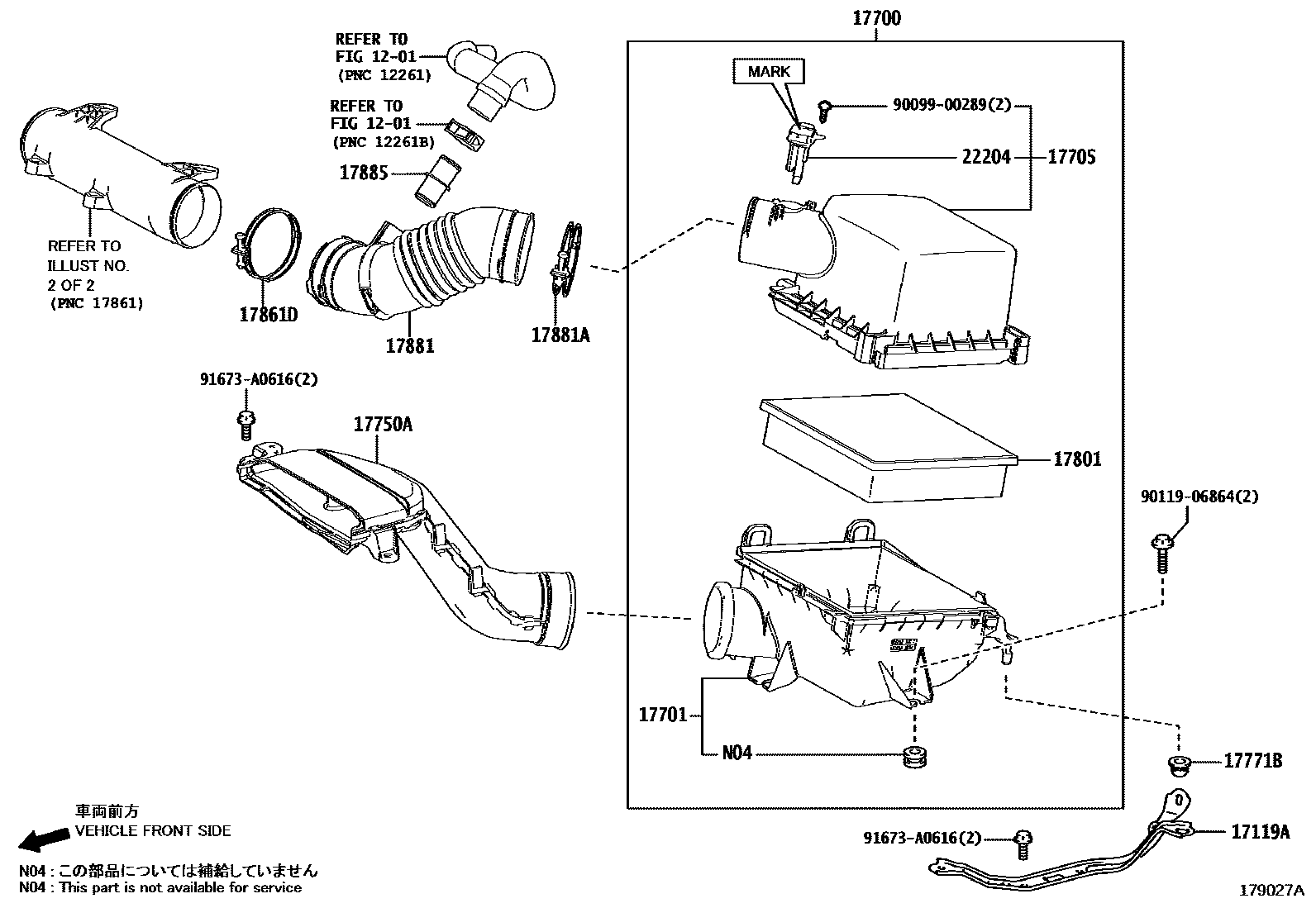

AIR CLEANER

0001 1AIR CLEANER SIDE 0002 1INTERCOOLER SIDE 0003 1 0004 1

1201

17119ABRACKET, AIR CLEANER

main17119-31120i2GRFKS..GGL2#201509-201908

main17119-31130i2GRFXS..GYL25201510-201908

17700CLEANER ASSY, AIR

main17700-31B10i2GRFKS..GGL2#201509-201908

main17700-31B30i2GRFXS..GYL25201510-201908

main17700-36330i8ARFTS..AGL2#..CHI202007

main17700-36400i8ARFTS..AGL2#..GEN201509-202007

17701CASE SUB-ASSY, AIR CLEANER

main17701-31740i2GRFKS..GGL2#201509-201908

main17701-31740i2GRFKS..GGL2#201908

MARK 17701-31740

main17701-36290i8ARFTS..AGL2#201509-201908

17705CAP SUB-ASSY, AIR CLEANER

main17705-31470i2GRFKS..GGL2#201509-201908

main17705-31480i2GRFXS..GYL25201510-201908

main17705-36170i8ARFTS..AGL2#..CHI201509-202007

main17705-36220i8ARFTS..AGL2#..CHI202007

17750AINLET ASSY, AIR CLEANER

main17750-31030i2GRFKS..GGL2#201509-201908

main17750-31050i2GRFXS..GYL25201510-201908

main17750-36060i8ARFTS..AGL2#201509-201908

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90480-18006i8ARFTS..AGL2#201509-201908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0P090i2GRFXS..GYL25201510-201908

(L)

main17801-31131i8ARFTS..AGL2#201509-201908

(J)

main17801-45031i2GRFXS..GYL25201510-201908

(J)

17861CONNECTOR, INTAKE AIR

main17860-36010i8ARFTS..AGL2#201509-201908

17861DCLAMP(FOR INTAKE AIR CONNECTOR)

main90460-90005i8ARFTS..AGL2#201509-201908

17881HOSE, AIR CLEANER, NO.1

main17881-31400i2GRFKS..GGL2#201509-201908

main17881-31410i2GRFXS..GYL25201510-201707

MARK 17881-31410

sub17881-31411

sub23829-31171

main17881-31411i2GRFXS..GYL25201707-201908

MARK 17881-31411

main17881-36190i8ARFTS..AGL2#201509-201908

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i8ARFTS..AGL2#201509-201908

17885PIPE, AIR CLEANER

main17885-36040i8ARFTS..AGL2#201509-201908

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i8ARFTS..AGL2#201509-201908

MARK 22204-0T040

sub22204-28010

main22204-0V010i8ARFTS..AGL2#201509-201908

MARK 22204-0V010

sub22204-0V020

main22204-0V020i8ARFTS..AGL2#201509-201908

MARK 22204-0V020

main22204-28010i8ARFTS..AGL2#201509-201908

MARK 22204-28010

main22204-75040i2GR#..GGL2#,GYL25201509-201908

9009900289

main90099-00289

9011906864

main90119-06864

91673A0616

main91673-A0616

17 parts on this diagram · 4 diagrams in section
