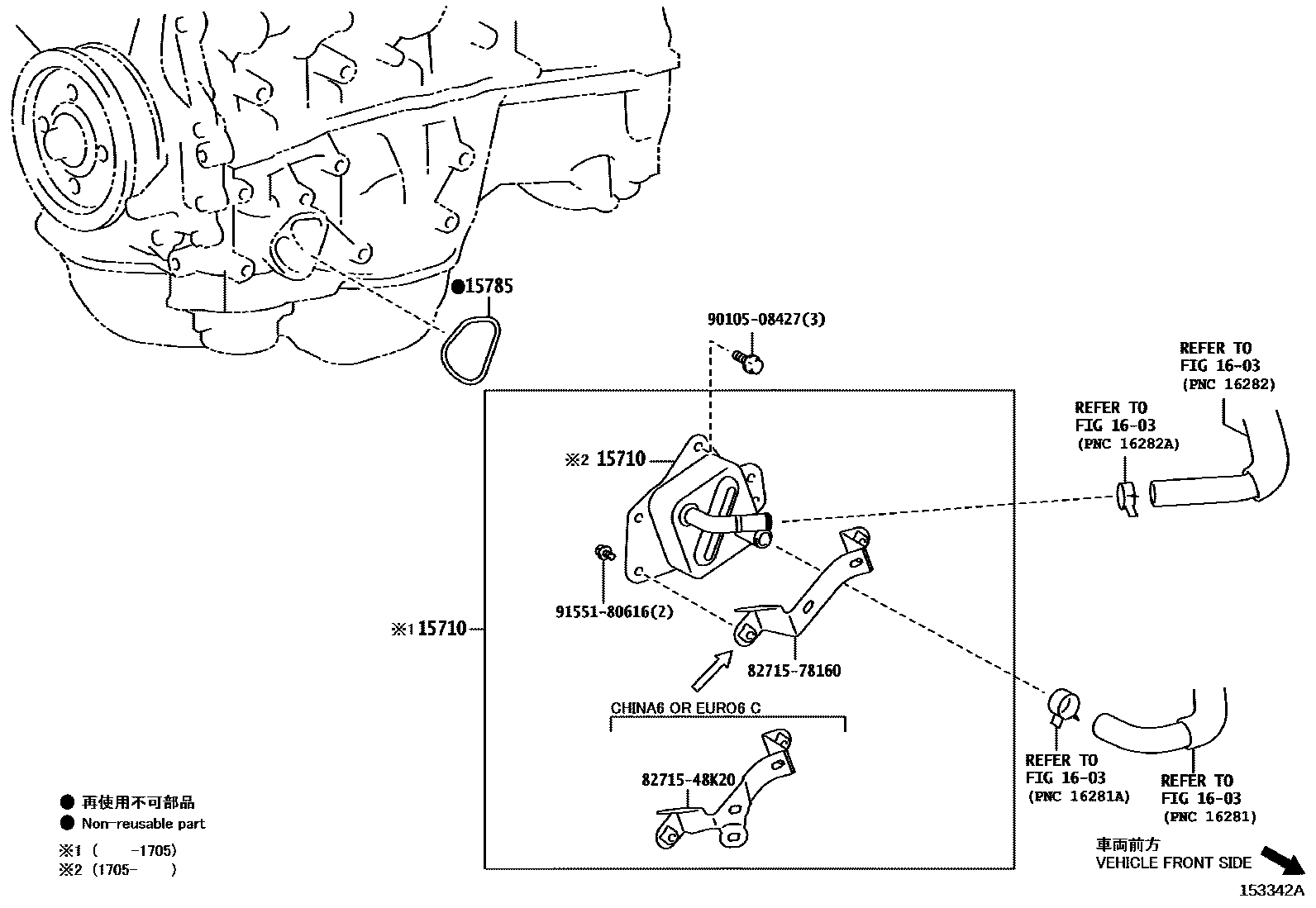

ENGINE OIL COOLER

0001 1 0002 1

15710COOLER ASSY, OIL

main15710-31060i2GRFKS..GGL2#201509-201908

main15710-36030i8ARFTS..AGL2#201509-201705

sub15710-36031

sub82715-78160

sub91551-80616

main15710-36031i8ARFTS..AGL2#201705-201908

15785GASKET, OIL COOLER

main15785-31040i2GRFKS..GGL2#201509-201908

main15785-36020i8ARFTS..AGL2#201509-201602

main15785-36021i8ARFTS..AGL2#201602-201908

1603

8271548K20BRACKET,WIRING HARNESS CLAMP

main82715-48K20

8271578160BRACKET,WIRING HARNESS CLAMP

main82715-78160

9010508427

main90105-08427

9155180616

main91551-80616

7 parts on this diagram · 2 diagrams in section
