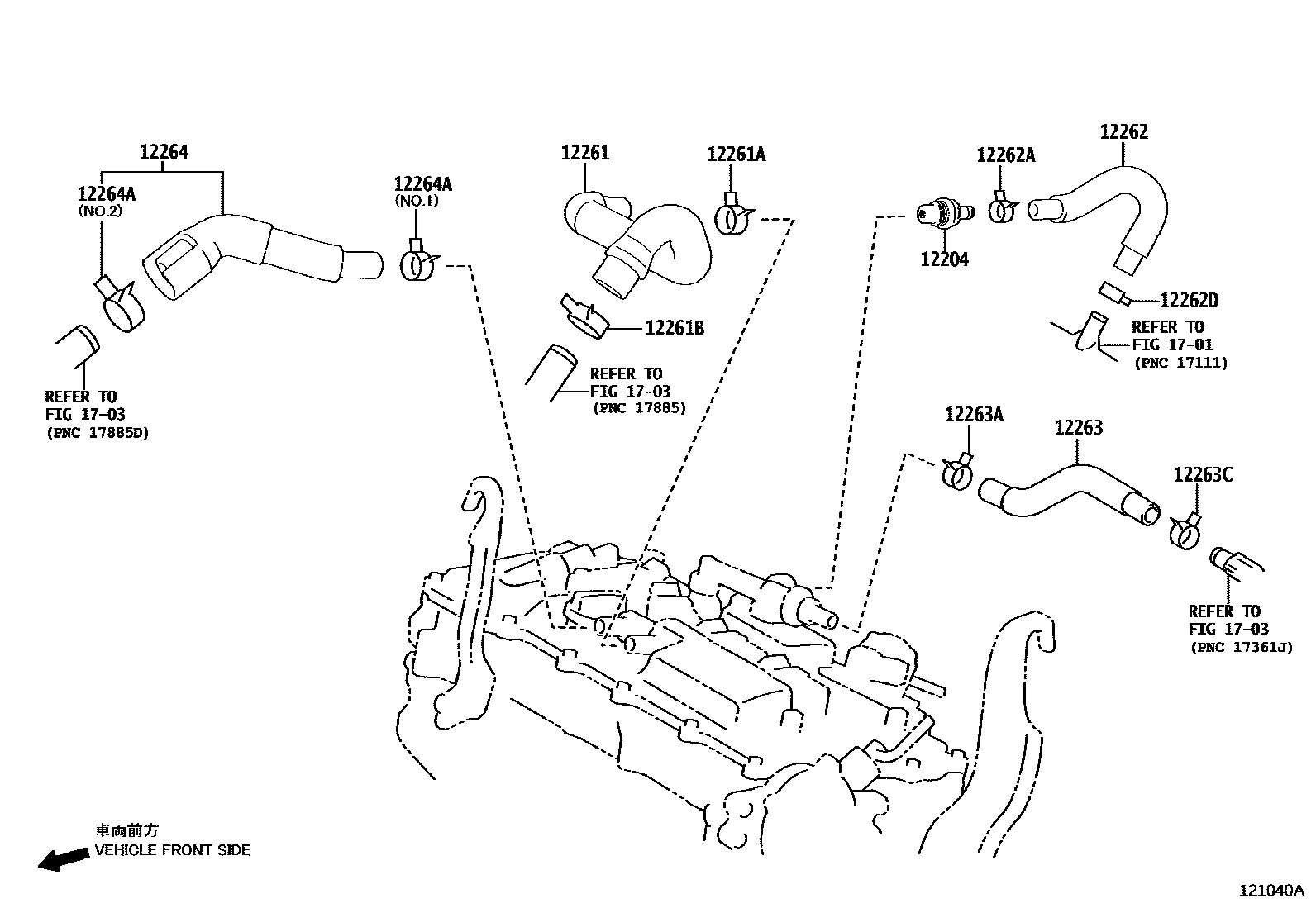

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
TAIWAN SPEC
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1
NO.2
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12262DCLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
12263CCLIP(FOR VENTILATION HOSE)
12264HOSE, VENTILATION, NO.4
12264ACLIP(FOR VENTILATION HOSE)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
1701
1703
14 parts on this diagram · 4 diagrams in section
