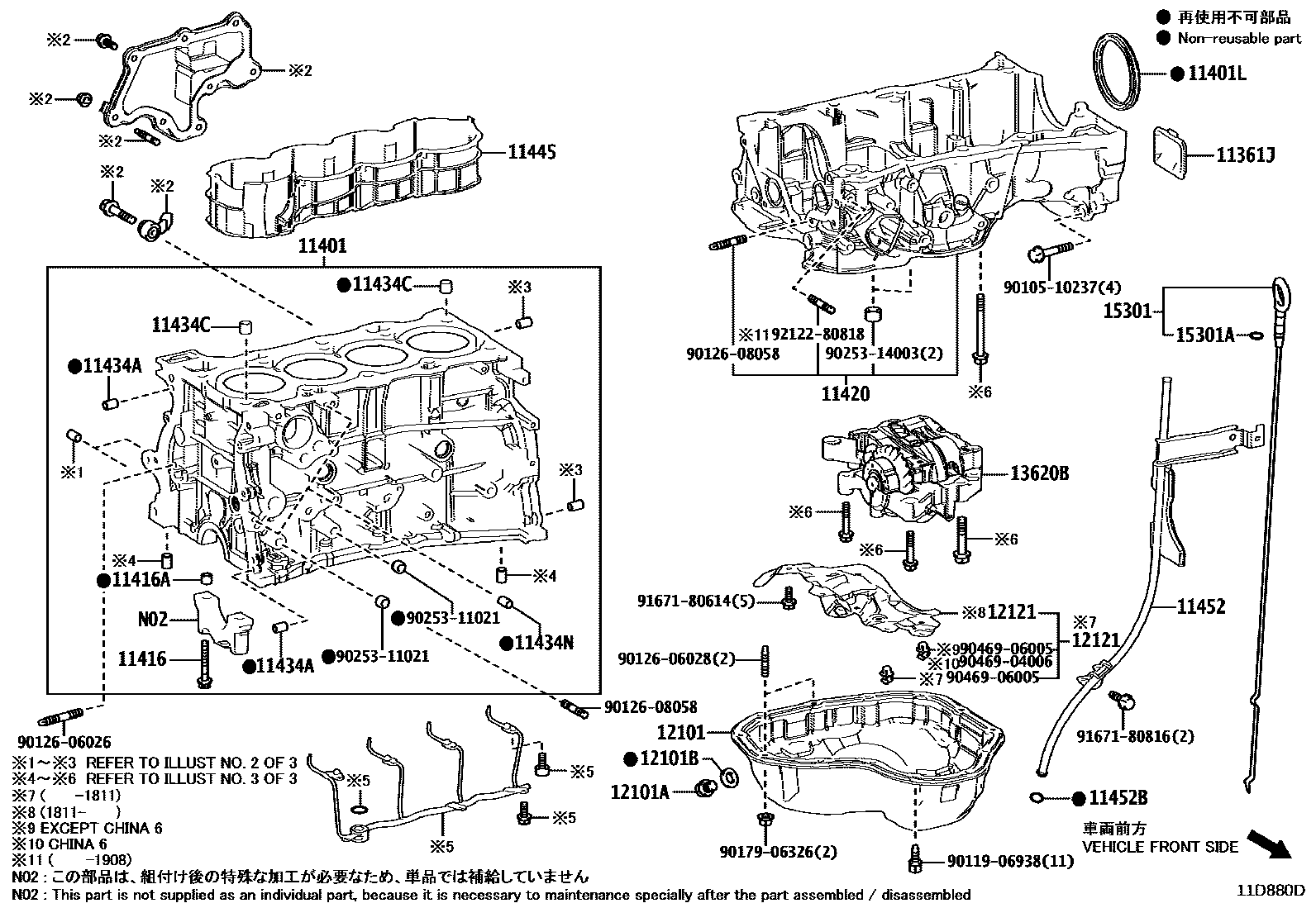

CYLINDER BLOCK

0001 1CYLINDER BLOCK 0002 1FITTING PARTS(1/2) 0003 1FITTING PARTS(2/2) 0004 1 0005 1 0006 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i8ARFTS..AGL2#201509-201908

main11361-31060i2GR#..GGL2#,GYL25201509-201908

11401BLOCK SUB-ASSY, CYLINDER

main11401-80037i2GR#..GGL2#,GYL25201509-202112

sub11401-80062

main11401-80062i2GR#..GGL2#,GYL25202112

main11410-39195i8ARFTS..AGL2#201509-202110

sub11410-39255

main11410-39255i8ARFTS..AGL2#202110

11401LSEAL, ENGINE REAR OIL

main90311-89014i8ARFTS..AGL2#201509-201908

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02153i2GR#..GGL2#,GYL25201509-201908

main90910-02154i8ARFTS..AGL2#201509-201708

main90910-02197i8ARFTS..AGL2#201709-202204

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-14003i8ARFTS..AGL2#201509-202204

11420CRANKCASE ASSY, STIFFENING

main11420-36051i8ARFTS..AGL2#201509-202007

main11420-36080i8ARFTS..AGL2#..CHI201809-202007

BEIJING SPEC

main11420-36080i8ARFTS..AGL2#..LHD..GEN202007

TAIWAN SPEC

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GR#..GGL2#,GYL25201509-201908

L=12,OD=4.0

main90250-06003i8ARFTS..AGL2#201509-201908

L=14,OD=6

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2GR#..GGL2#,GYL25201509-201908

L=18,OD=8

main90253-15001i8ARFTS..AGL2#201509-201908

L=14,OD=15

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i8ARFTS..AGL2#201509-201908

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-31050i2GR#..GGL2#,GYL25201509-201908

main11445-36020i8ARFTS..AGL2#201509-201908

11452GUIDE, OIL LEVEL GAGE

main11452-31140i2GR#..GGL2#,GYL25201509-201908

main11452-36040i8ARFTS..AGL2#201509-201908

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i2GR#..GGL2#,GYL25201509-201908

main96723-19010i8ARFTS..AGL2#201509-201908

12101PAN SUB-ASSY, OIL

main12100-31040i2GRFKS..GGL2#201509-201908

main12100-31050i2GRFXS..GYL25201510-201710

sub12100-31051

main12100-31051i2GRFXS..GYL25201711-201908

main12101-36080i8ARFTS..AGL2#..CHI201509-202007

main12101-36110i8ARFTS..AGL2#..CHI202007

TAIWAN SPEC

main12101-36110i8ARFTS..AGL2#..CHI201809-202007

BEIJING SPEC

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GR#..GGL2#,GYL25201509-201908

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i8ARFTS..AGL2#201509-201908

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31120i2GR#..GGL2#,GYL25201509-201908

main12121-36060i8ARFTS..AGL2#201509-201811

main12121-36061i8ARFTS..AGL2#201811-201908

13620BBALANCER ASSY, ENGINE

main13620-36040i8ARFTS..AGL2#201509-201705

sub13620-36041

main13620-36041i8ARFTS..AGL2#201706-201908

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31070i2GR#..GGL2#,GYL25201509-201908

main15301-36060i8ARFTS..AGL2#201509-201908

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i8ARFTS..AGL2#201509-201908

9010510237

main90105-10237

9011906938

main90119-06938

9012606026

main90126-06026

9012606028

main90126-06028

9012608058

main90126-08058

9017906326

main90179-06326

9025311021

main90253-11021

9025314003

main90253-14003

9046904006

main90469-04006

9046906005

main90469-06005

9167180614

main91671-80614

9167180816

main91671-80816

9212280818

main92122-80818

32 parts on this diagram · 6 diagrams in section
