CYLINDER HEAD

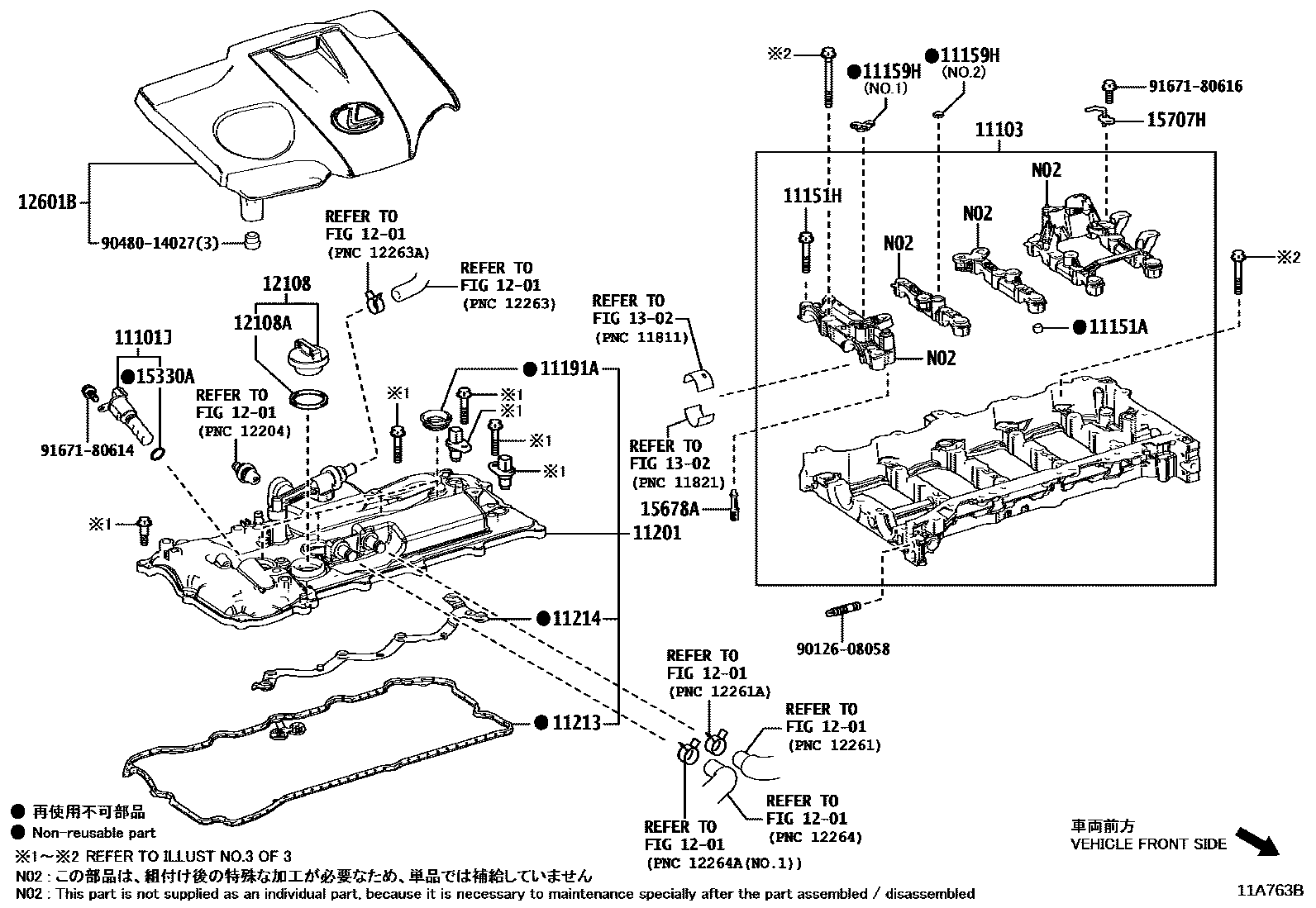

0001 1CYLINDER HEAD COVER & CAMHOUS0003 1CYLINDER HEAD COVER & CAMHOUS0004 1BEIJING SPEC OR TAIWAN SPEC 0006 1CYLINDER HEAD 0007 1FITTING PARTS 0008 1CYLINDER HEAD(LH BANK) 0009 1CYLINDER HEAD(LH BANK) 0010 1CYLINDER HEAD(RH BANK) 0011 1CYLINDER HEAD(RH BANK) 0012 1CYLINDER HEAD COVER 0013 1ENGINE COVER & V BANK COVER

11101HEAD SUB-ASSY, CYLINDER

main11101-39845i8ARFTS..AGL2#201509-201708

sub11101-39846

sub13715-36041

main11101-39846i8ARFTS..AGL2#201708-201808

sub11101-39847

main11101-39847i8ARFTS..AGL2#201808-202003

sub11101-39848

main11101-39848i8ARFTS..AGL2#202003-202110

sub11101-80014

main11101-39865i2GRFXS..GYL25201510-202105

sub11101-39866

main11101-39866i2GRFXS..GYL25202105

sub11101-80015

sub90345-51006

main11101-80002i2GRFKS..GGL2#201509-202105

sub11101-80016

main11101-80014i8ARFTS..AGL2#202110

sub11101-80020

main11101-80016i2GRFKS..GGL2#202105

sub11101-80017

sub90345-51006

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-37010i8ARFTS..AGL2#201509-201908

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-36040i8ARFTS..AGL2#201509-202204

sub11103-36050

11151PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)

main90253-11021i2GR#..GGL2#,GYL25201509-201908

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-13005i8ARFTS..AGL2#201509-202204

L=12.5,OD=8

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009i8ARFTS..AGL2#201509-202204

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-36011i8ARFTS..AGL2#201509-201908

NO.1:REFER ILLUST.

main90430-10024i8ARFTS..AGL2#201509-201908

NO.2:REFER ILLUST.

11191AGASKET(FOR SPARK PLUG TUBE)

main11193-31010i8ARFTS..AGL2#201509-201908

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-31300i2GR#..GGL2#,GYL25201509-201609

sub11201-31301

main11201-31301i2GR#..GGL2#,GYL25201610-201909

sub11201-31302

main11201-31302i2GR#..GGL2#,GYL25201910

main11201-36061i8ARFTS..AGL2#..GEN201509-202007

main11210-36010i8ARFTS..AGL2#..LHD..GEN202007

TAIWAN SPEC

11213GASKET, CYLINDER HEAD COVER

main11213-31070i2GR#..GGL2#,GYL25201509-201909

sub11213-31090

main11213-31090i2GR#..GGL2#,GYL25201910

main11213-36050i8ARFTS..AGL2#201509-201908

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-31050i2GR#..GGL2#,GYL25201509-201909

sub11214-31070

main11214-31070i2GR#..GGL2#,GYL25201910

main11214-36020i8ARFTS..AGL2#201509-201908

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i8ARFTS..AGL2#201509-201908

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i8ARFTS..AGL2#201509-201908

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-31050i2GR#..GGL2#,GYL25201509-201908

main12601-36200i8ARFTS..AGL2#201509-201908

1302

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i8ARFTS..AGL2#201509-201908

15678AFILTER, OIL CONTROL VALVE

main15678-37010i8ARFTS..AGL2#201509-201908

15707HPIPE SUB-ASSY, OIL

main15707-36010i8ARFTS..AGL2#201509-201908

9012608058

main90126-08058

9048014027

main90480-14027

9167180614

main91671-80614

9167180616

main91671-80616

23 parts on this diagram · 11 diagrams in section
