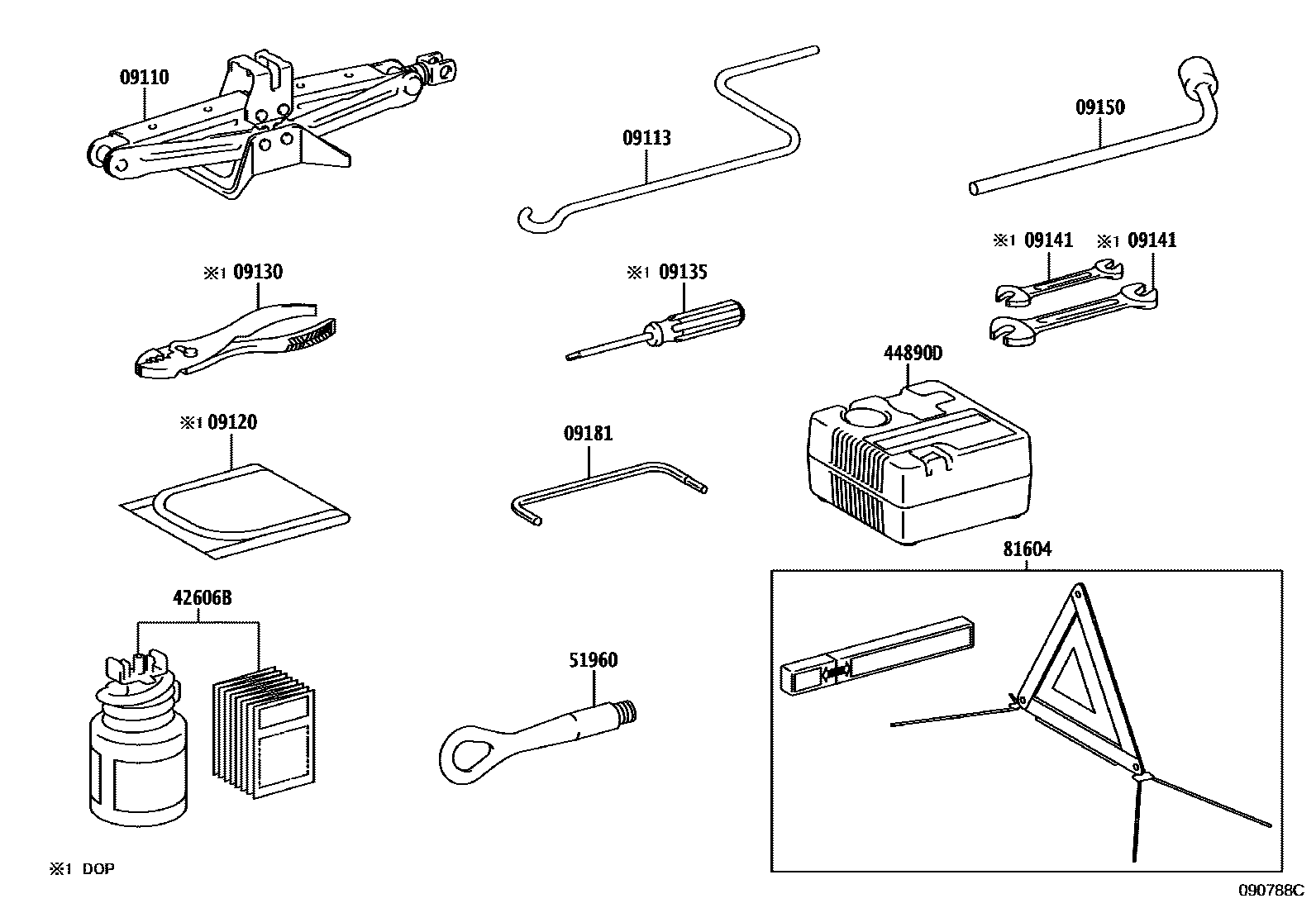

STANDARD TOOL

09110JACK ASSY

main09111-48020iAGL2#,GGL2#,GYL25201509-201603

sub09111-48021

main09111-48021iAGL2#,GGL2#,GYL25201604-202108

main09111-48022iAGL2#,GGL2#,GYL25202109

09113HANDLE, JACK

main09113-33010iAGL2#,GGL2#,GYL25201509-201908

09120BAG, TOOL

main09120-48010

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main09135-50060

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-26010iAGL2#,GGL2#,GYL25201509-201908

09181ROD, PARKING BRAKE RELEASE

main09181-78010iAGL2#,GYL25..CHI201509-201908

42606BREPAIR KIT, TUBELESS TIRE

44890DCOMPRESSOR ASSY, AIR

51960HOOK ASSY, FRONT

main51961-48070iAGL2#,GGL2#,GYL25201509-201908

81604REFLECTOR SET, TRIANGLE

main81604-78010iAGL2#,GYL25..CHI201804-201908

12 parts on this diagram · 1 diagram in section
