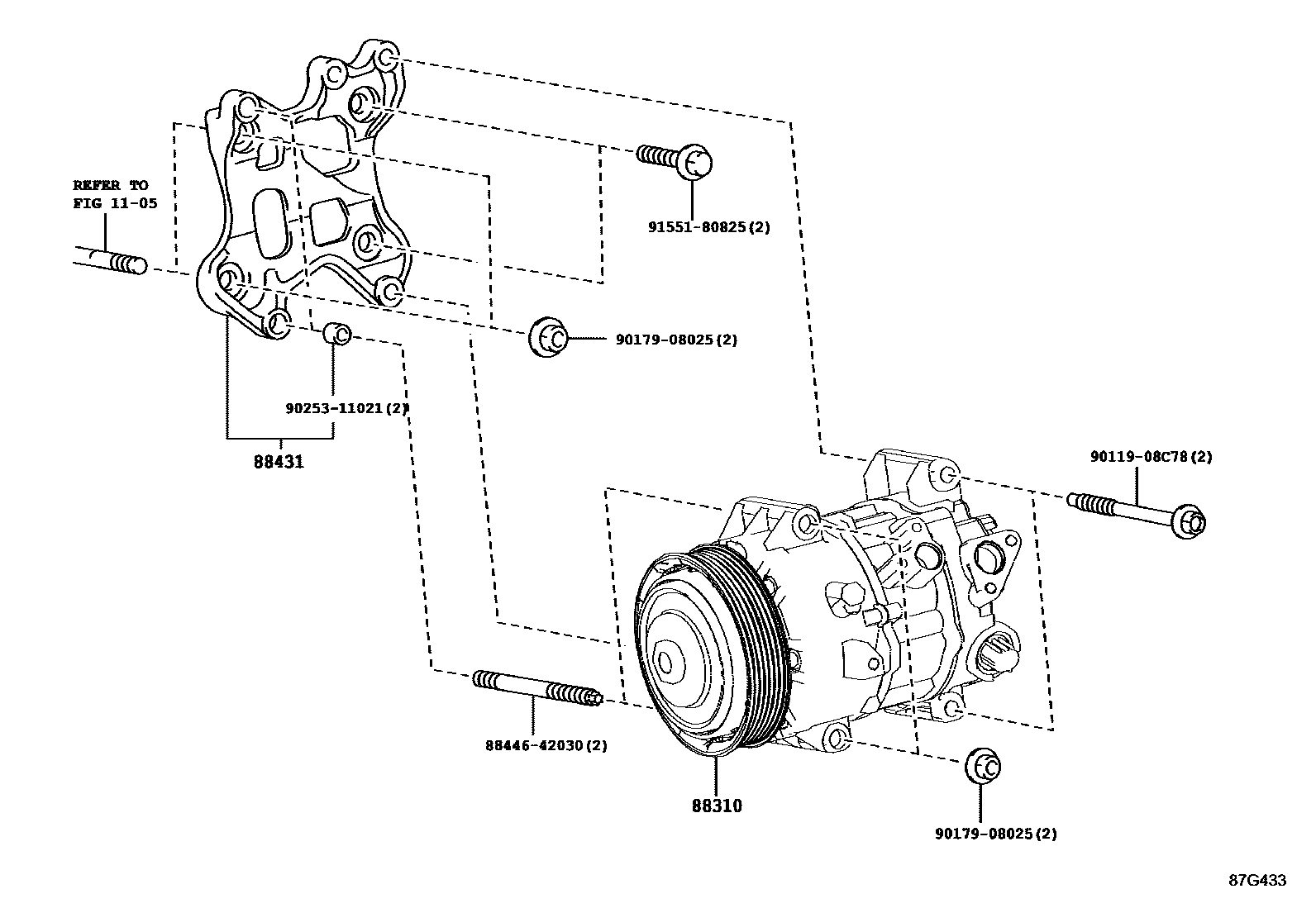

HEATING & AIR CONDITIONING - COMPRESSOR

1105

88310COMPRESSOR ASSY, W/PULLEY

main88310-78011iASU60201705

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36031iASU60201705

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908C78

main90119-08C78

9017908025

main90179-08025

9025311021

main90253-11021

9155180825

main91551-80825

8 parts on this diagram · 1 diagram in section
