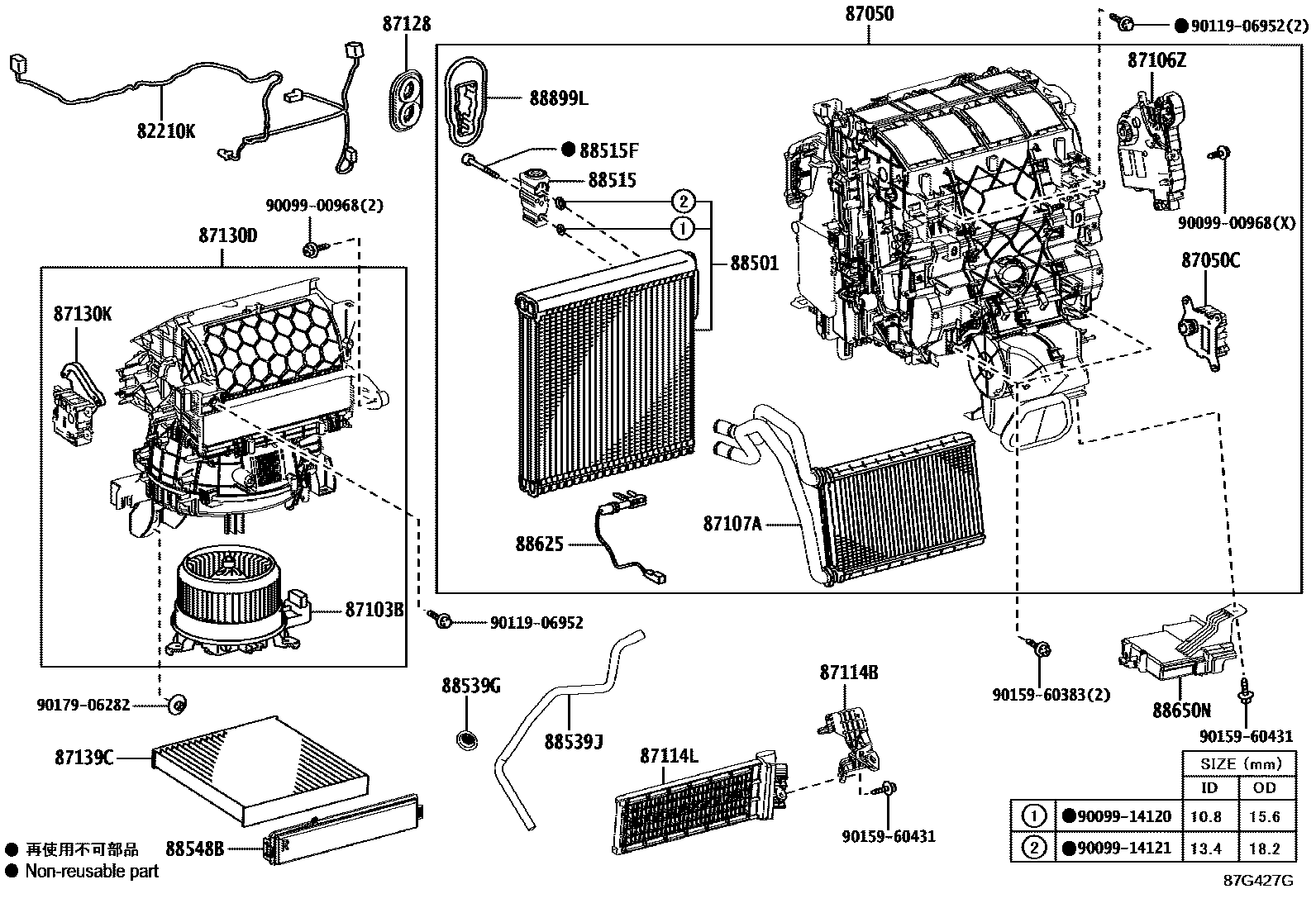

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-48030iASU60201705

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48710iASU60201705

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48180iASU60201705

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-48160iASU60201705

87106ZMODULE SUB-ASSY, SERVO

main87106-48170iASU60201705

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48110iASU60201705

87114BCOVER, HEATER

main87114-48120iASU60201705

87114LCOVER, HEATER, NO.2

main87114-48110iASU60201705

87128GROMMET, HEATER

main87128-42010iASU60201705

87130DBLOWER ASSY

main87130-48310iASU60201705

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-48190iASU60201705

87139CFILTER, CLEAN AIR

main87139-50100iASU60201705

POLLEN DEODORANT

main87139-52040iASU60201705

POLLEN FILTER,OE PART

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-78030iASU60201705-201712

sub88501-78060

main88501-78060iASU60201801

88515VALVE, COOLER EXPANSION

main88515-48120iASU60201705

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iASU60201705

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iASU60201705

88539JHOSE, DRAIN COOLER

main88539-48070iASU60201705

88548BCASE, AIR FILTER

main88548-42010iASU60201705

88625THERMISTOR, COOLER, NO.1

main88620-28060iASU60201705

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-48B40iASU60..G201705

main88650-48B50iASU60..M201705

88899LPARTS, COOLING UNIT

main88899-78020iASU60201705

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

28 parts on this diagram · 1 diagram in section
