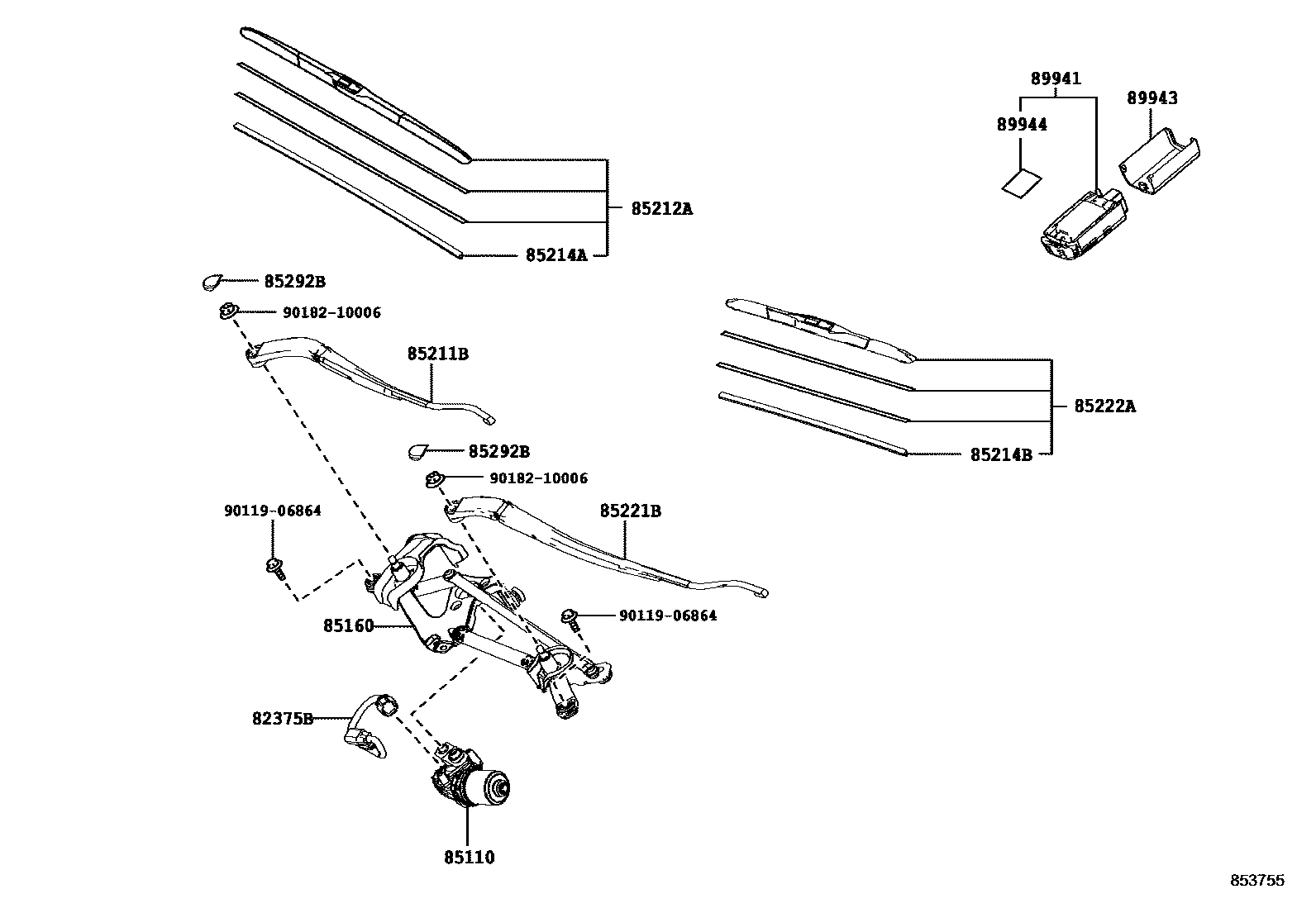

WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-48020iASU60201705

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42201iASU60201705

85160LINK ASSY, WINDSHIELD WIPER

main85150-48210iASU60201705

85211BARM, FRONT WIPER, RH

main85211-48180iASU60201705

85212ABLADE, FR WIPER, RH

main85212-52250iASU60201705

85214ARUBBER, WIPER, RH

main85214-52110iASU60201705

85214BRUBBER, WIPER, LH

main85214-28090iASU60201705

85221BARM, FRONT WIPER, LH

main85221-48181iASU60201705

85222ABLADE, FR WIPER, LH

main85222-42130iASU60201705

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iASU60201705

89941SENSOR, RAIN

main89941-48080iASU60..G201705

89943COVER, RAIN SENSOR

main89943-48030iASU60..G201705

89944TAPE, RAIN SENSOR

main89944-48010iASU60..G201705

9011906864

main90119-06864

9018210006

main90182-10006

15 parts on this diagram · 1 diagram in section
