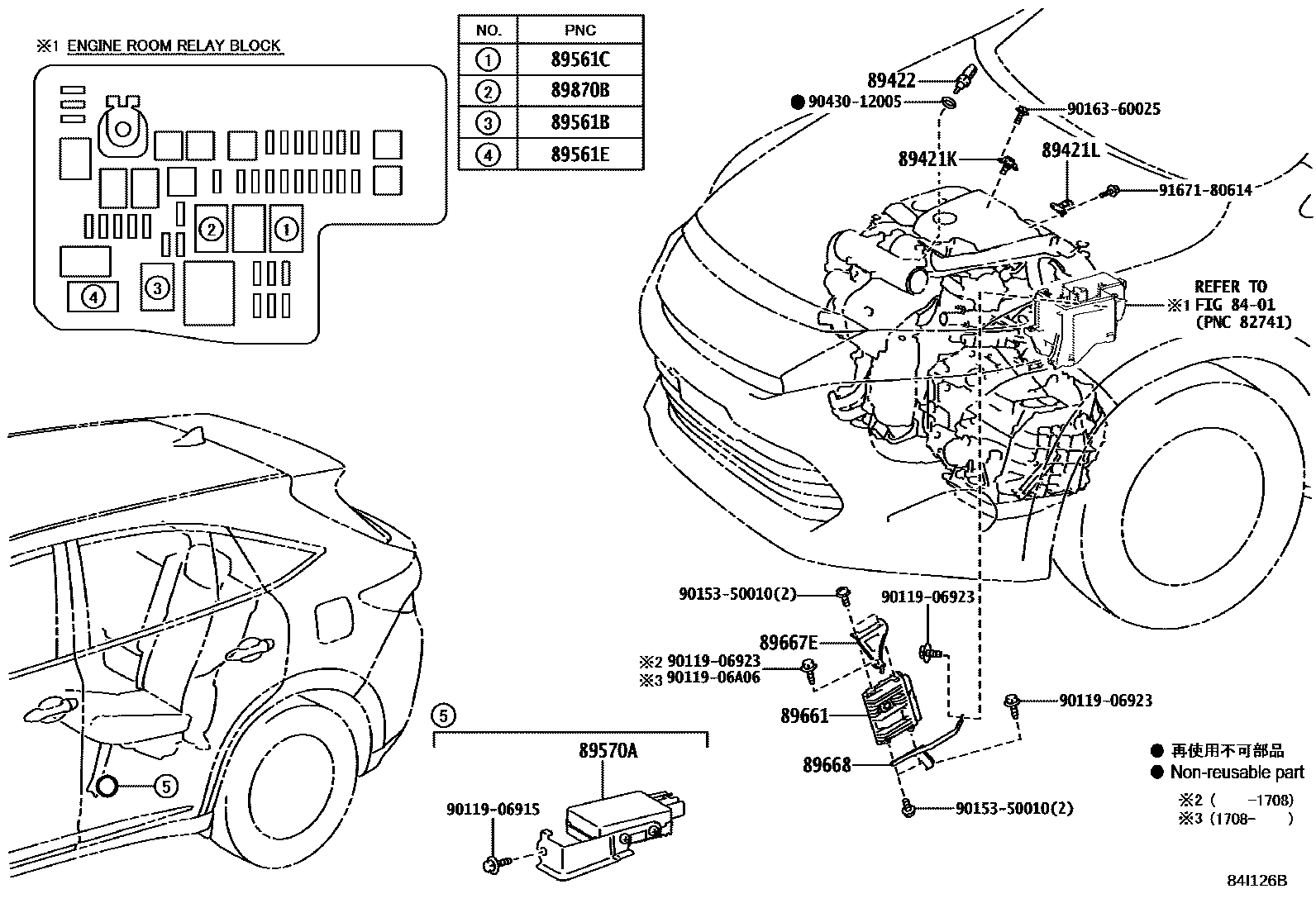

ELECTRONIC FUEL INJECTION SYSTEM
8401
89421KSENSOR, TURBO PRESSURE, NO.1
89421LSENSOR, TURBO PRESSURE, NO.2
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
89561ERELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
89661COMPUTER, ENGINE CONTROL
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89870BRELAY, ELECTRONIC DRIVER UNIT
9011906915
main90119-06915
9011906923
main90119-06923
9011906A06
main90119-06A06
9015350010
main90153-50010
9016360025
main90163-60025
9043012005
main90430-12005
9167180614
main91671-80614
19 parts on this diagram · 1 diagram in section
