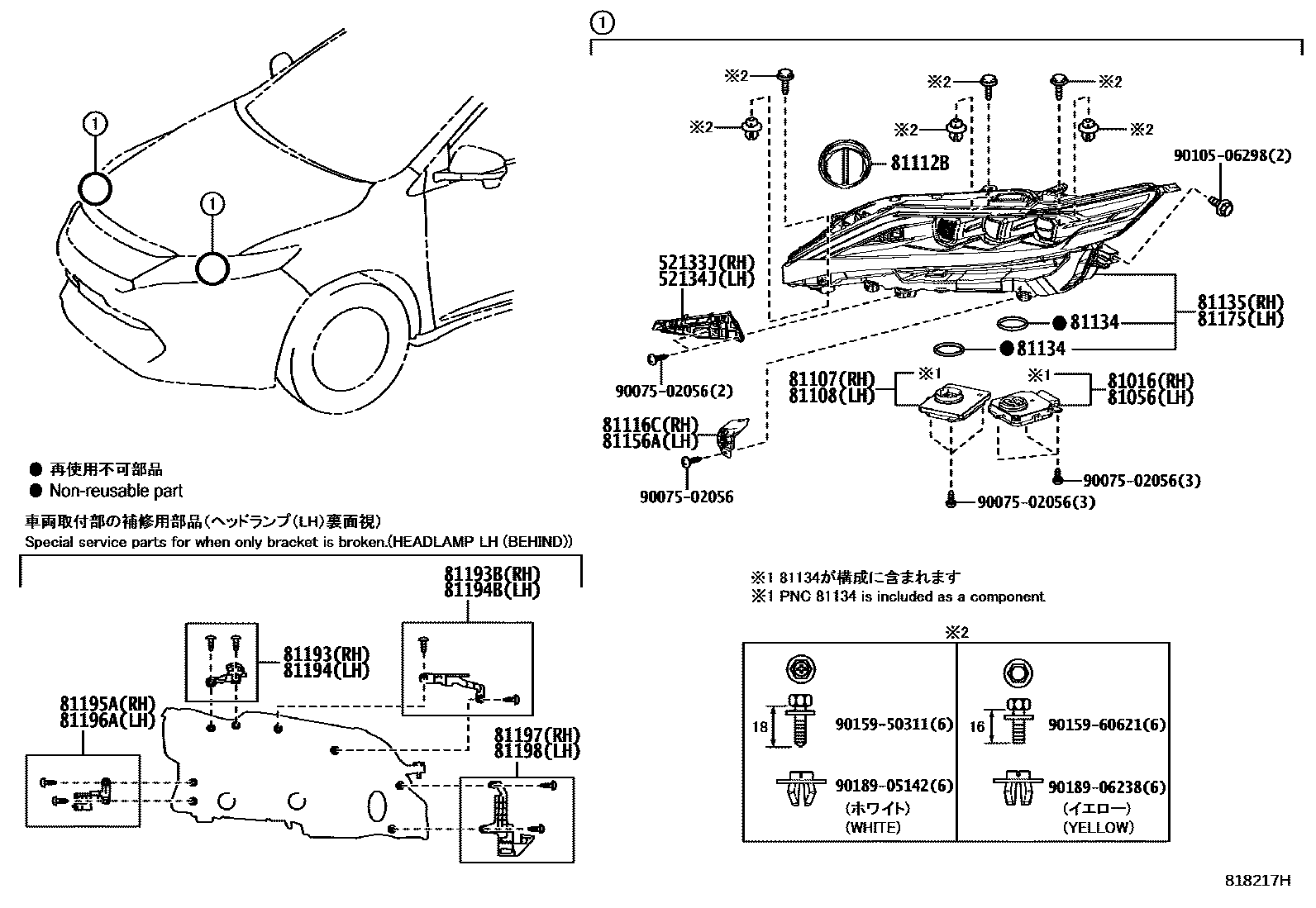

HEADLAMP

52133JREINFORCEMENT, FRONT BUMPER BAR, RH

main52133-48060iASU60201705

52134JREINFORCEMENT, FRONT BUMPER BAR, LH

main52134-48070iASU60201705

81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1

main81016-48E30iASU60201705

81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1

main81056-48E30iASU60201705

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-47560iASU60201705

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81108-47560iASU60201705

81112BRING, COVER

main81112-47380iASU60201705

81116CBRACKET, HEADLAMP, RH

main81116-48E30iASU60201705

81134GASKET, HEADLAMP

main90075-23003iASU60201705

81135UNIT ASSY, HEADLAMP, RH

main81145-48E40iASU60201705

81156ABRACKET, HEADLAMP, LH

main81156-48E30iASU60201705

81175UNIT ASSY, HEADLAMP, LH

main81185-48E40iASU60201705

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48130iASU60201705

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81194-48130iASU60201705

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81193-48140iASU60201705

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-48140iASU60201705

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-48060iASU60201705

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-48070iASU60201705

81197BRACKET, HEADLAMP, LOWER RH

main81197-48040iASU60201705

81198BRACKET, HEADLAMP, LWR LH

main81198-48040iASU60201705

9007502056

main90075-02056

9010506298

main90105-06298

9015950311

main90159-50311

9015960621

main90159-60621

9018905142

main90189-05142

9018906238

main90189-06238

26 parts on this diagram · 1 diagram in section
