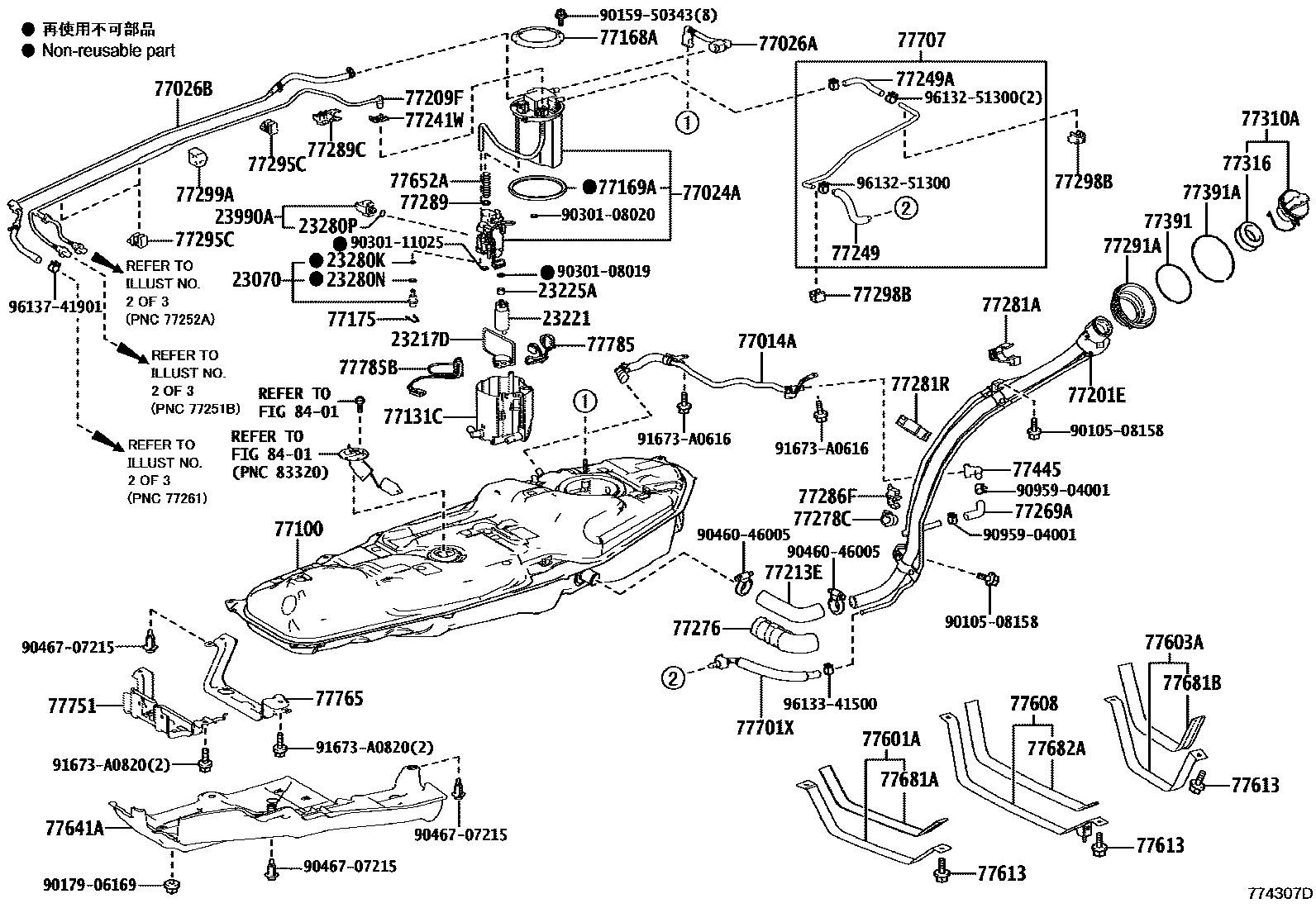

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23280PRING, O(FOR FUEL PRESSURE REGULATOR), NO.3
23990AVALVE ASSY, PRESSURE DISCHARGE
77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
77249HOSE, FUEL EMISSION
77249AHOSE, FUEL EMISSION
77269AHOSE, FUEL TANK BREATHER
77276PROTECTOR, FUEL HOSE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77286FCLAMP, FUEL TUBE, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77291ASHIELD, FUEL TANK FILLER PIPE
77295CGROMMET, FUEL TUBE
77298BCLAMP, FUEL TUBE, NO.4
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77445CONNECTOR, FUEL TANK VENT, NO.2
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77608BAND SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681ASEAT, FUEL TANK BAND
77681BSEAT, FUEL TANK BAND
77682ASEAT, FUEL TANK BAND, NO.2
77701XHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77751BRACKET, CHARCOAL CANISTER BASE
77765PROTECTOR, CHARCOAL CANISTER
77785HARNESS, FUEL PUMP
77785BHARNESS, FUEL PUMP, NO.2
8401
9010508158
9015950343
9017906169
9030108019
9030108020
9030111025
9046046005
9046707215
9095904001
91673A0616
91673A0820
9613251300
9613341500
9613741901
70 parts on this diagram · 3 diagrams in section
