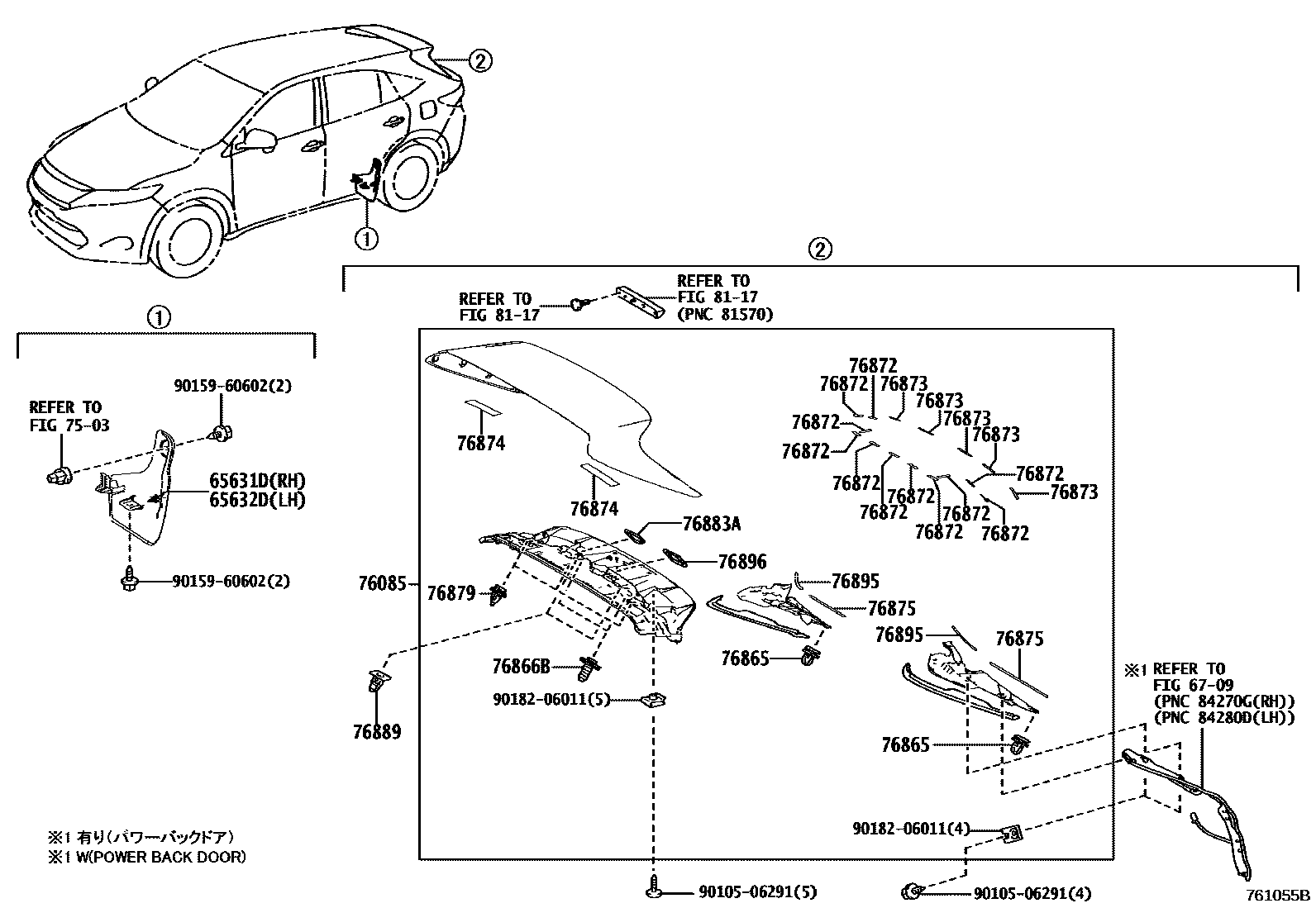

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-48010iASU60201705

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-48010iASU60201705

6709

7503

76085SPOILER SUB-ASSY, REAR

main76085-48900-C0iASU60201705

BLACK,070 ,1F7 ,202 ,220 ,3Q3 ,8W7

76865RETAINER, REAR SPOILER, NO.1

main76865-35030iASU60201705

76866BRETAINER, REAR SPOILER, NO.2

main76866-48010iASU60201705

76872PROTECTOR, REAR SPOILER, NO.1

main76872-48020iASU60201705

76873PROTECTOR, REAR SPOILER, NO.2

main76873-48030iASU60201705

76874PROTECTOR, REAR SPOILER, NO.3

main76874-48020iASU60201705

76875PROTECTOR, REAR SPOILER, NO.4

main76875-48040iASU60201705

76879CLIP, REAR SPOILER, NO.1

main75819-68010iASU60201705

76883APROTECTOR, REAR SOPILER, NO.7

main76883-48010iASU60201705

76889CLIP, REAR SPOILER, NO.2

main76889-44020iASU60201705

76895PROTECTOR, REAR SPOILER, NO.5

main76895-48010iASU60201705

76896PROTECTOR, REAR SPOILER, NO.6

main76896-48010iASU60201705

8117

9010506291

main90105-06291

9015960602

main90159-60602

9018206011

main90182-06011

20 parts on this diagram · 1 diagram in section
