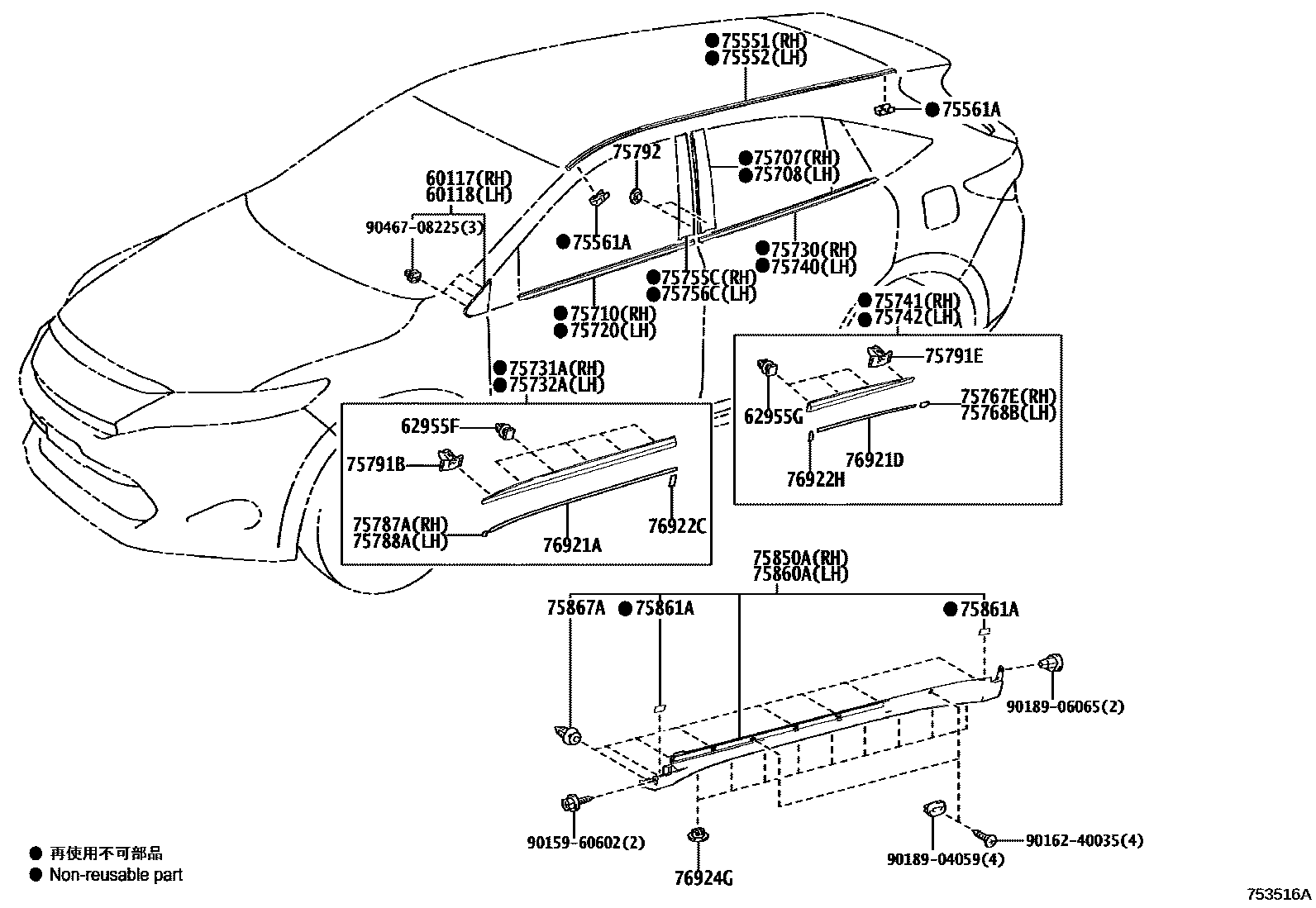

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
62955FRETAINER, QUARTER VENT LOUVER
62955GRETAINER, QUARTER VENT LOUVER
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
PLATED
75732AMOULDING, FRONT DOOR, OUTSIDE LH
PLATED
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
PLATED
75742MOULDING, REAR DOOR, OUTSIDE LH
PLATED
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75767EPAD, REAR DOOR MOULDING, RH
75768BPAD, REAR DOOR MOULDING, LH
75787APAD, FRONT DOOR OUTSIDE MOULDING, RH
75788APAD, FRONT DOOR OUTSIDE MOULDING, LH
75791BCLIP, BELT MOULDING SIDE
75791ECLIP, BELT MOULDING SIDE
75792CLIP, DOOR WINDOW FRAME MOULDING
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75867ACLIP, ROCKER PANEL MOULDING
76921APROTECTOR, SIDE MUDGUARD, NO.1
76921DPROTECTOR, SIDE MUDGUARD, NO.1
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76922HPROTECTOR, SIDE MUDGUARD, NO.2
76924GRETAINER, ROCKER PANEL MOULDING
9015960602
main90159-60602
9016240035
main90162-40035
9018904059
main90189-04059
9018906065
main90189-06065
9046708225
main90467-08225
40 parts on this diagram · 1 diagram in section
