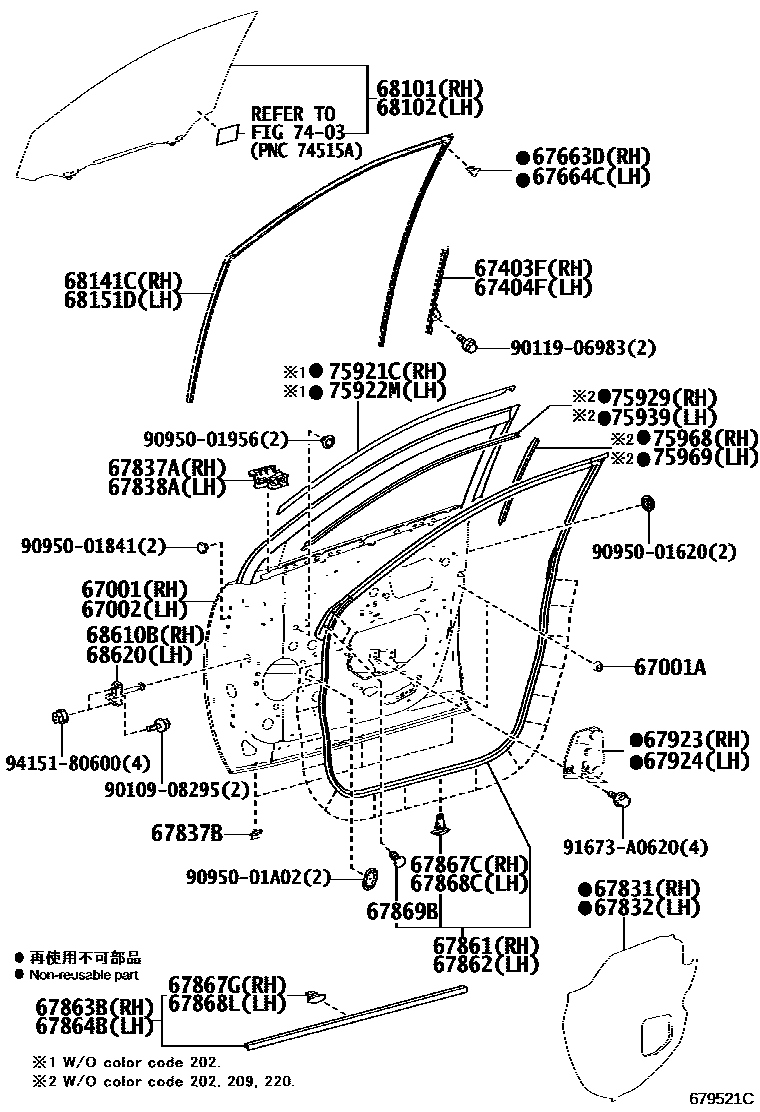

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
67838ASEAL, FRONT DOOR VENT, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
7403
75921CTAPE, BLACK OUT, NO.1 RH
0 OR 1PIECE,REF.ILL.
75922MTAPE, BLACK OUT, NO.1 LH
0 OR 1PIECE,REF.ILL.
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
0 OR 1PIECE,REF.ILL.
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
0 OR 1PIECE,REF.ILL.
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
0 OR 1PIECE,REF.ILL.
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
0 OR 1PIECE,REF.ILL.
9010908295
main90109-08295
9011906983
main90119-06983
9095001620
main90950-01620
9095001841
main90950-01841
9095001956
main90950-01956
9095001A02
main90950-01A02
91673A0620
main91673-A0620
9415180600
main94151-80600
44 parts on this diagram · 2 diagrams in section
