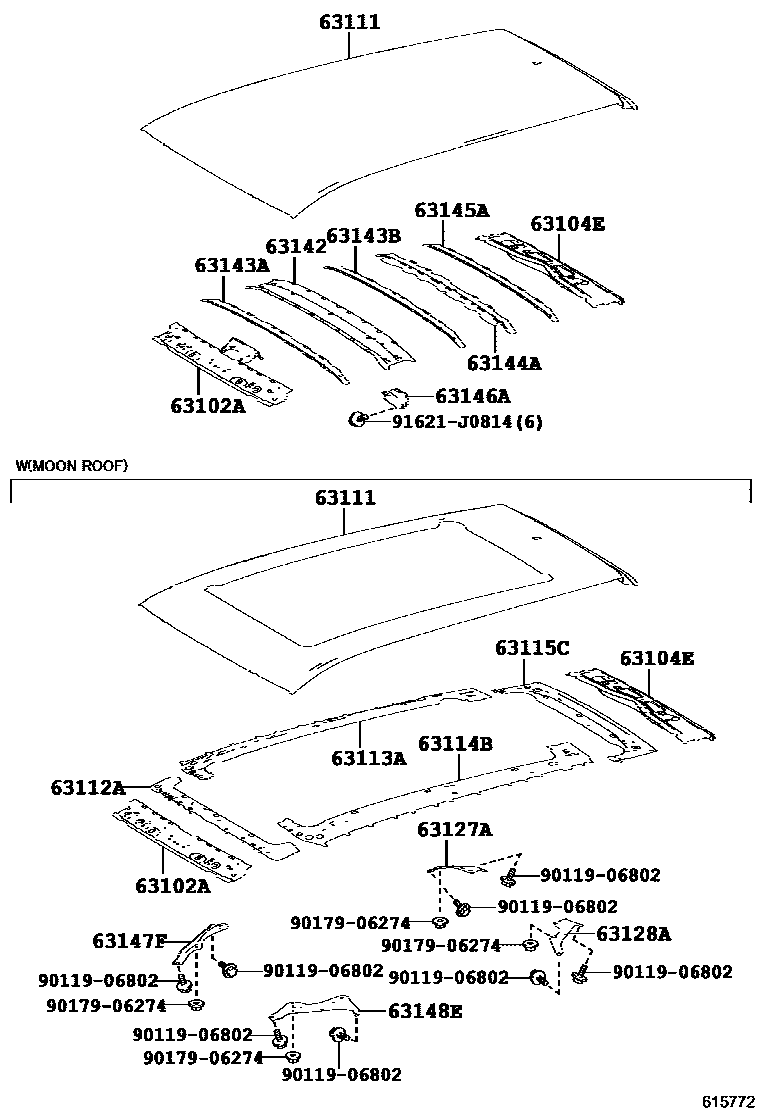

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF(MOON)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48200iASU60..M¥9,400201705

main63102-48210iASU60..G¥8,600201705

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-48030iASU60¥9,500201705

63111PANEL, ROOF

main63111-48190iASU60..M¥55,800201705

main63111-48220iASU60..G¥55,800201705

63112APANEL, ROOF, NO.2

main63112-48020iASU60..G¥9,000201705

63113APANEL, ROOF, NO.3

main63113-48020iASU60..G¥11,300201705

63114BPANEL, ROOF, NO.4

main63114-48010iASU60..G¥11,300201705

63115CPANEL, ROOF, NO.4

main63115-48010iASU60..G¥11,300201705

63127AEXTENSION, ROOF PANEL, REAR RH

main63127-48040iASU60..G¥2,000201705

63128AEXTENSION, ROOF PANEL, REAR LH

main63128-48020iASU60..G¥1,780201705

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-48070iASU60..M¥8,400201705

63143AREINFORCEMENT, ROOF PANEL

main63143-48090iASU60..M¥1,940201705

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63123-48050iASU60..M¥2,640201705

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48080iASU60..M¥2,930201705

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63149-48040iASU60..M¥2,680201705

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-48010iASU60..M¥1,190201705

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-48010iASU60..G¥2,390201705

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63148-48040iASU60..G¥2,390201705

9011906802

main90119-06802¥60

9017906274

main90179-06274¥70

91621J0814

main91621-J0814¥60

20 parts on this diagram · 2 diagrams in section
