MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-48040iASU60201705

55214DCLIP(FOR DASH PANEL INSULATOR PAD)

main63399-26050-B2iASU60201705

GRAY

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-42110iASU60201705

58435ESILENCER, FRONT FLOOR, CENTER

main58435-48010iASU60201705

58435JCLIP(FOR FRONT FLOOR SILENCER)

main90467-05164-C7iASU60201705

BLACK

sub90467-05164

58510DCARPET ASSY, FLOOR, FRONT

main58510-48590-C0iASU60201705

BLACK,TRIM2#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C7iASU60201705

BLACK,TRIM2#

sub90467-05164

58514CMAT, FROOR, REAR

main58514-48010iASU60201705

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09050iASU60201705

58561CSILENCER, FRONT FLOOR, NO.1

main58561-48010iASU60201705

58563QSILENCER, FRONT FLOOR, NO.3

main58563-48010iASU60201705

58694BPLATE, MAT SET, UPPER

main58694-76010iASU60201705

58698CPLATE, MAT SET, LOWER

main58698-76010iASU60201705

64726SCLIP, LUGGAGE TRIM, REAR

main64726-26010-C1iASU60201705-201903

BLACK

main64726-26010-C2iASU60201903

BLACK

64779CSTOPPER, SPARE WHEEL COVER

main64779-26010iASU60201705

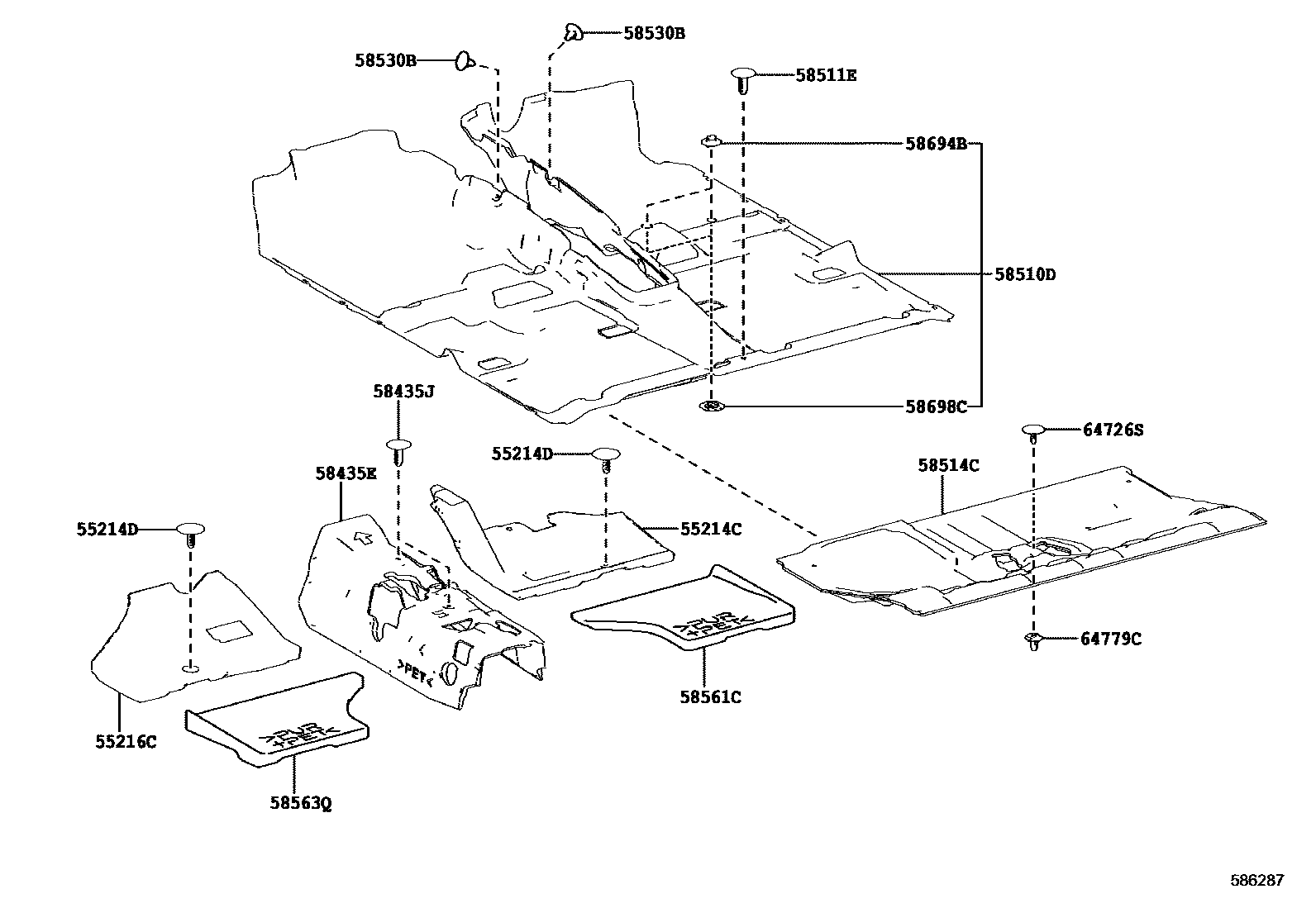

15 parts on this diagram · 1 diagram in section
