FLOOR INSULATOR

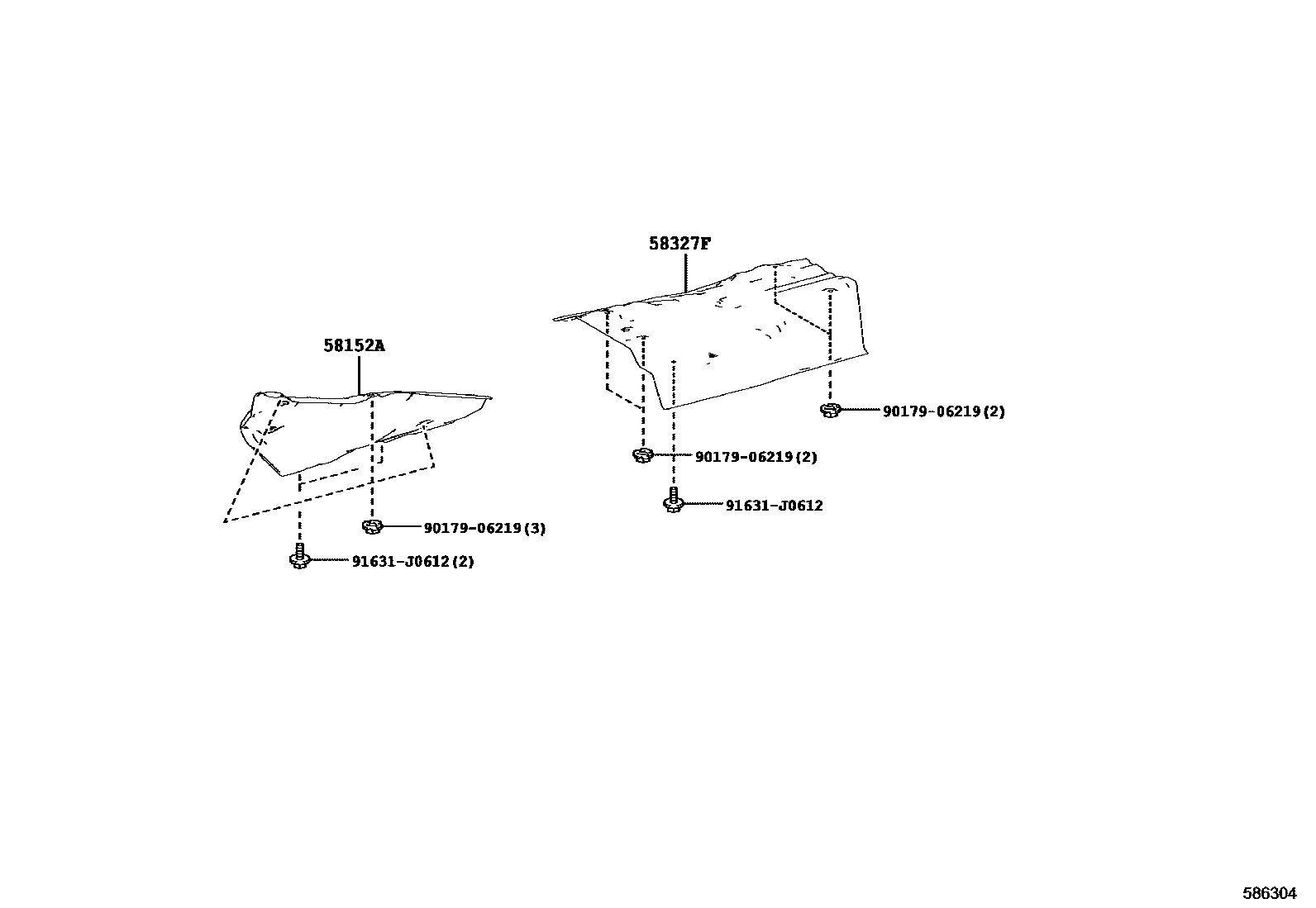

Parts diagram

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-42030i201705

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-42020i201705

9017906219

main90179-06219

91631J0612

main91631-J0612

4 parts on this diagram · 1 diagram in section
