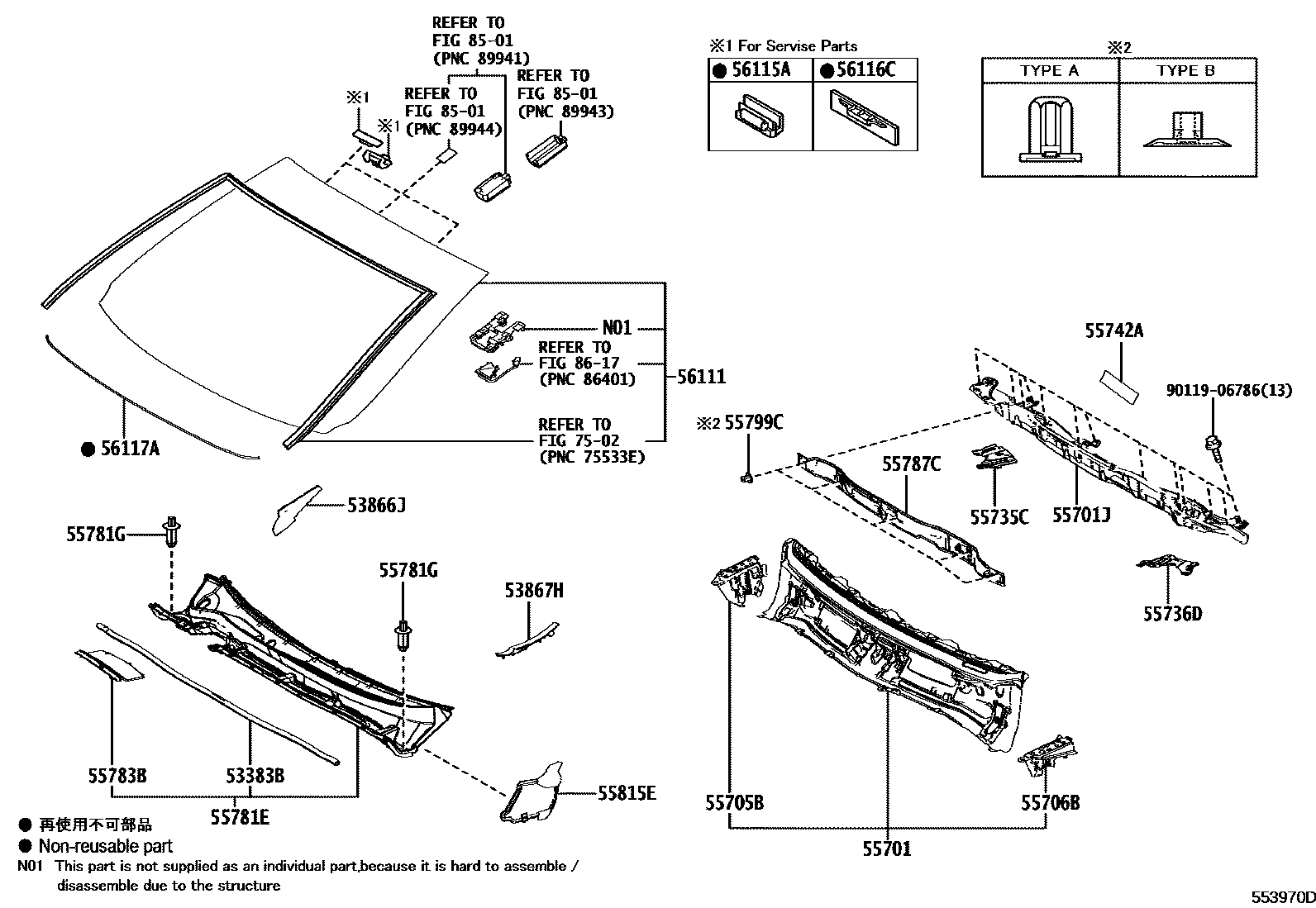

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48060iASU60¥900201705

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-48080iASU60¥1,260201705

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-48090iASU60¥1,240201705

55701PANEL SUB-ASSY, COWL

main55700-42490iASU60¥23,100201705

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-42410iASU60¥18,800201705

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-42070iASU60¥3,260201705

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-42050iASU60¥3,260201705

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-42020iASU60¥2,140201705

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-42040iASU60¥1,920201705

55742ASHEET, COWL TOP INSULATOR

main55742-42050iASU60¥430201705

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-48150iASU60¥13,700201705

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7iASU60201705

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-48030iASU60¥1,910201705

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-48050iASU60¥4,080201705

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-06158-C0iASU60201705

BLACK,TYPE A:REFER ILLUST.

main90467-06188iASU60¥160201705

TYPE B:REFER ILLUST.

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-42030iASU60¥890201705

56111GLASS, WINDSHIELD

main56101-48C10iASU60..M¥146,000201705-201711

sub56101-48F90¥146,000

main56101-48C30iASU60..G¥149,000201705-201711

sub56101-48G10¥150,000

main56101-48F90iASU60..M¥146,000201712

main56101-48G10iASU60..G¥150,000201712

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iASU60¥130201705

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iASU60¥120201705

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iASU60¥870201705

*D,L=1307

7502

8501

8617

9011906786

main90119-06786¥90

24 parts on this diagram · 1 diagram in section
