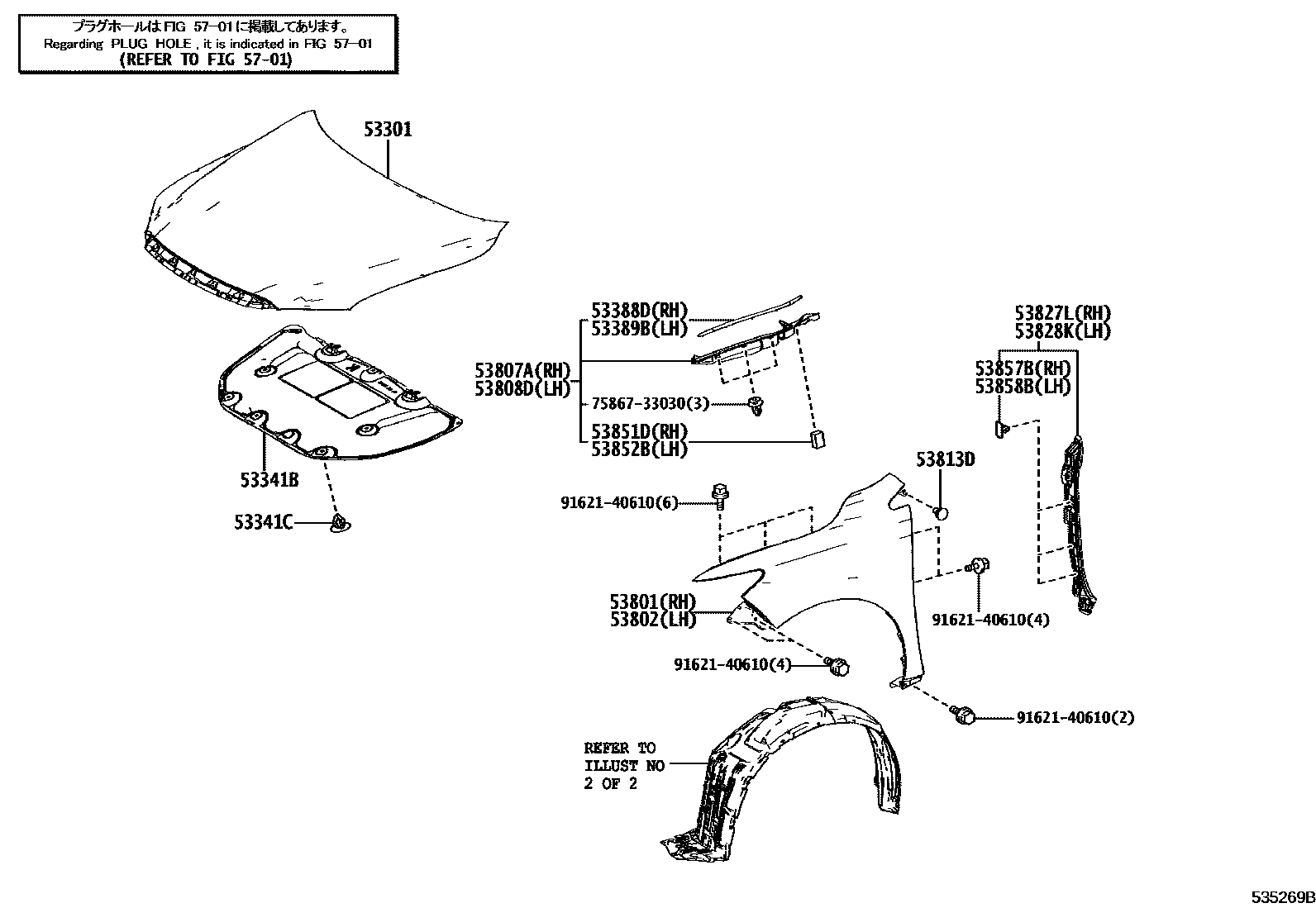

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-48170iASU60201705

53341BINSULATOR, HOOD

main53341-48110iASU60201705

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iASU60201705

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-48060iASU60201705

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-48020iASU60201705

53801FENDER SUB-ASSY, FRONT RH

main53811-48210iASU60201705

53802FENDER SUB-ASSY, FRONT LH

main53812-48190iASU60201705

53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH

main53807-48050iASU60201705

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-48050iASU60201705

53813DEXTENSION, FRONT FENDER

main53813-48011iASU60201705

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-48020iASU60201705

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-48050iASU60201705

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-48060iASU60201705

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53851-48060iASU60201705

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iASU60201705

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iASU60201705

5701

7586733030MOULDING, FRONT PANEL

main75867-33030

9162140610

main91621-40610

19 parts on this diagram · 2 diagrams in section
