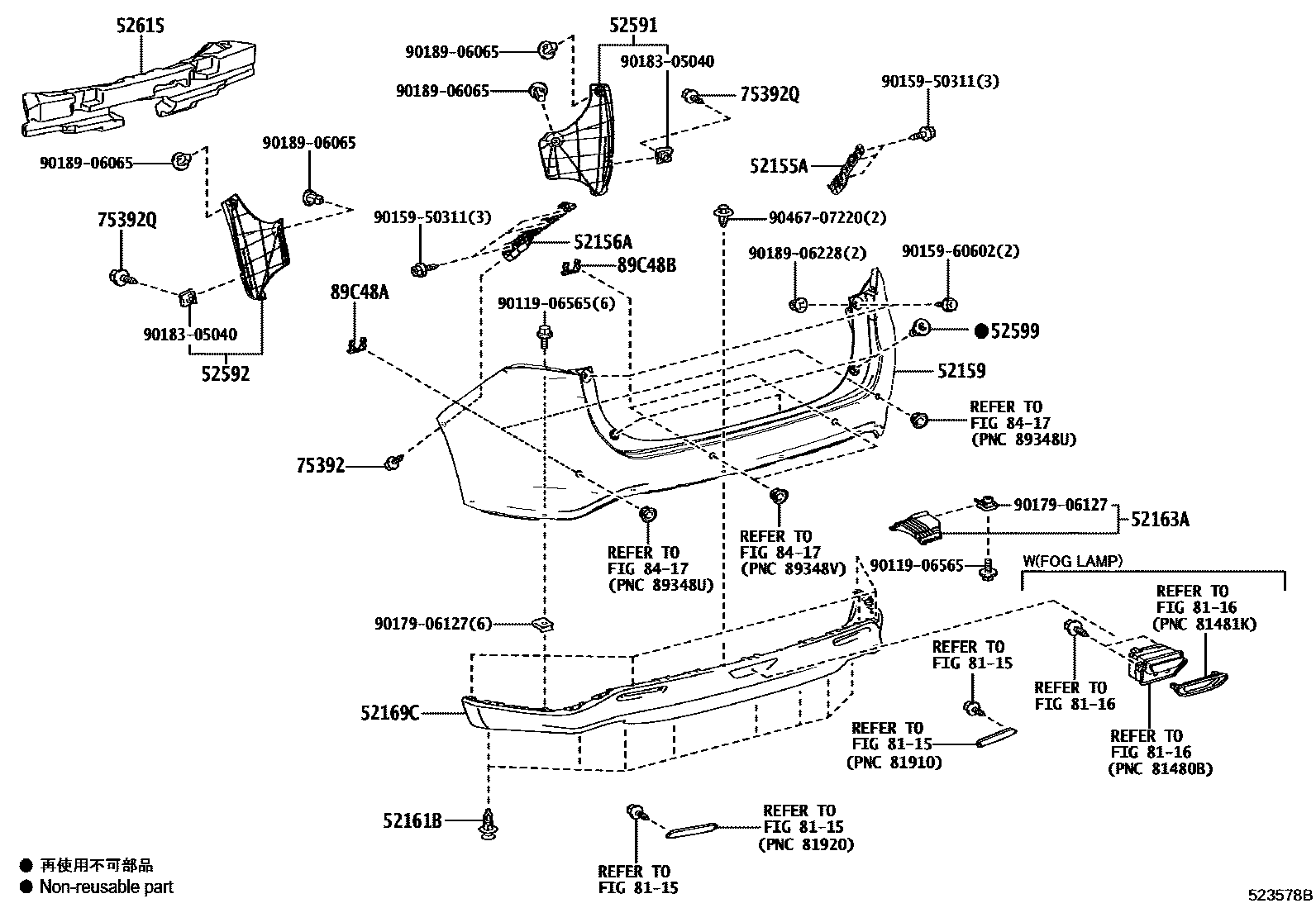

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
sub52161-0K040
52163APLATE, REAR BUMPER, RH
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52615ABSORBER, REAR BUMPER ENERGY
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
8115
8116
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011906565
main90119-06565
9015950311
main90159-50311
9015960602
main90159-60602
9017906127
main90179-06127
9018305040
main90183-05040
9018906065
main90189-06065
9018906228
main90189-06228
9046707220
main90467-07220
25 parts on this diagram · 1 diagram in section
