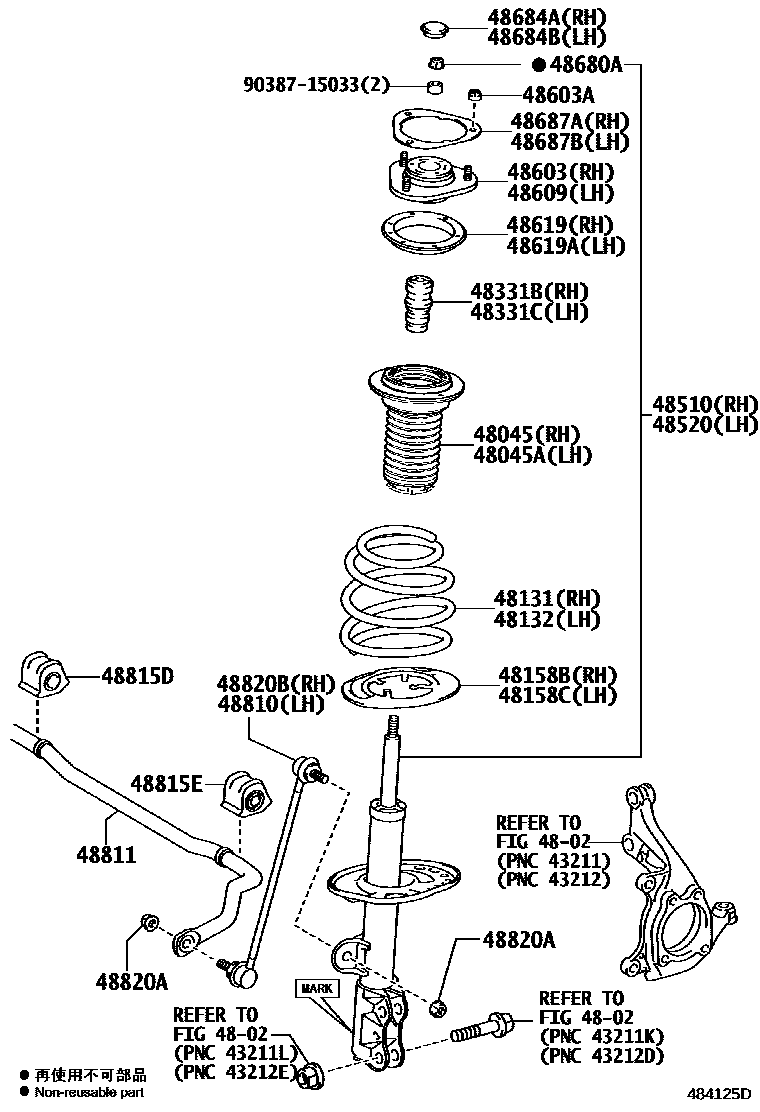

FRONT SPRING & SHOCK ABSORBER

4802

48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR

main48045-42010iASU60201705

48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR

main48045-42010iASU60201705

48131SPRING, FRONT COIL, RH

main48131-48790iASU60201705

48132SPRING, FRONT COIL, LH

main48131-48790iASU60201705

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-78010iASU60201705

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-78010iASU60201705

48331BBUMPER, FRONT SPRING, RH

main48331-42120iASU60201705

48331CBUMPER, FRONT SPRING, LH

main48331-42120iASU60201705

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80866iASU60201705

MARK 48510-48530

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80539iASU60201705

MARK 48520-48530

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42040iASU60201705

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030iASU60201705

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42040iASU60201705

48619BEARING, STRUT MOUNTING, RH

main48619-28010iASU60201705

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iASU60201705

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14007iASU60201705

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42020iASU60201705

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42020iASU60201705

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iASU60201705

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iASU60201705

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iASU60201705

48811BAR, STABILIZER, FRONT

main48811-42071iASU60201705

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-48080iASU60201705

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-48090iASU60201705

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iASU60201705

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iASU60201705

9038715033

main90387-15033

28 parts on this diagram · 1 diagram in section
