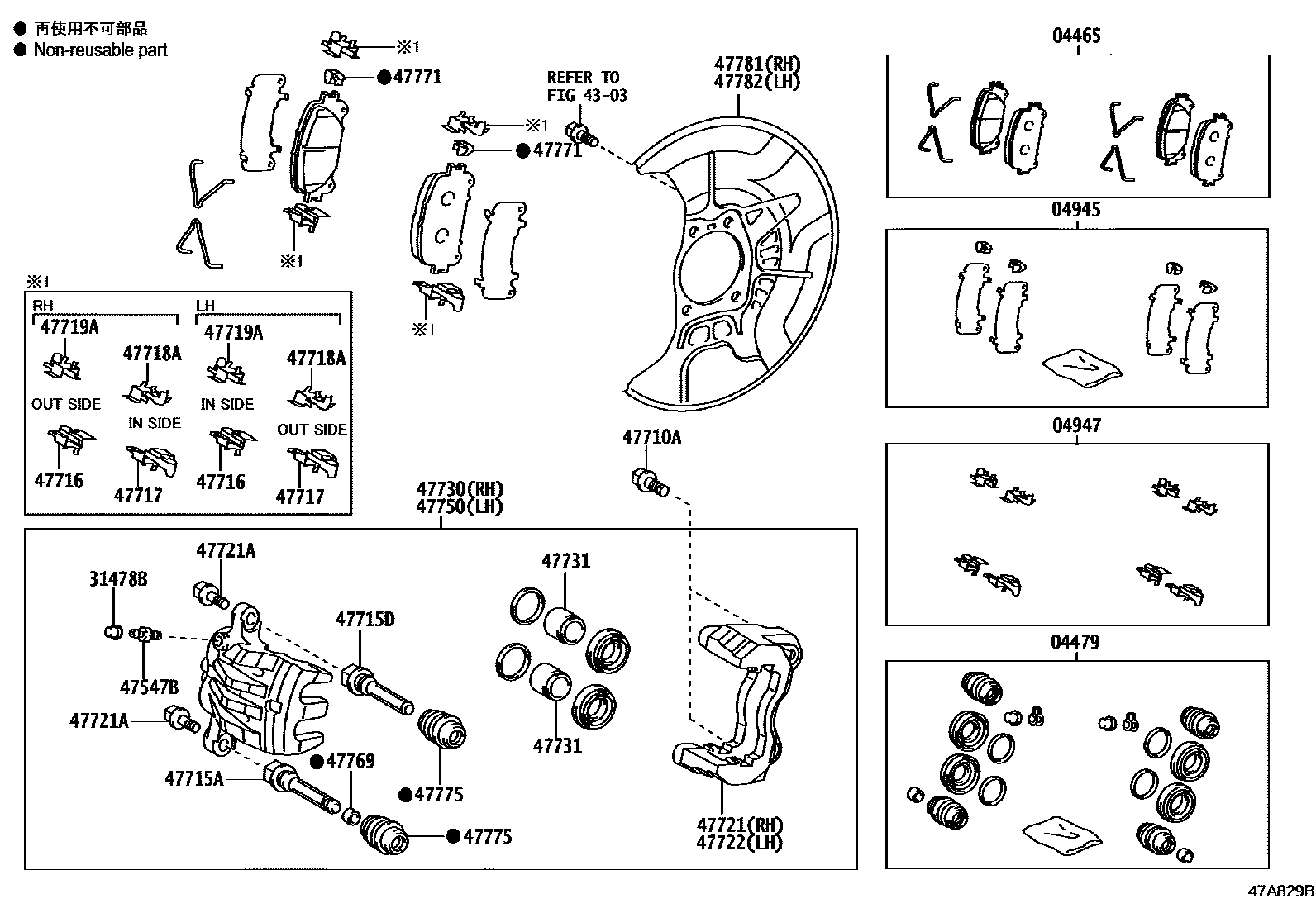

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-48150iASU60¥11,000201705-202005

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48150iASU60¥2,700201705-202005

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iASU60¥1,250201705-202005

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iASU60¥1,670201705-202005

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iASU60¥160201705-202005

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iASU60¥160201705-202005

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iASU60¥160201705-202005

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iASU60¥230201705-202005

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iASU60¥230201705-202005

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48150iASU60¥220201705-202005

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48150iASU60¥220201705-202005

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-48150iASU60¥220201705-202005

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-48150iASU60¥220201705-202005

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iASU60¥6,700201705-202005

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iASU60¥80201705-202005

*8-1.00PX23-12.5

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iASU60¥6,700201705-202005

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48150iASU60¥37,400201705-202005

47731PISTON, FRONT DISC BRAKE

main47731-48150iASU60¥1,060201705-202005

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48110iASU60¥37,400201705-202005

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iASU60¥200201705-202005

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iASU60¥200201705-202005

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iASU60¥250201705-202005

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42050iASU60¥1,510201705-202005

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42050iASU60¥1,510201705-202005

25 parts on this diagram · 1 diagram in section
