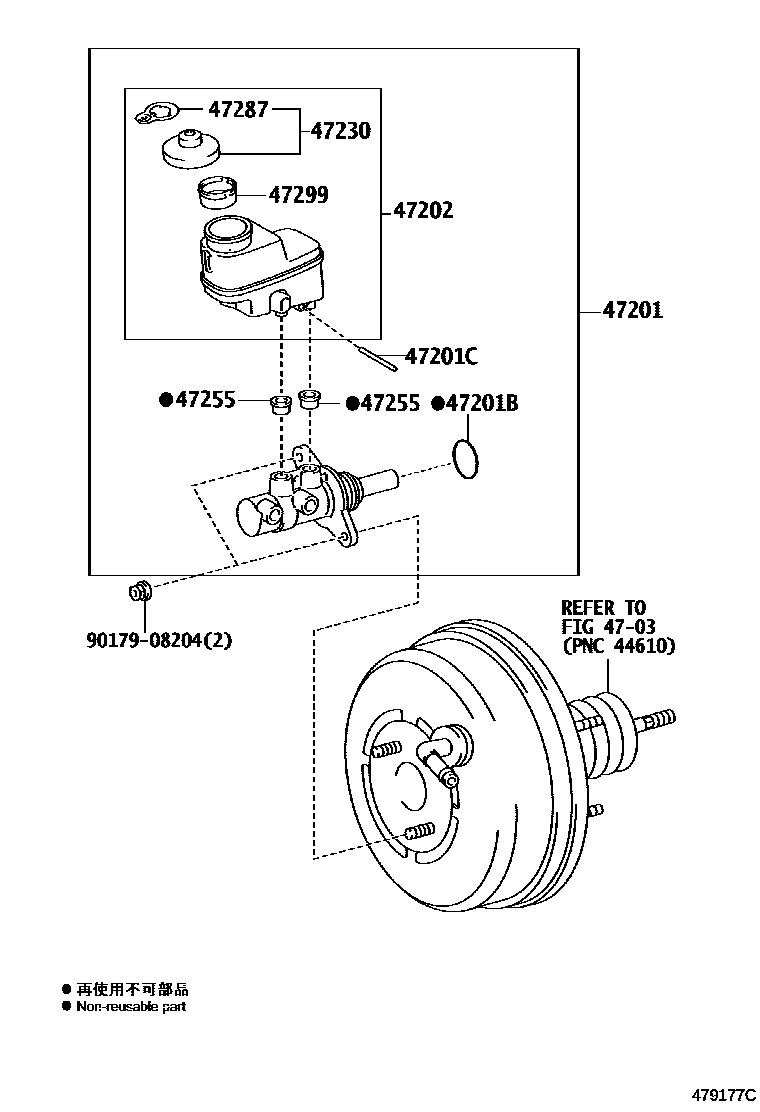

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-42362iASU60201705

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASU60201705

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASU60201705

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42100iASU60201705

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iASU60201705

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASU60201705

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASU60201705

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iASU60201705

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
