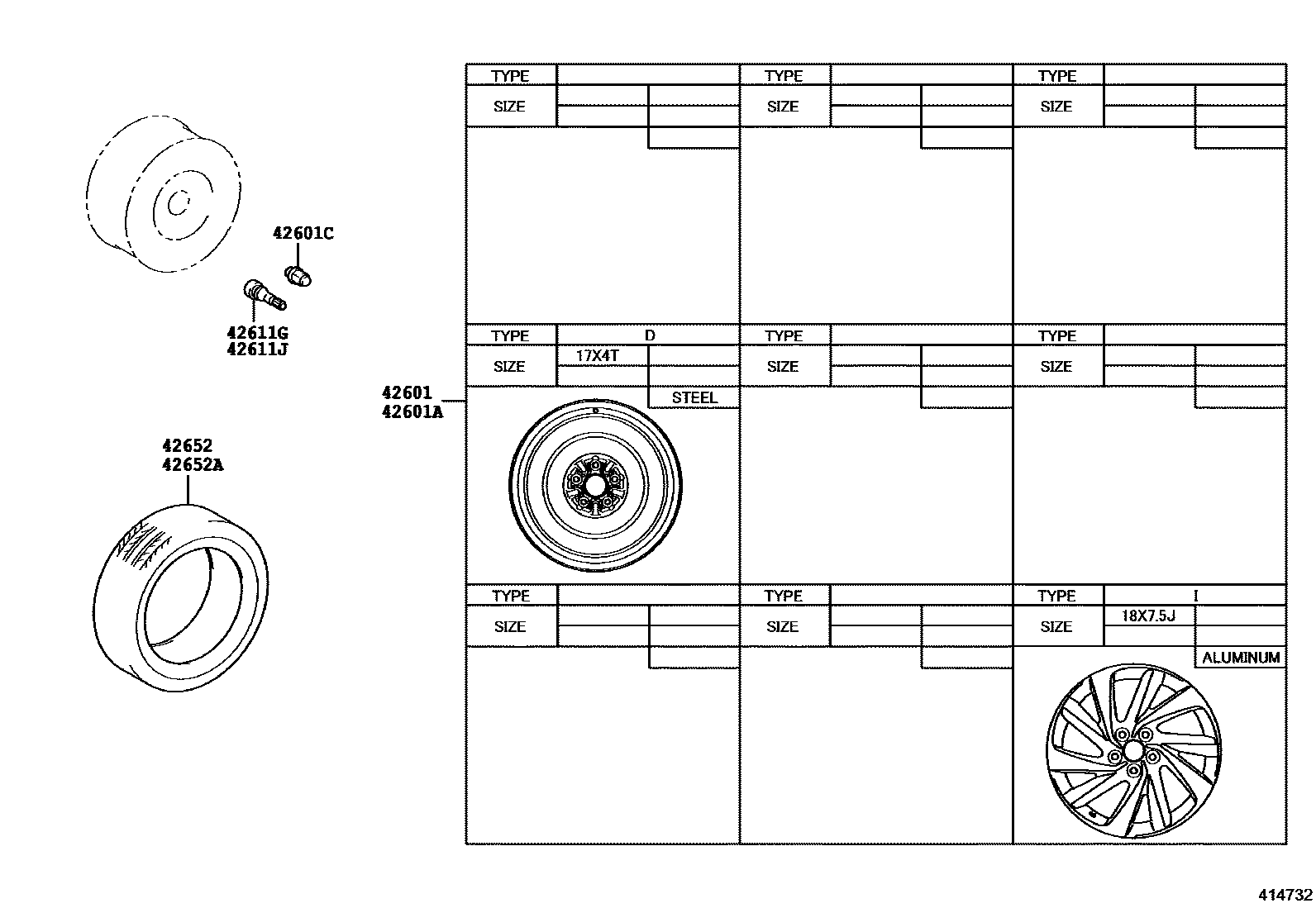

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-48A10iASU60201705

18X7.5J,TYPE I:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-42470iASU60201705-201908

17X4T,TYPE D:REFER ILLUST.

sub42611-42471

main42611-42471iASU60201909

17X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iASU60201705

TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iASU60201705

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iASU60201705

42652TIRE

main42652-42413iASU60201705

235/55R18,*B/S

42652ATIRE (FOR SPARE)

main4265A-42011iASU60201705-201706

T165/80D17,*Y/H

sub4265A-42012

main4265A-42012iASU60201707

T165/80D17,*Y/H

7 parts on this diagram · 3 diagrams in section
