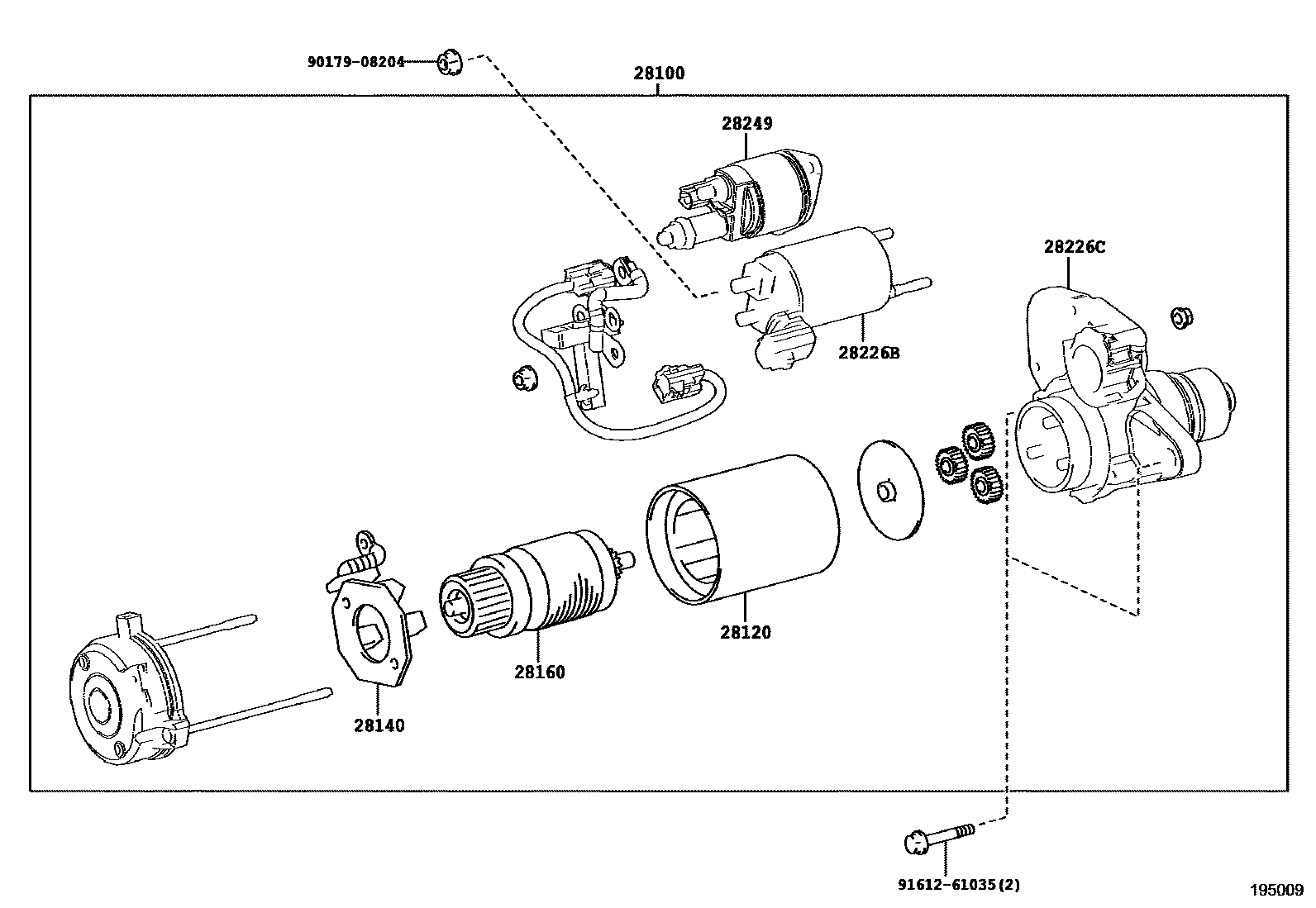

STARTER

28100STARTER ASSY

main28100-36110i8ARFTS..ASU60201705-201812

12V 1.7KW

main28100-36111i8ARFTS..ASU60201812

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-36110i8ARFTS..ASU60201705

28140HOLDER ASSY, STARTER BRUSH

main28140-36110i8ARFTS..ASU60201705

28160ARMATURE ASSY, STARTER

main28160-36110i8ARFTS..ASU60201705

28226BSTARTER KIT, REPAIR SERVICE

main28226-36110i8ARFTS..ASU60201705

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-36100i8ARFTS..ASU60201705

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-36110i8ARFTS..ASU60201705

9017908204

main90179-08204

9161261035

main91612-61035

9 parts on this diagram · 1 diagram in section
