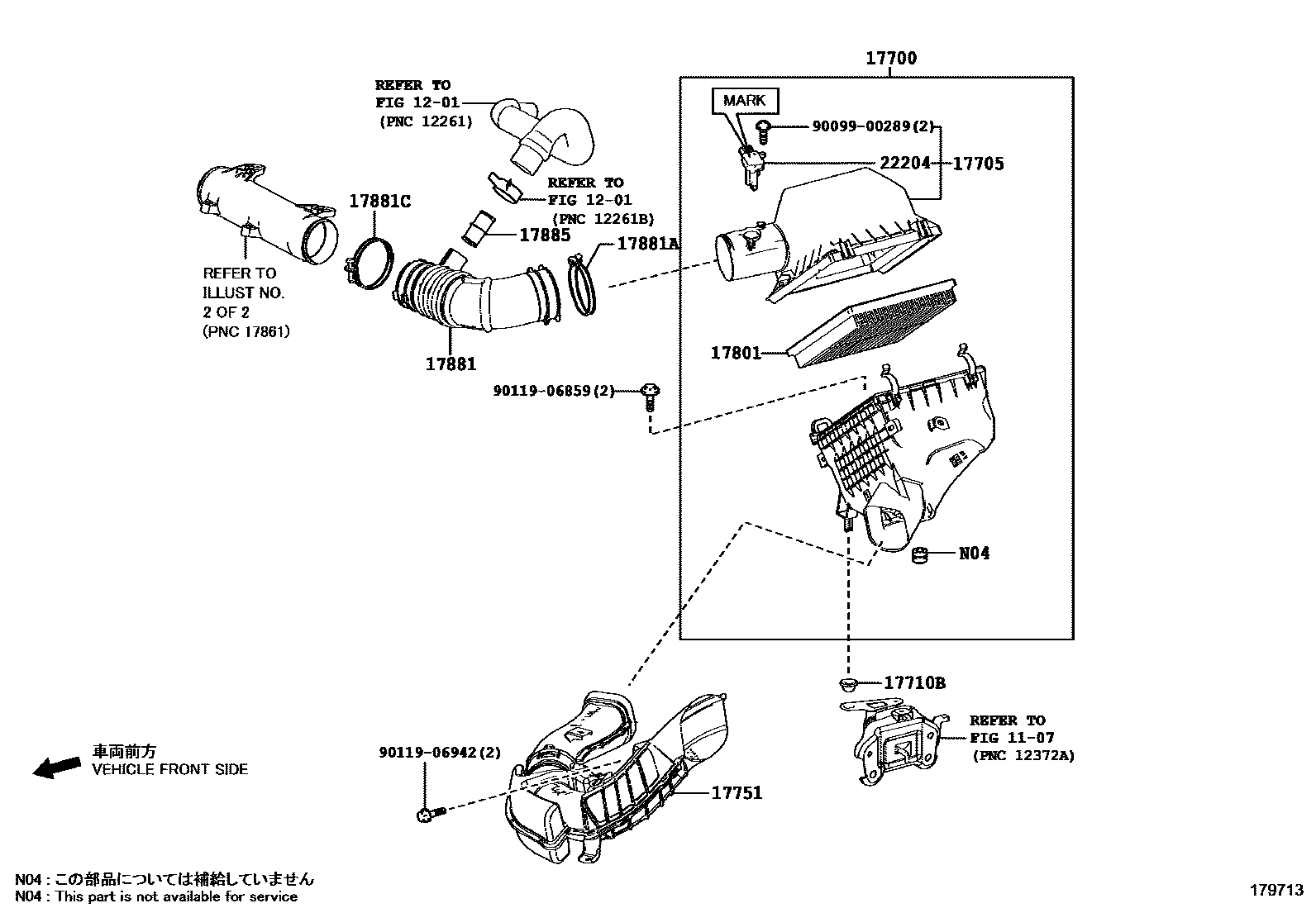

AIR CLEANER

0001 1AIR CLEANER SIDE 0002 1INTERCOOLER SIDE

1107

1201

17700CLEANER ASSY, AIR

main17700-36360i8ARFTS..ASU60201705

17705CAP SUB-ASSY, AIR CLEANER

main17705-36140i8ARFTS..ASU60201705

17710BGROMMET

main90480-18006i8ARFTS..ASU60201705

17751INLET, AIR CLEANER, NO.1

main17751-36090i8ARFTS..ASU60201705

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31131i8ARFTS..ASU60201705

17881HOSE, AIR CLEANER, NO.1

main17881-36150i8ARFTS..ASU60201705

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i8ARFTS..ASU60201705

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i8ARFTS..ASU60201705

17885PIPE, AIR CLEANER

main17885-36040i8ARFTS..ASU60201705

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i8ARFTS..ASU60201705

MARK 22204-0T040

sub22204-28010

main22204-0V010i8ARFTS..ASU60201705

MARK 22204-0V010

sub22204-0V020

main22204-0V020i8ARFTS..ASU60201705

MARK 22204-0V020

main22204-28010i8ARFTS..ASU60201705

MARK 22204-28010

9009900289

main90099-00289

9011906859

main90119-06859

9011906942

main90119-06942

15 parts on this diagram · 2 diagrams in section
