WATER PUMP

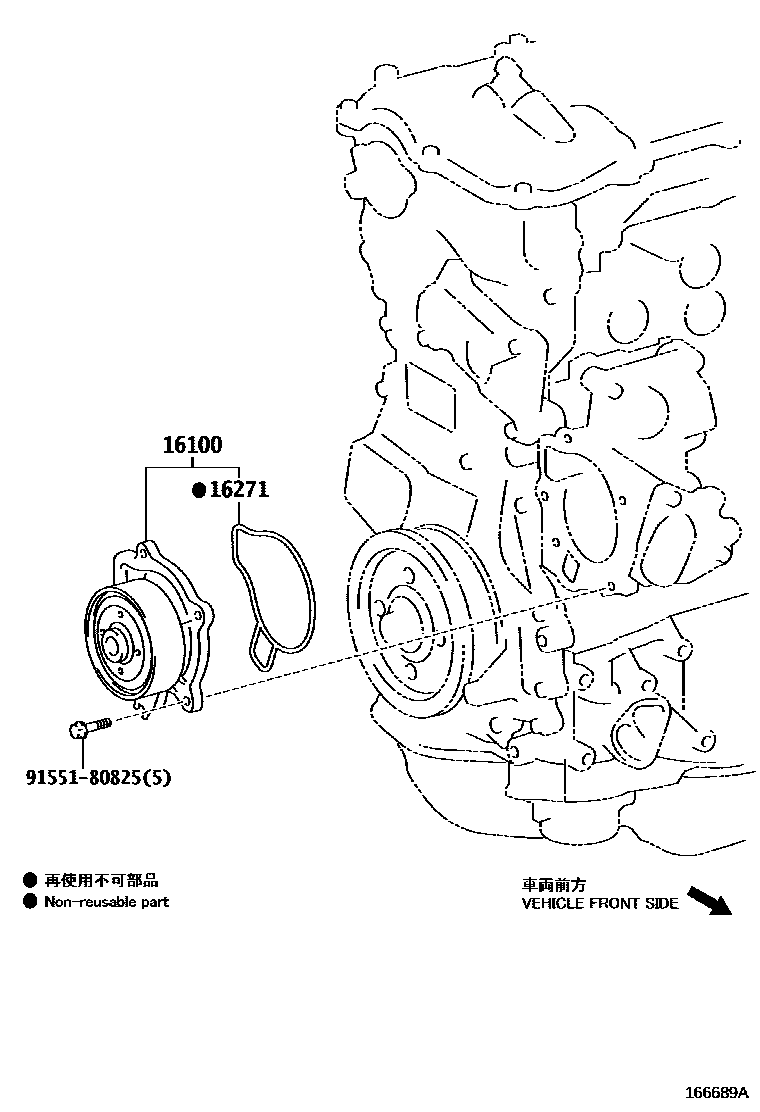

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-39595i201705

16271GASKET, WATER PUMP

main16271-36040i201705

9155180825

main91551-80825

3 parts on this diagram · 1 diagram in section
