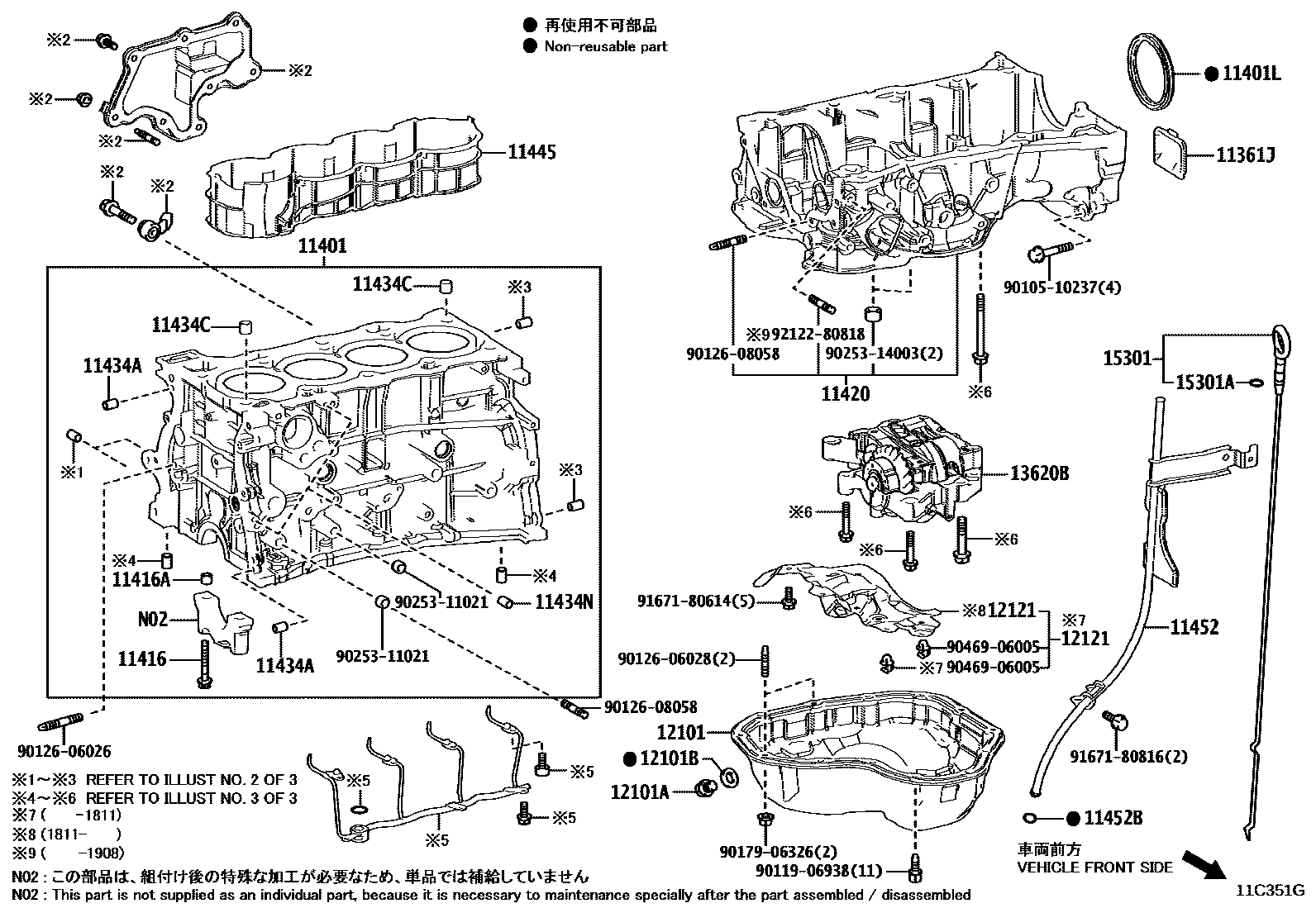

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
sub11410-39255
11401LSEAL, ENGINE REAR OIL
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=14,OD=15
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
9010510237
main90105-10237
9011906938
main90119-06938
9012606026
main90126-06026
9012606028
main90126-06028
9012608058
main90126-08058
9017906326
main90179-06326
9025311021
main90253-11021
9025314003
main90253-14003
9046906005
main90469-06005
9167180614
main91671-80614
9167180816
main91671-80816
9212280818
main92122-80818
31 parts on this diagram · 3 diagrams in section
