CYLINDER HEAD

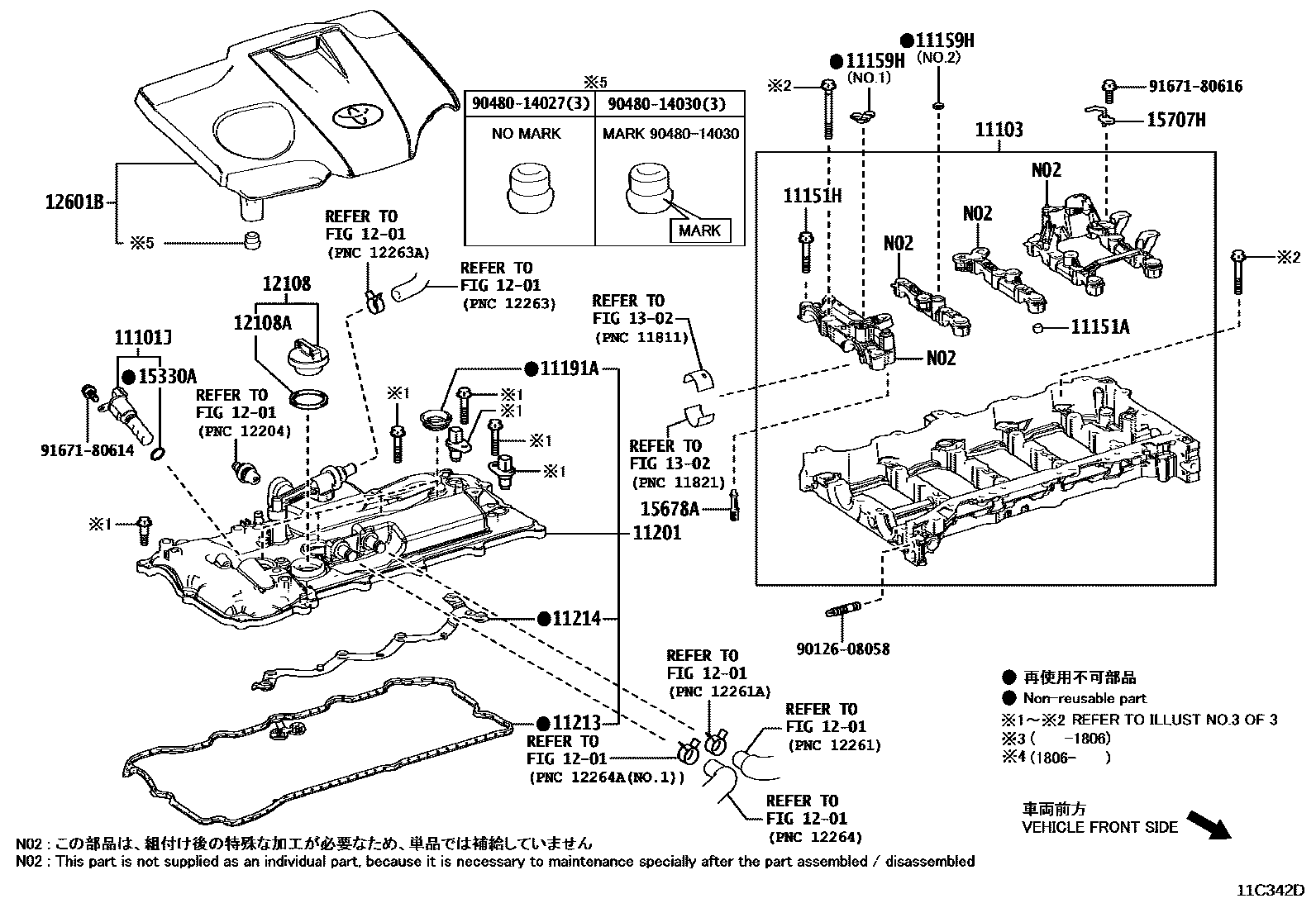

0001 1CYLINDER HEAD COVER & CAMHOUS0002 1CYLINDER HEAD 0003 1FITTING PARTS

11101HEAD SUB-ASSY, CYLINDER

main11101-39845i8ARFTS..ASU60201705-201708

sub11101-39846

sub13715-36041

main11101-39846i8ARFTS..ASU60201708-201808

sub11101-39847

main11101-39847i8ARFTS..ASU60201808-202003

sub11101-39848

main11101-39848i8ARFTS..ASU60202003

sub11101-80014

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-37010i8ARFTS..ASU60201705

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-36040i8ARFTS..ASU60201705

sub11103-36050

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-13005i8ARFTS..ASU60201705

L=12.5,OD=8

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009i8ARFTS..ASU60201705

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-36011i8ARFTS..ASU60201705

NO.1:REFER ILLUST.

main90430-10024i8ARFTS..ASU60201705

NO.2:REFER ILLUST.

11191AGASKET(FOR SPARK PLUG TUBE)

main11193-31010i8ARFTS..ASU60201705

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-36061i8ARFTS..ASU60201705

11213GASKET, CYLINDER HEAD COVER

main11213-36050i8ARFTS..ASU60201705

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-36020i8ARFTS..ASU60201705

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i8ARFTS..ASU60201705

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i8ARFTS..ASU60201705

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-36261i8ARFTS..ASU60201705-201805

sub12601-36262

main12601-36262i8ARFTS..ASU60201806

sub12601-36900

1302

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i8ARFTS..ASU60201705

15678AFILTER, OIL CONTROL VALVE

main15678-37010i8ARFTS..ASU60201705

15707HPIPE SUB-ASSY, OIL

main15707-36010i8ARFTS..ASU60201705

9012608058

main90126-08058

9048014027

main90480-14027

9048014030

main90480-14030

9167180614

main91671-80614

9167180616

main91671-80616
