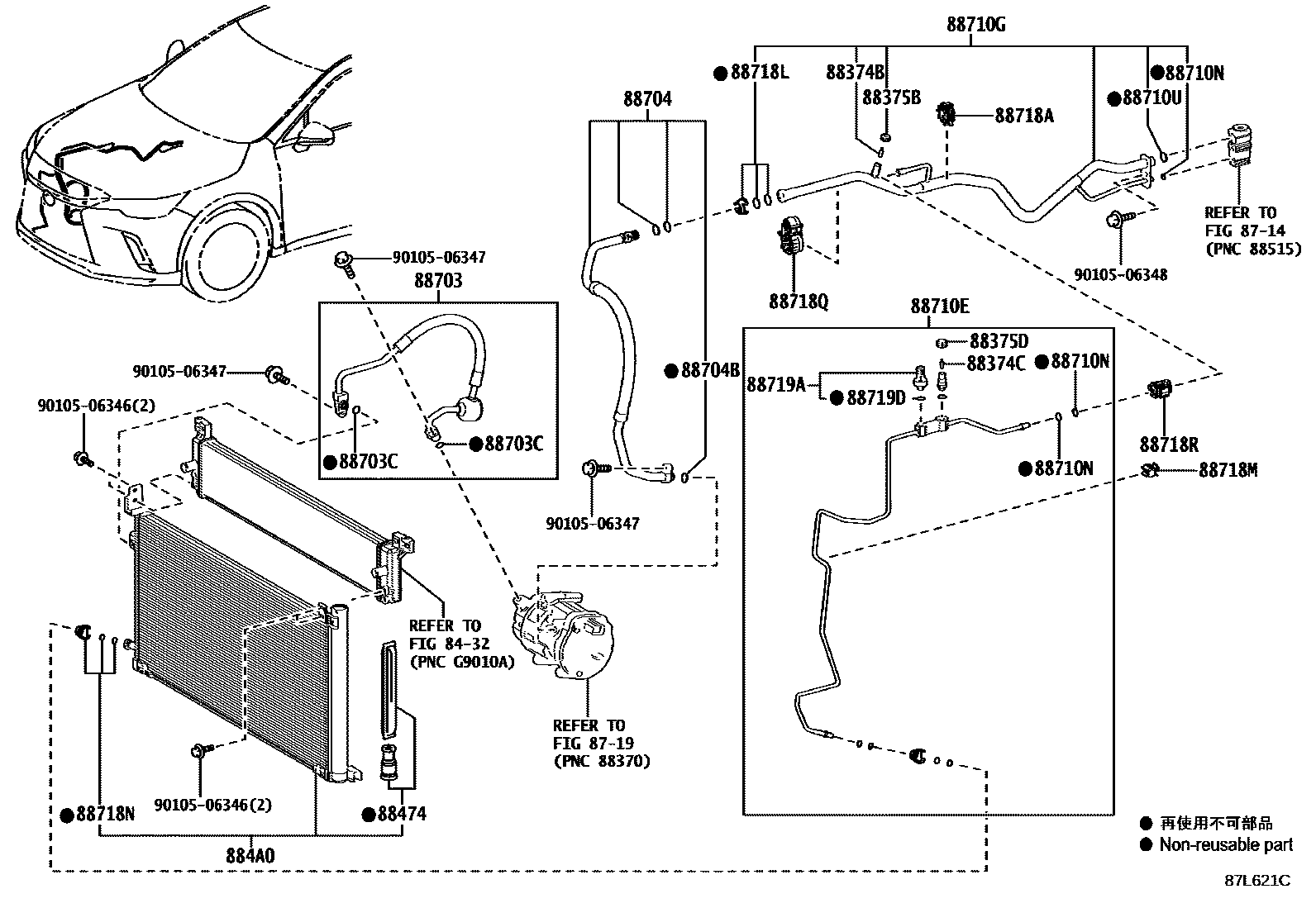

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAALH10,15,SALA15,TALA1#,TALH17202211

88374CVALVE, SERVICE, NO.2

main88374-30010iAALH10,15,SALA15,TALA1#,TALH17202211

main88374-74010iAALH16202211

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

MOROCCO SPEC

main88375-30290iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

MONGOLIA SPEC

main88375-30290iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

MOLDOVA SPEC

main88375-30290iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

KYRGYZSTAN SPEC

main88375-30290iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

ARMENIA SPEC

main88375-30290iTALH17..LHD..EUR202211

KAZAKHSTAN SPEC

main88375-30290iTALH17..LHD..EUR202211

UKRAINE SPEC

main88375-30290iTALH17..LHD..EUR202211

AZERBAIJAN SPEC

main88375-30290iTALH17..LHD..EUR202211

GEORGIA SPEC

main88375-30290iTALH17..LHD..EUR202211-202509

RUSSIA SPEC

main88375-30290iTALH17..LHD..EUR202211-202509

BELARUS SPEC

main88375-30310iAALH15,TALH17..EUR202211

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iAALH15,TALH17..LHD..EUR202211

AZERBAIJAN SPEC

main88375-30280iTALH17..LHD..EUR202211-202509

RUSSIA SPEC

main88375-30280iTALH17..LHD..EUR202211-202509

BELARUS SPEC

main88375-30280iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

KAZAKHSTAN SPEC

main88375-30280iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

UKRAINE SPEC

main88375-30280iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

GEORGIA SPEC

main88375-30280iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

MOROCCO SPEC

main88375-30280iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

MONGOLIA SPEC

main88375-30280iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

MOLDOVA SPEC

main88375-30280iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

KYRGYZSTAN SPEC

main88375-30280iTALA15;AALH10,15,SALA15,TALA10,TALH17..CHI,GCC,GEN202211

ARMENIA SPEC

main88375-30310iAALH16..EUR202211

main88375-30320iAALH15,TALH17..EUR202211

main88375-74010iAALH16..LHD..EUR202308

AZERBAIJAN SPEC

main88375-74010iAALH16..LHD..EUR202308

GEORGIA SPEC

main88375-74010iAALH16..LHD..EUR202308

MOLDOVA SPEC

main88375-74010iAALH16..LHD..EUR202308

UKRAINE SPEC

main88375-74010iAALH16..LHD..EUR202410

KAZAKHSTAN SPEC

main88375-74010iAALH16..LHD..EUR202410

KYRGYZSTAN SPEC

main88375-74010iAALH16..CHI,GEN202211

88474DRYER, COOLER

main88474-12010iSALA15,TALA1#,TALH17202211

main88474-47020iAALH10,15202211

884A0CONDENSER ASSY, COOLER

main884A0-48010iAALH10,15202211

main884A0-48030iSALA15,TALA1#202211

main884A0-48040iTALH17202211

main884A0-48070iAALH16202211

88703HOSE SUB-ASSY, DISCHARGE

main88703-48370iAALH16..EUR202211

main88703-48380iAALH16..LHD..EUR202308

MOLDOVA SPEC

main88703-48380iAALH16..CHI,GEN202211

main88703-48380iAALH16..LHD..EUR202308

UKRAINE SPEC

main88703-48380iAALH16..LHD..EUR202308

AZERBAIJAN SPEC

main88703-48380iAALH16..LHD..EUR202308

GEORGIA SPEC

main88703-48380iAALH16..LHD..EUR202410

KAZAKHSTAN SPEC

main88703-48380iAALH16..LHD..EUR202410

KYRGYZSTAN SPEC

main88711-48270iSALA15,TALA1#202211

main88711-48280iAALH10,15202211

main88711-48290iTALH17202211

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iAALH1#,SALA15,TALA1#,TALH17202211

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-48340iSALA15,TALA1#202211

main88704-48350iAALH10,15202211

main88704-48360iTALH17202211

main88704-48370iAALH16202211

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iAALH10,15,SALA15,TALA1#,TALH17202211

ID=13.4,OD=18.2

main90099-14157iAALH16202211

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48860iTALH17..EUR202211

main88710-48880iSALA15,TALA1#;TALH17..CHI,GCC,GEN202211

MOLDOVA SPEC

main88710-48880iSALA15,TALA1#;TALH17..CHI,GCC,GEN202211

KYRGYZSTAN SPEC

main88710-48880iSALA15,TALA1#;TALH17..CHI,GCC,GEN202211

ARMENIA SPEC

main88710-48880iTALH17..LHD..EUR202211

KAZAKHSTAN SPEC

main88710-48880iTALH17..LHD..EUR202211

UKRAINE SPEC

main88710-48880iTALH17..LHD..EUR202211

AZERBAIJAN SPEC

main88710-48880iTALH17..LHD..EUR202211

GEORGIA SPEC

main88710-48880iTALH17..LHD..EUR202211

MONGOLIA SPEC

main88710-48880iTALH17..LHD..EUR202211-202509

RUSSIA SPEC

main88710-48880iTALH17..LHD..EUR202211-202509

BELARUS SPEC

main88710-48A00iAALH15..EUR202211

main88710-48B10iAALH10,15..CHI,GCC,GEN202211

UKRAINE SPEC

main88710-48B10iAALH10,15..CHI,GCC,GEN202211

AZERBAIJAN SPEC

main88710-48B10iAALH10,15..CHI,GCC,GEN202211

GEORGIA SPEC

main88710-48B10iAALH10,15..CHI,GCC,GEN202211

MOROCCO SPEC

main88710-48B10iAALH10,15..CHI,GCC,GEN202211

MONGOLIA SPEC

main88710-48B10iAALH10,15..CHI,GCC,GEN202211

MOLDOVA SPEC

main88710-48B10iAALH15..LHD..EUR202308

KAZAKHSTAN SPEC

main88710-48B10iAALH15..LHD..EUR202308

KYRGYZSTAN SPEC

main88710-48B10iAALH15..LHD..EUR202308

ARMENIA SPEC

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-48A50iTALH17..LHD..EUR202211

main88710-48A70iTALH17..RHD..GEN202211

main88710-48A80iTALH17..RHD..EUR202211

main88710-48A90iTALH17..LHD..EUR202211

MOLDOVA SPEC

main88710-48A90iTALH17..LHD..EUR202211-202509

RUSSIA SPEC

main88710-48A90iTALH17..LHD..EUR202211-202509

BELARUS SPEC

main88710-48A90iSALA15,TALA1#..LHD;TALH17..LHD..(CHI,GCC,GEN)202211

KAZAKHSTAN SPEC

main88710-48A90iSALA15,TALA1#..LHD;TALH17..LHD..(CHI,GCC,GEN)202211

UKRAINE SPEC

main88710-48A90iSALA15,TALA1#..LHD;TALH17..LHD..(CHI,GCC,GEN)202211

AZERBAIJAN SPEC

main88710-48A90iSALA15,TALA1#..LHD;TALH17..LHD..(CHI,GCC,GEN)202211

GEORGIA SPEC

main88710-48A90iSALA15,TALA1#..LHD;TALH17..LHD..(CHI,GCC,GEN)202211

MONGOLIA SPEC

main88710-48A90iSALA15,TALA1#..LHD;TALH17..LHD..(CHI,GCC,GEN)202211

KYRGYZSTAN SPEC

main88710-48A90iSALA15,TALA1#..LHD;TALH17..LHD..(CHI,GCC,GEN)202211

ARMENIA SPEC

main88710-48B20iTALA1#..RHD202211

main88710-48B30iAALH15..LHD..EUR202211

main88710-48B50iAALH15..RHD..EUR202211

main88710-48B60iAALH10,15..LHD..(CHI,GCC,GEN)202211

GEORGIA SPEC

main88710-48B60iAALH10,15..LHD..(CHI,GCC,GEN)202211

MOROCCO SPEC

main88710-48B60iAALH10,15..LHD..(CHI,GCC,GEN)202211

MONGOLIA SPEC

main88710-48B60iAALH10,15..LHD..(CHI,GCC,GEN)202211

MOLDOVA SPEC

main88710-48B60iAALH15..LHD..EUR202211

UKRAINE SPEC

main88710-48B60iAALH15..LHD..EUR202211

AZERBAIJAN SPEC

main88710-48B60iAALH15..LHD..EUR202308

KAZAKHSTAN SPEC

main88710-48B60iAALH15..LHD..EUR202308

KYRGYZSTAN SPEC

main88710-48B60iAALH15..LHD..EUR202308

ARMENIA SPEC

main88710-48B70iAALH10,15..RHD..GEN202211

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iAALH10,15,SALA15,TALA1#,TALH17202211

ID=6.7,OD=10.3

88710URING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14121iAALH10,15,SALA15,TALA1#,TALH17202211

ID=13.4,OD=18.2

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-33540iAALH10,15,SALA15,TALA1#,TALH17202211

88718LCLAMP, PIPING

main88718-48880iAALH16202211

main88718-52280iAALH10,15,SALA15,TALA1#,TALH17202211

88718MCLAMP, PIPING

main88718-2F110iAALH10,15,SALA15,TALA1#,TALH17202211

88718NCLAMP, PIPING

main88718-1E150iAALH10,15,SALA15,TALA1#,TALH17202211

main88718-48830iAALH16202211

88718QCLAMP, PIPING

main88718-42120iAALH10,15,SALA15,TALA1#,TALH17202211

main88718-48870iAALH16202211

88718RCLAMP, PIPING

main88718-2D150iAALH10,15,SALA15,TALA1#,TALH17202211

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAALH1#,SALA15,TALA1#,TALH17202211

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iAALH1#,SALA15,TALA1#,TALH17202211

ID=10.6,OD=14.16

9010506346

main90105-06346

9010506347

main90105-06347

9010506348

main90105-06348

28 parts on this diagram · 10 diagrams in section
