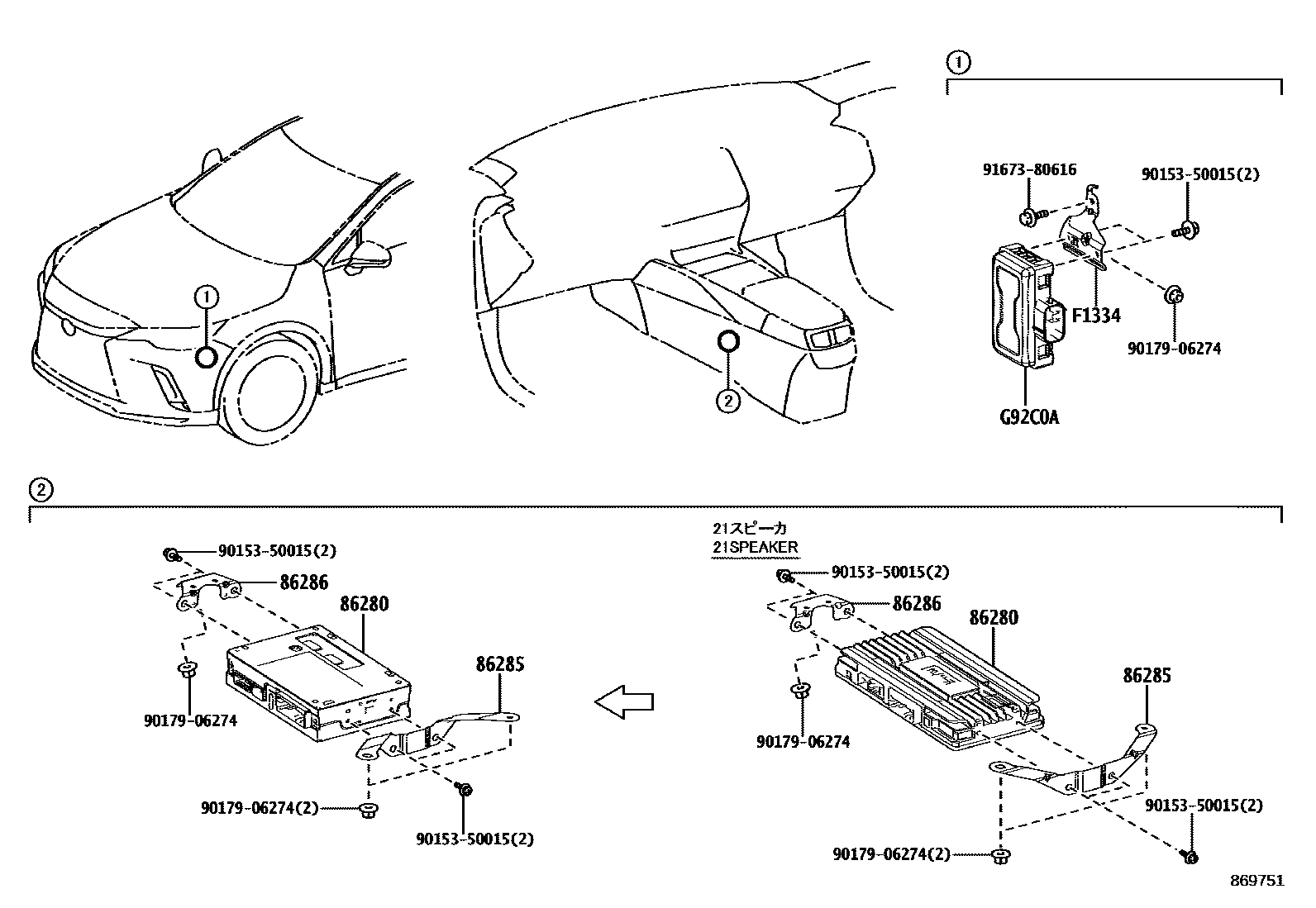

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-48460iTALA15..EUR202410

main86280-48460iAALH15..CHI;TALA15..EUR202211-202410

AUDIO-EMV & 12SPEAKER

main86280-48480iTALA15..EUR202211

AUDIO-*DA & 12SPEAKER

main86280-48480iTALA15..EUR202211-202410

main86280-48490iAALH16..LHD..EUR202211-202409

AUDIO-*DA & 21SPEAKER

main86280-48491iAALH15,TALA15..GCC202410-202509

AUDIO-*DA & 21SPEAKER

main86280-48510iAALH15,16,TALH17;AALH10,TALA1#..EUR,GCC,GEN202211-202308

AUDIO-EMV & 21SPEAKER

sub86280-48511

main86280-48511iAALH16,TALH17;AALH10,15,TALA1#..EUR,GCC,GEN202309-202411

AUDIO-EMV & 21SPEAKER

main86280-48512iAALH16,TALH17;AALH10,15,TALA1#..EUR,GCC,GEN202412

AUDIO-EMV & 21SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-48210iAALH1#,SALA15,TALA1#,TALH17202211

main86285-48230iAALH15,TALA15..GCC202211-202509

AUDIO-*DA & 21SPEAKER

main86285-48230iAALH16,TALH17;AALH10,15,TALA1#..EUR,GCC,GEN202211-202410

AUDIO-EMV & 21SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-48160iAALH1#,SALA15,TALA1#,TALH17202211

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF13340E020iSALA15,TALA1#202211

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iSALA15,TALA1#202211

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

8 parts on this diagram · 2 diagrams in section
