DC/DC CONVERTER & CHARGER(BEV OR FCEV)

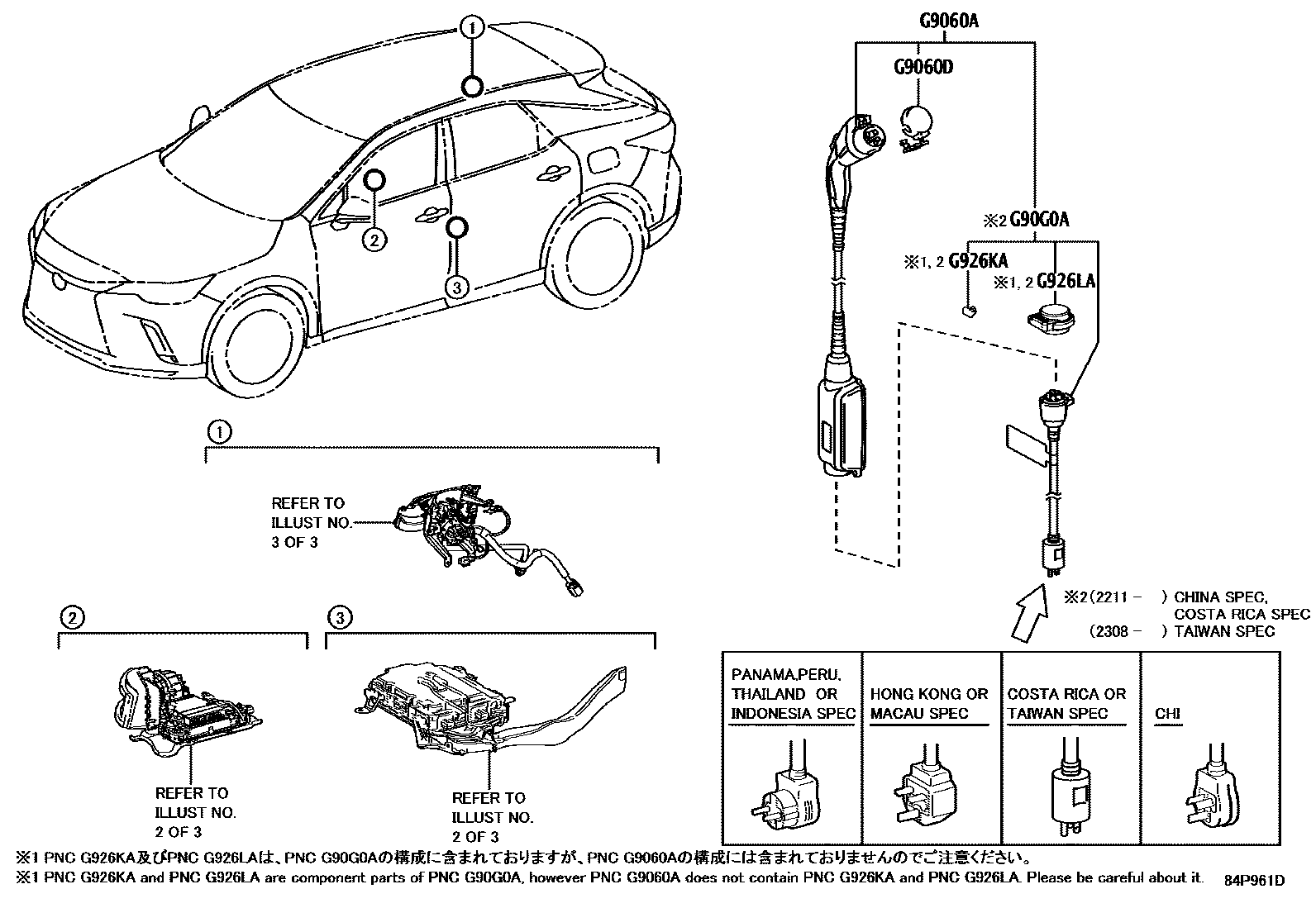

Parts diagram

G9060ACABLE ASSY, ELECTRIC VEHICLE CHARGER

mainG906047442i202211-202410

mainG906047130i202211-202308

COSTA RICA SPEC

mainG906047451i202211

THAILAND SPEC&BATTERY CHARGE CABLE-EU SE(7.5M)

mainG906047531i202211-202308

TAIWAN SPEC

mainG906047532i202409

TAIWAN SPEC&BATTERY CHARGE CABLE-TAIWAN(7.5M)

mainG9060F4010i202211-202410

BATTERY CHARGE CABLE-CHINA

G9060DCOVER, EV CHARGER CABLE

main82821-47590i202211-202410

main82821-47650i202308

COSTA RICA SPEC&BATTERY CHARGE CABLE-USA(7.5M)

main82821-F4040i202211-202410

BATTERY CHARGE CABLE-CHINA

G90G0APLUG ASSY, CABLE EV CHARGER

mainG90G012010i202211-202410

BATTERY CHARGE CABLE-CHINA

mainG90G047120i202308

COSTA RICA SPEC&BATTERY CHARGE CABLE-USA(7.5M)

G926KAKEY, PLUG CABLE EV CHARGER

mainG926K47020i202308

COSTA RICA SPEC&BATTERY CHARGE CABLE-USA(7.5M)

G926LACOVER, PLUG CABLE EV CHARGER

mainG926L47020i202308

COSTA RICA SPEC&BATTERY CHARGE CABLE-USA(7.5M)

5 parts on this diagram · 3 diagrams in section
