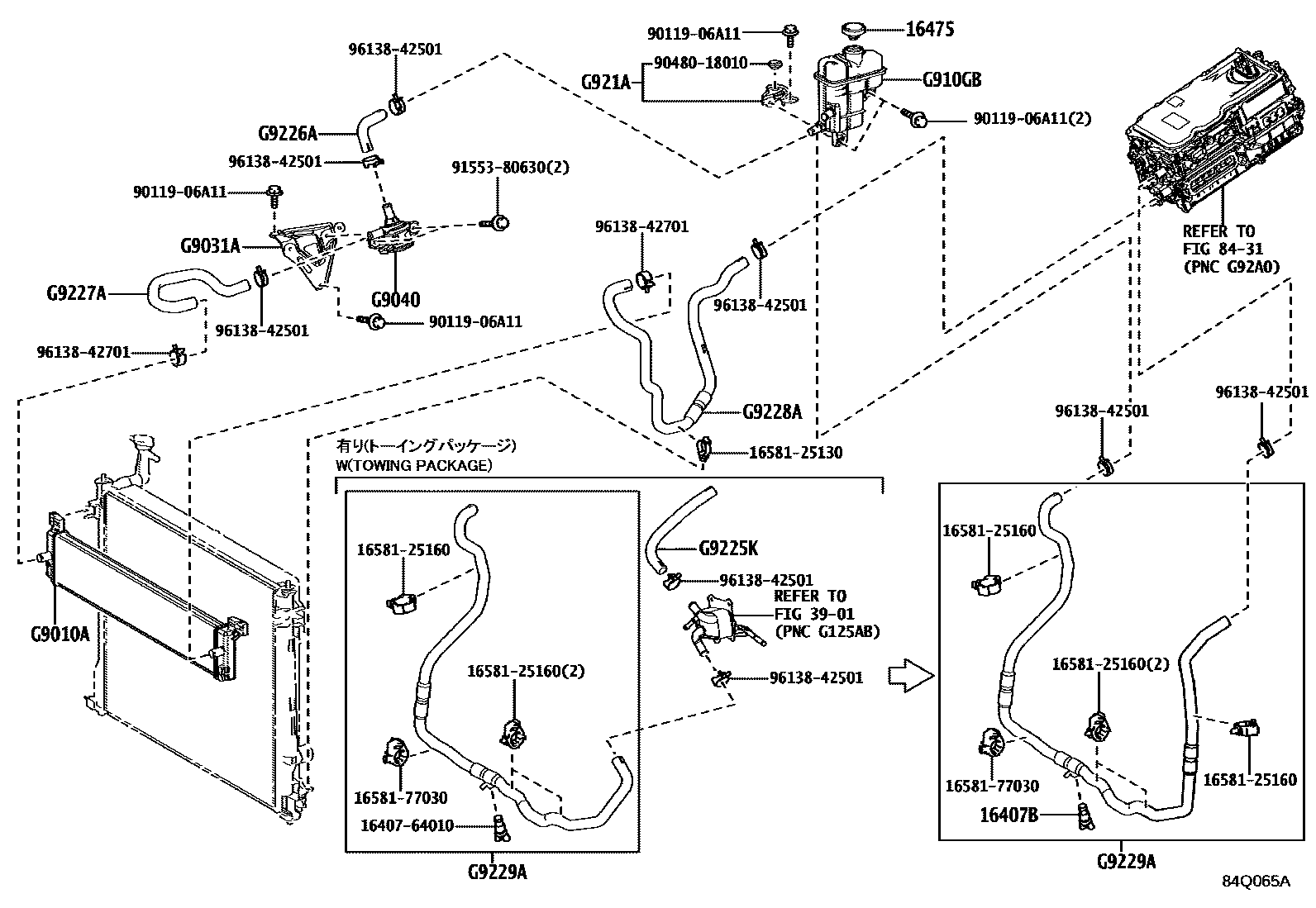

INVERTER COOLING

0001 1 0002 1 0003 1 0004 1

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AALH10,15¥380202211-202410

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AALH1#¥1,200202211

3901

8431

G9010ARADIATOR ASSY

mainG901048110iAALH1#202211

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914142010iAALH10,15202211

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048030iTALH17202211

mainG904048050iAALH16202211

mainG904048060iAALH10,15202211

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAALH1#202211

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAALH1#202211

G9225KHOSE, INVERTER COOLING, NO.1

mainG922542020iAALH16202211

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642010iAALH10,15202211

mainG922642020iAALH16202211

mainG922648070iTALH17202211

G9227AHOSE, INVERTER COOLING, NO.3

mainG922748070iTALH17202211

mainG922748080iAALH10,15202211

mainG922748090iAALH16202211

G9228AHOSE, INVERTER COOLING, NO.4

mainG922848050iTALH17202211

mainG922848060iAALH1#202211

G9229AHOSE, INVERTER COOLING, NO.5

mainG922948030iTALH17202211

mainG922948040iAALH10,15202410

mainG922948050iAALH16202211

mainG922948060iAALH10,15202211-202410

1640764010COCK SUB-ASSY, RADIATOR DRAIN

main16407-64010¥380

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130¥260

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

1658177030CLAMP, HOSE(FOR WATER HOSE)

main16581-77030¥450

9011906A11

main90119-06A11¥60

9048018010

main90480-18010¥130

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

23 parts on this diagram · 4 diagrams in section
