INTERIOR LAMP

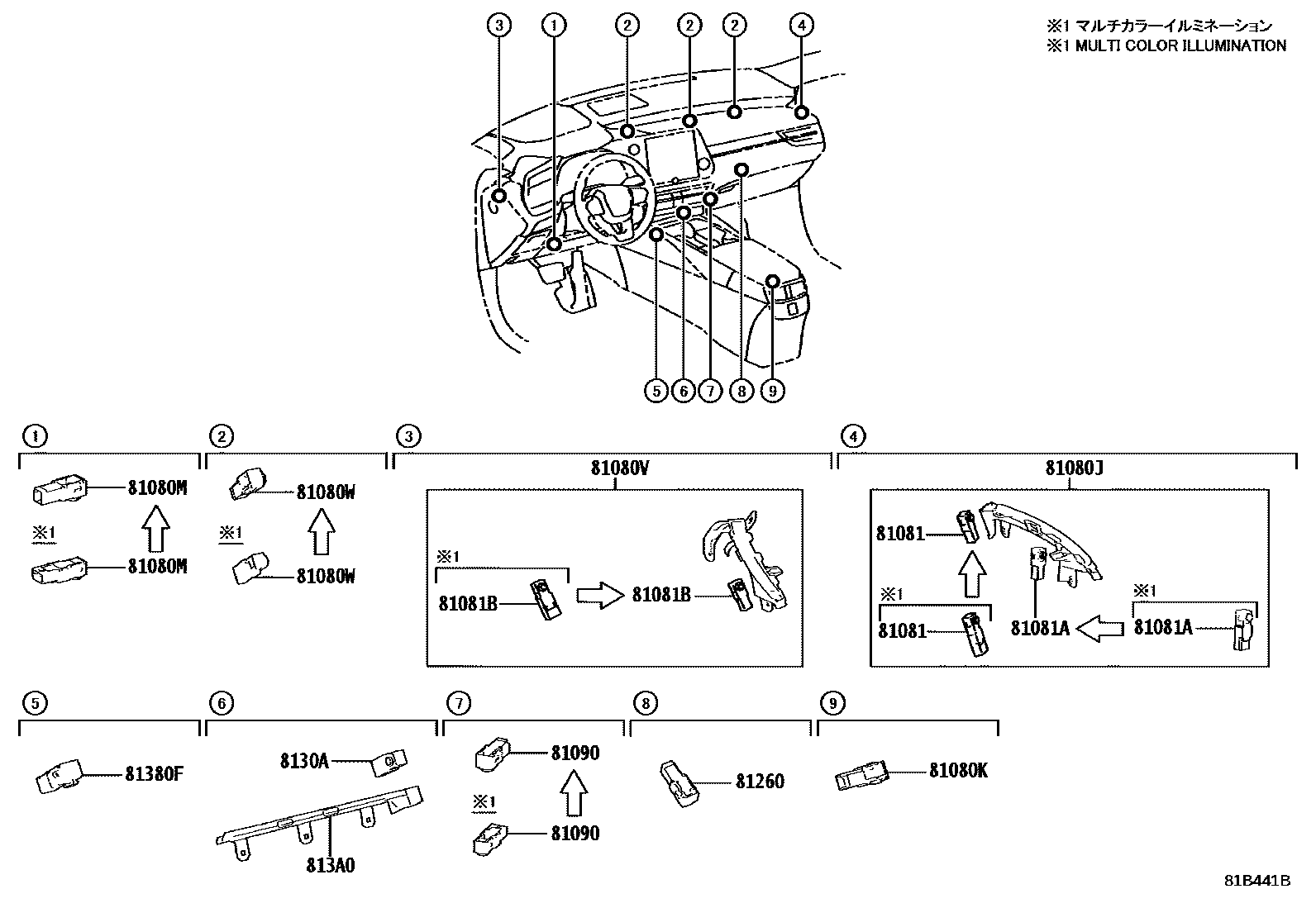

Parts diagram
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
main81080-48160i202211-202410
sub81080-48161
main81080-48161i202410
main81080-48170i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-48180i202211-202410
sub81080-48181
main81080-48181i202410
main81080-48190i202211-202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-48190i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-48220i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-48230i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-48230i202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
main81080-50110i202211
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
main81080-50110i202211
main81080-78010i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78040i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
main81090-48150i202211-202410
sub81090-48151
main81090-48151i202410
main81090-48160i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81090-48170i202211-202410
sub81090-48171
main81090-48171i202410
main81090-48180i202211-202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81090-48180i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81090-48190i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81090-48200i202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81090-48200i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
main81080-78020i202211
main81080-78030i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78060i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
main81080-78020i202211
main81080-78030i202211-202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78030i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78060i202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78060i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
main81080-50110i202211
main81080-78010i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78010i202211-202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78040i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78040i202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81081BLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3
main81080-50110i202211
main81080-78010i202211-202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78010i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78040i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78040i202410
SOUTH AFRICA SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
main81080-50110i202211
main81080-78010i202211-202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78040i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81260LAMP ASSY, GLOVE BOX
main81080-50110i202211
8130ALAMP SUB-ASSY, INSTRUMENT PANEL, NO.1
main81080-78020i202410
main81080-78060i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
main81080-78060i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
main81080-78060i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&ADVANCED PARK-WITH
main81080-78060i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
main81080-78060i202410
BRAZIL SPEC&ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&ADVANCED PARK-WITH
main81080-78060i202410
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
81380FLAMP ASSY, CONSOLE BOX
main81080-48210i202211
813A0LAMP ASSY, INSTRUMENT PANEL
main81080-48280i202410
main81080-48290i202410

13 parts on this diagram · 5 diagrams in section
