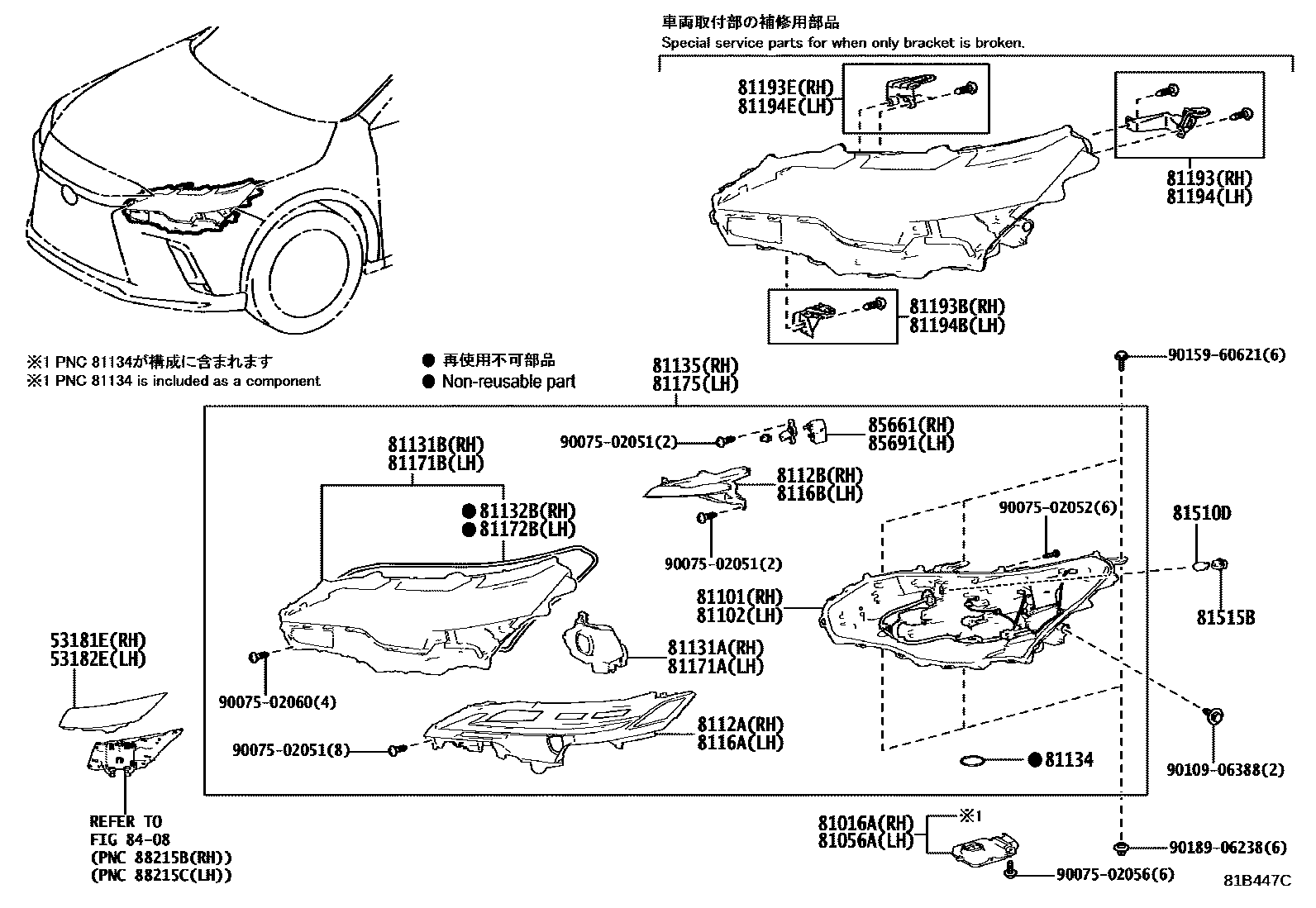

HEADLAMP

0001 1SINGLE BEAM HEADLIGHT 0002 1TRIPLE BEAM HEADLIGHT

53181ECOVER, HEADLAMP, RH

main52711-48100iAALH1#,SALA15,TALA1#,TALH17202211

53182ECOVER, HEADLAMP, LH

main52712-48100iAALH1#,SALA15,TALA1#,TALH17202211

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-48K10supersedes 81016-48J60iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81016-48K00iAALH15..LHD..GEN202211-202308

HEADLAMP-LED TRIPLE BEAM TYPE

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-48K10supersedes 81056-48J60iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81056-48K00iAALH1#,SALA15,TALA1#202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-48K00supersedes 8111B-48J60iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-48K00supersedes 8115B-48J60iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH

main8112A-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#202211

8112BUNIT, HEADLAMP CLEARANCE LED, NO.2 RH

main8112B-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#202211

81131AUNIT, HEADLAMP, RH

main81130-48K10iTALH17..CHI;AALH1#,TALA1#..LHD202211-202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81130-48K11supersedes 81130-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#..LHD202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81130-48K30iTALH17..RHD202211-202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81130-48K31supersedes 81130-48J70iTALH17..RHD202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81130-48K00iAALH15..LHD..GEN202211-202308

HEADLAMP-LED TRIPLE BEAM TYPE

main81130-48K20supersedes 81130-48J70iAALH1#,TALA1#..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

81131BHEAD LAMP LENS, RH

main81131-48K10supersedes 81131-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#..LHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81131-48K30supersedes 81131-48J70iTALH17..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81131-48K00iAALH15..LHD..GEN202211-202308

HEADLAMP-LED TRIPLE BEAM TYPE

main81131-48K20supersedes 81131-48J70iAALH1#,TALA1#..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

81132BGASKET, HEADLAMP LENS

main81132-48C30iAALH1#,TALA1#..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

81134GASKET, HEADLAMP

main90075-23003×4iAALH1#,SALA15,TALA1#,TALH17202211

81135UNIT ASSY, HEADLAMP, RH

main81145-48K10iTALH17..CHI;AALH1#,TALA1#..LHD202211-202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81145-48K11supersedes 81145-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#..LHD202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81145-48K30iTALH17..RHD202211-202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81145-48K31supersedes 81145-48J70iTALH17..RHD202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81145-48K00iAALH1#,SALA15,TALA1#..LHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main81145-48K20supersedes 81145-48J70iAALH1#,TALA1#..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH

main8116A-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#202211

8116BUNIT, HEADLAMP CLEARANCE LED, NO.2 LH

main8116B-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#202211

81171AUNIT, HEADLAMP, LH

main81170-48K10iTALH17..CHI;AALH1#,TALA1#..LHD202211-202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81170-48K11supersedes 81170-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#..LHD202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81170-48K30iTALH17..RHD202211-202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81170-48K31supersedes 81170-48J70iTALH17..RHD202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81170-48K00iAALH15..LHD..GEN202211-202308

HEADLAMP-LED TRIPLE BEAM TYPE

main81170-48K20supersedes 81170-48J70iAALH1#,TALA1#..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

81171BHEAD LAMP LENS, LH

main81171-48K10supersedes 81171-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#..LHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81171-48K30supersedes 81171-48J70iAALH1#,TALA1#..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81171-48K00iAALH1#,SALA15,TALA1#..LHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main81171-48K20supersedes 81171-48J70iAALH1#,TALA1#..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

81172BGASKET, HEADLAMP LENS

main81132-48C30iAALH1#,SALA15,TALA1#,TALH17202211

81175UNIT ASSY, HEADLAMP, LH

main81185-48K10iTALH17..CHI;AALH1#,TALA1#..LHD202211-202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81185-48K11supersedes 81185-48J60iTALH17..CHI;AALH1#,SALA15,TALA1#..LHD202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81185-48K30iTALH17..RHD202211-202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81185-48K31supersedes 81185-48J70iTALH17..RHD202303

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

main81185-48K00iAALH15..LHD..GEN202211-202308

HEADLAMP-LED TRIPLE BEAM TYPE

main81185-48K20supersedes 81185-48J70iAALH1#,TALA1#..RHD202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48220supersedes 81193-48190iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-48200iAALH1#,SALA15,TALA1#,TALH17202211

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-48230supersedes 81193-48210iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48220supersedes 81194-48190iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-48200iAALH1#,SALA15,TALA1#,TALH17202211

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-48230supersedes 81194-48210iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iTALH17..CHI;AALH1#,SALA15,TALA1#202211

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iTALH17..CHI;AALH1#,SALA15,TALA1#202211

8408

85661MOTOR, HEADLAMP LEVELING, RH

main85661-45010supersedes 85661-48050iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

85691MOTOR, HEADLAMP LEVELING, LH

main85691-45010supersedes 85661-48050iTALH17..EUR,GCC,GEN202211

HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)

9007502051

main90075-02051

9007502052

main90075-02052

9007502056

main90075-02056

9007502060

main90075-02060

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

37 parts on this diagram · 2 diagrams in section
