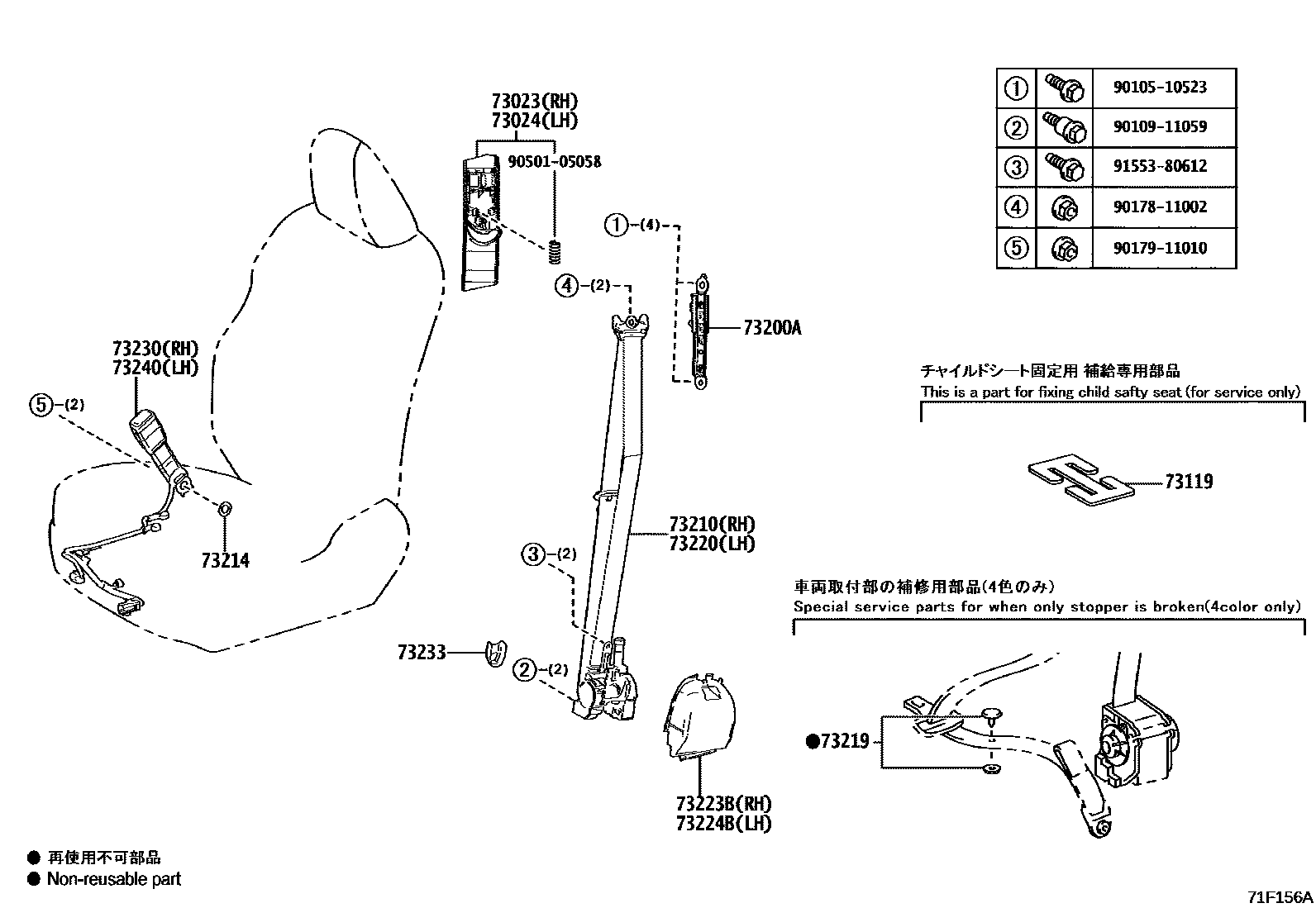

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iAALH1#,TALA10202211

BLACK,TRIM0#,2#,3#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iAALH1#,TALA10202211

BLACK,TRIM0#,2#,3#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAALH1#,SALA15,TALA1#,TALH17202211

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020×2iAALH1#,SALA15,TALA1#,TALH17202211

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-76201-C3iTALH17..EUR,GCC,GEN202211

BLACK,TRIM0#,2#,4#

main73210-76221-C2iAALH1#,SALA15..CHI202211

INDIA SPEC,BLACK,TRIM0#,2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iAALH1#,SALA15,TALA1#,TALH17202211

73219STOPPER, TONGUE PLATE

main73219-33010iAALH1#,SALA15,TALA1#,TALH17202211

BLACK

main73219-33020iAALH1#,SALA15,TALA1#,TALH17202211

GRAY

main73219-33030iAALH1#,SALA15,TALA1#,TALH17202211

BEIGE

main73219-50010iAALH1#,SALA15,TALA1#,TALH17202211

MELLOW WHITE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76181-C3iTALH17..EUR,GCC,GEN202211

BLACK,TRIM0#,2#,4#

main73220-76191-C2iAALH1#,SALA15..CHI202211

INDIA SPEC,BLACK,TRIM0#,2#,4#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-48030iAALH1#,SALA15,TALA1#,TALH17202211

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-48020iAALH1#,SALA15,TALA1#,TALH17202211

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-78130-C0iTALH17..RHD202211

BLACK,TRIM0#,2#,3#,4#

main73230-78140-C0iAALH1#,TALA10..LHD..(EUR,GCC,GEN)202211

BLACK,TRIM0#,2#,4#

main73230-78150-C0iAALH1#,SALA15..CHI202211

BLACK,TRIM0#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iAALH1#,TALA10202211

BLACK,TRIM0#,2#,3#,4#

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-78120-C0iTALH17..RHD202211

BLACK,TRIM0#,2#,3#,4#

main73230-78130-C0iAALH1#,SALA15,TALA10..LHD202211

BLACK,TRIM0#,2#,4#

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9050105058

main90501-05058

9155380612

main91553-80612

19 parts on this diagram · 2 diagrams in section
