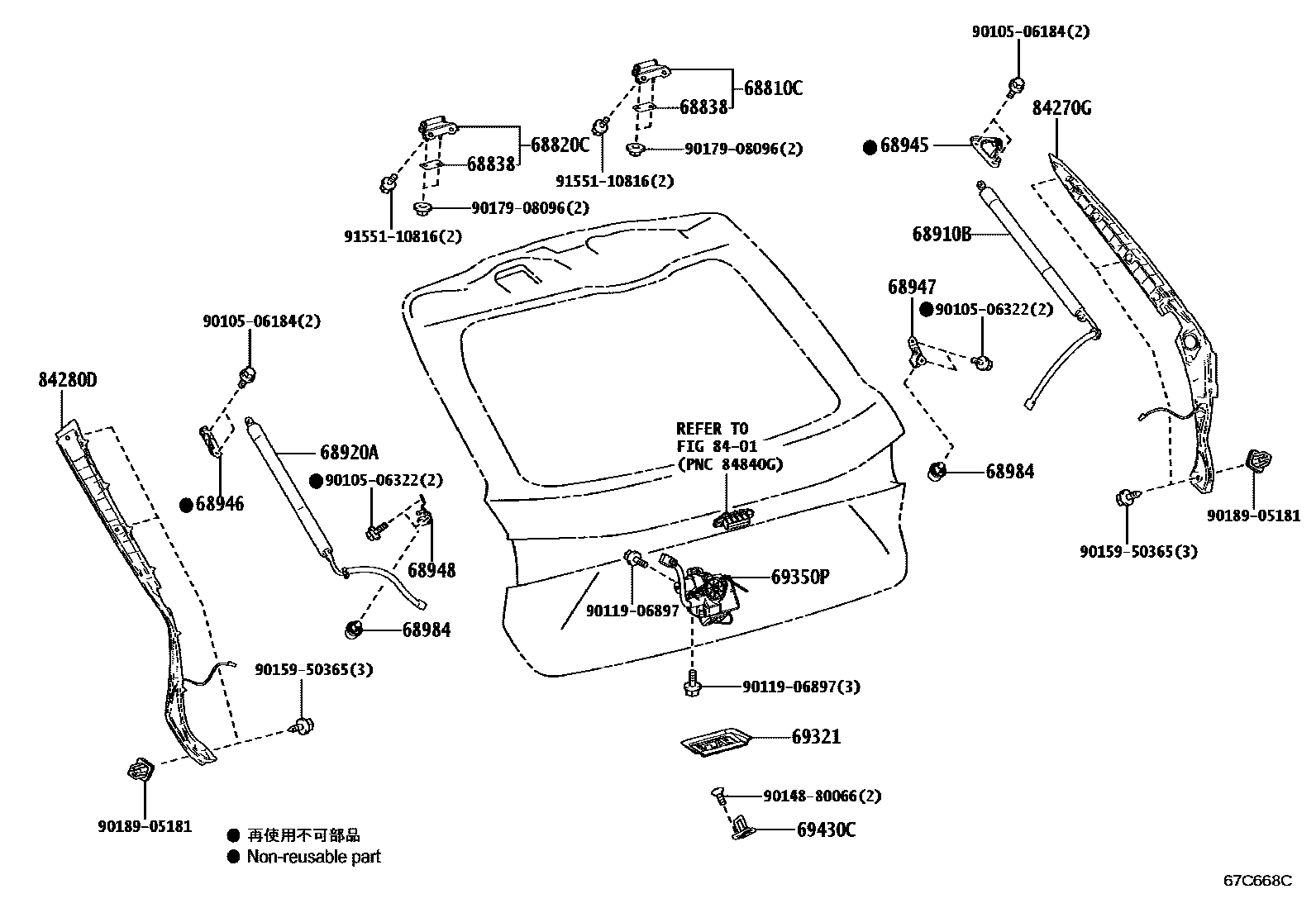

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-48220iAALH1#,SALA15,TALA1#,TALH17202211

68820CHINGE ASSY, BACK DOOR, LH

main68810-48220iAALH1#,SALA15,TALA1#,TALH17202211

68838PAD, BACK DOOR HINGE, NO.1

main68838-48140iAALH1#,SALA15,TALA1#,TALH17202211

T=1.0

main68838-48150iAALH1#,SALA15,TALA1#,TALH17202211

T=1.5

main68838-48160iAALH1#,SALA15,TALA1#,TALH17202211

T=2.0

68910BUNIT ASSY, POWER BACK DOOR, RH

main68910-48180iAALH1#,SALA15,TALA1#,TALH17202211

68920AUNIT ASSY, POWER BACK DOOR, LH

main68920-48010iAALH1#,SALA15,TALA1#,TALH17202211

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-48100iAALH1#,SALA15,TALA1#,TALH17202211

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-48030iAALH1#,SALA15,TALA1#,TALH17202211

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-48080iAALH1#,SALA15,TALA1#,TALH17202211

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-48080iAALH1#,SALA15,TALA1#,TALH17202211

68984STOPPER, BACK DOOR STAY

main68984-78011iAALH1#,SALA15,TALA1#,TALH17202211

69321COVER, BACK DOOR LOCK

main69321-48100-C0iTALH17202211

BLACK,TRIM0#,2#,3#

main69321-48100-C0iTALH17202211

BLACK,TRIM0#,2#,3#,4#

main69321-48100-C0iTALH17202211

BLACK,TRIM0#,2#,4#

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-48100iAALH1#,SALA15,TALA1#,TALH17202211

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iAALH1#,SALA15,TALA1#,TALH17202211

8401

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-48070iAALH1#,SALA15,TALA1#,TALH17202211

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-48070iAALH1#,SALA15,TALA1#,TALH17202211

9010506184

main90105-06184

9010506322

main90105-06322

9011906897

main90119-06897

9014880066

main90148-80066

9015950365

main90159-50365

9017908096

main90179-08096

9018905181

main90189-05181

9155110816

main91551-10816

24 parts on this diagram · 1 diagram in section
