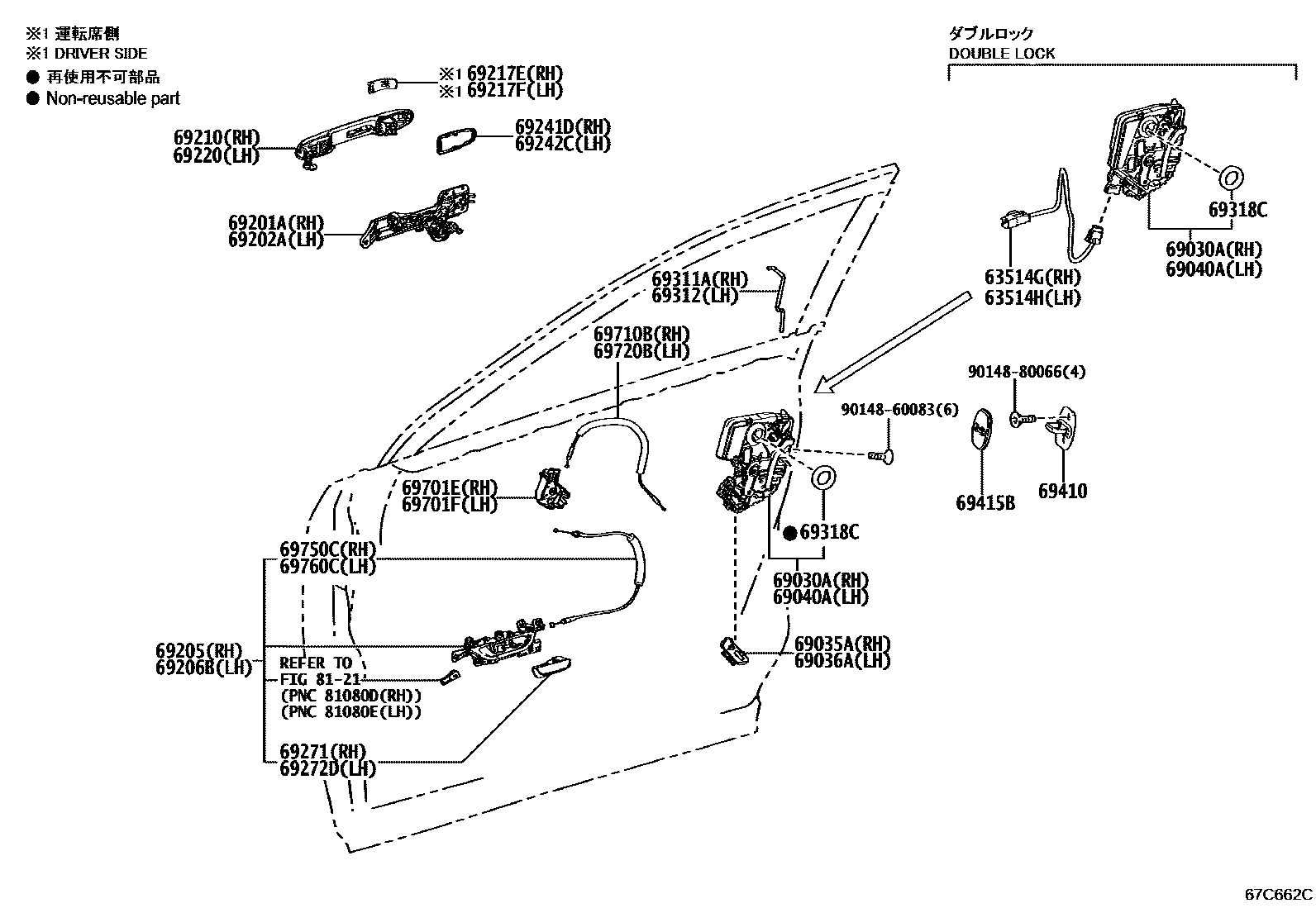

FRONT DOOR LOCK & HANDLE

63514GWIRE, CONNECTOR, RH

main63514-48020iAALH15,16,TALA15,TALH17..EUR202211

63514HWIRE, CONNECTOR, LH

main63514-48030iAALH15,16,TALA15,TALH17..EUR202211

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-78100iAALH1#,TALA1#,TALH17..RHD..GEN202211

INDIA SPEC

main69030-78120iAALH1#,SALA15,TALA1#,TALH17..LHD..(CHI,GCC,GEN)202211

main69030-78130iAALH15,16,TALH17..RHD..EUR202211

main69030-78140iAALH15,16,TALA15,TALH17..LHD..EUR202211

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-78010iAALH1#,SALA15,TALA1#,TALH17202211

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-78010iAALH1#,SALA15,TALA1#,TALH17202211

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-78080iAALH15,TALH17..RHD..EUR202211

INDIA SPEC

main69040-78100iAALH1#,SALA15,TALA1#,TALH17..LHD..(CHI,GCC,GEN)202211

main69040-78110iAALH15,16,TALH17..RHD..EUR202211

main69040-78120iAALH15,16,TALA15,TALH17..LHD..EUR202211

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-48040iAALH1#,TALA1#,TALH17..RHD202211

main69201-78050iAALH1#,SALA15,TALA1#,TALH17..LHD202211

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-48030iAALH1#,TALA1#,TALH17..LHD..(EUR,GCC,GEN)202211

main69202-78030iAALH1#,TALA1#,TALH17..RHD202211

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

CZECH,HUNGARY,POLAND,SLOVAKIA SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

SLOVENIA,CROATIA SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

BULGARIA,ROMANIA SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

ITALY,SPAIN,AUSTRIA SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

ANDORRA,MONACO SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

CANARY SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

ISRAEL SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

UKRAINE SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

AZERBAIJAN SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

GEORGIA SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

MOLDOVA SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

FRANCE SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

SWITZERLAND SPEC

main69202-78050iAALH15,16,TALH17..LHD..EUR202211

PORTUGAL,GREECE SPEC

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69070-48011iAALH16..CHI202211-202509

main69070-48031iTALH17202211-202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

main69070-48120iAALH16..EUR,GEN;AALH10,15,SALA15,TALA1#202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69080-48011iAALH16..CHI202211-202509

main69080-48031iTALH17202211-202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

main69080-48110iAALH16..EUR,GEN;AALH10,15,SALA15,TALA1#202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-48170-A0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202211-202302

WHITE NOVA GF.,083

sub69210-48171

main69210-48170-A1iAALH1#,TALA1#..RHD202211-202302

SONIC QUARTZ,085

sub69210-48171

main69210-48170-B0iAALH1#,TALA1#..RHD202211-202302

SONIC TITANIUM,1J7

sub69210-48171

main69210-48170-B1iAALH1#,TALA1#,TALH17..RHD202211-202302

SONIC CHROME,1L1

sub69210-48171

main69210-48170-B2iAALH1#,TALA1#,TALH17..RHD202211-202302

SONIC IRIDIUM,1L2

sub69210-48171

main69210-48170-C0iAALH1#,TALA1#,TALH17..RHD202211-202302

GRAPHITE BLACK GF.,223

sub69210-48171

main69210-48170-D0iAALH1#,TALA1#..RHD202211-202302

RED MC.CS.,3R1

sub69210-48171

main69210-48170-E0iAALH1#,TALA1#,TALH17..RHD202211-202302

SONIC COPPER,4Y5

sub69210-48171

main69210-48170-G0iAALH1#,TALA1#..RHD202211-202302

TERRANE KHAKI M.M.,6X4

sub69210-48171

main69210-48170-J0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48171

main69210-48170-J1iAALH1#,TALA1#..RHD202211-202302

DEEP BLUE MC.,8X5

sub69210-48171

main69210-48171-A0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202303-202304

WHITE NOVA GF.,083

sub69210-48172

main69210-48171-A1iAALH1#,TALA1#..RHD202303-202304

SONIC QUARTZ,085

sub69210-48172

main69210-48171-B0iAALH1#,TALA1#..RHD202303-202304

SONIC TITANIUM,1J7

sub69210-48172

main69210-48171-B1iAALH1#,TALA1#,TALH17..RHD202303-202304

SONIC CHROME,1L1

sub69210-48172

main69210-48171-B2iAALH1#,TALA1#,TALH17..RHD202303-202304

SONIC IRIDIUM,1L2

sub69210-48172

main69210-48171-C0iAALH1#,TALA1#,TALH17..RHD202303-202304

GRAPHITE BLACK GF.,223

sub69210-48172

main69210-48171-D0iAALH1#,TALA1#..RHD202303-202304

RED MC.CS.,3R1

sub69210-48172

main69210-48171-E0iAALH1#,TALA1#,TALH17..RHD202303-202304

SONIC COPPER,4Y5

sub69210-48172

main69210-48171-G0iAALH1#,TALA1#..RHD202303-202304

TERRANE KHAKI M.M.,6X4

sub69210-48172

main69210-48171-J0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48172

main69210-48171-J1iAALH1#,TALA1#..RHD202303-202304

DEEP BLUE MC.,8X5

sub69210-48172

main69210-48172-A0iAALH1#,TALA1#,TALH17..RHD202304

WHITE NOVA GF.,083

main69210-48172-A1iAALH1#,TALA1#..RHD202304-202509

SONIC QUARTZ,085

main69210-48172-B0iAALH1#,TALA1#..RHD202304

SONIC TITANIUM,1J7

main69210-48172-B1iAALH1#,TALA1#,TALH17..RHD202304

SONIC CHROME,1L1

main69210-48172-B2iAALH1#,TALA1#,TALH17..RHD202304

SONIC IRIDIUM,1L2

main69210-48172-C0iAALH1#,TALA1#,TALH17..RHD202304

GRAPHITE BLACK GF.,223

main69210-48172-D0iAALH1#,TALA1#..RHD202304

RED MC.CS.,3R1

main69210-48172-E0iAALH1#,TALA1#,TALH17..RHD202304

SONIC COPPER,4Y5

main69210-48172-G0iAALH1#,TALA1#..RHD202304

TERRANE KHAKI M.M.,6X4

main69210-48172-J0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202304

HEAT BLUE CONTRAST LAYERI,8X1

main69210-48172-J1iAALH1#,TALA1#..RHD202304

DEEP BLUE MC.,8X5

main69210-48180-A0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202211-202302

WHITE NOVA GF.,083

sub69210-48181

main69210-48180-A1iAALH1#,TALA1#..LHD202211-202302

SONIC QUARTZ,085

sub69210-48181

main69210-48180-B1iAALH1#,TALA1#..LHD202211-202302

SONIC TITANIUM,1J7

sub69210-48181

main69210-48180-B2iAALH1#,TALA1#,TALH17..LHD202211-202302

SONIC CHROME,1L1

sub69210-48181

main69210-48180-B3iAALH1#,TALA1#,TALH17..LHD202211-202302

SONIC IRIDIUM,1L2

sub69210-48181

main69210-48180-C0iAALH1#,TALA1#,TALH17..LHD202211-202302

GRAPHITE BLACK GF.,223

sub69210-48181

main69210-48180-D0iAALH1#,TALA1#..LHD202211-202302

RED MC.CS.,3R1

sub69210-48181

main69210-48180-E0iAALH1#,TALA1#,TALH17..LHD202211-202302

SONIC COPPER,4Y5

sub69210-48181

main69210-48180-G0iAALH1#,TALA1#..LHD202211-202302

TERRANE KHAKI M.M.,6X4

sub69210-48181

main69210-48180-J0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48181

main69210-48180-J1iAALH1#,TALA1#..LHD202211-202302

DEEP BLUE MC.,8X5

sub69210-48181

main69210-48181-A0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202303-202304

WHITE NOVA GF.,083

sub69210-48182

main69210-48181-A1iAALH1#,TALA1#..LHD202303-202304

SONIC QUARTZ,085

sub69210-48182

main69210-48181-B1iAALH1#,TALA1#..LHD202303-202304

SONIC TITANIUM,1J7

sub69210-48182

main69210-48181-B2iAALH1#,TALA1#,TALH17..LHD202303-202304

SONIC CHROME,1L1

sub69210-48182

main69210-48181-B3iAALH1#,TALA1#,TALH17..LHD202303-202304

SONIC IRIDIUM,1L2

sub69210-48182

main69210-48181-C0iAALH1#,TALA1#,TALH17..LHD202303-202304

GRAPHITE BLACK GF.,223

sub69210-48182

main69210-48181-D0iAALH1#,TALA1#..LHD202303-202304

RED MC.CS.,3R1

sub69210-48182

main69210-48181-E0iAALH1#,TALA1#,TALH17..LHD202303-202304

SONIC COPPER,4Y5

sub69210-48182

main69210-48181-G0iAALH1#,TALA1#..LHD202303-202304

TERRANE KHAKI M.M.,6X4

sub69210-48182

main69210-48181-J0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-48182

main69210-48181-J1iAALH1#,TALA1#..LHD202303-202304

DEEP BLUE MC.,8X5

sub69210-48182

main69210-48182-A0iAALH1#,SALA15,TALA1#,TALH17..LHD202304

WHITE NOVA GF.,083

main69210-48182-A1iAALH1#,SALA15,TALA1#..LHD202304-202509

SONIC QUARTZ,085

main69210-48182-B1iAALH1#,SALA15,TALA1#..LHD202304

SONIC TITANIUM,1J7

main69210-48182-B2iAALH1#,SALA15,TALA1#,TALH17..LHD202304

SONIC CHROME,1L1

main69210-48182-B3iAALH1#,SALA15,TALA1#,TALH17..LHD202304

SONIC IRIDIUM,1L2

main69210-48182-C0iAALH1#,SALA15,TALA1#,TALH17..LHD202304

GRAPHITE BLACK GF.,223

main69210-48182-D0iAALH1#,SALA15,TALA1#..LHD202304

RED MC.CS.,3R1

main69210-48182-E0iAALH1#,SALA15,TALA1#,TALH17..LHD202304

SONIC COPPER,4Y5

main69210-48182-G0iAALH1#,SALA15,TALA1#..LHD202304

TERRANE KHAKI M.M.,6X4

main69210-48182-J0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202304

HEAT BLUE CONTRAST LAYERI,8X1

main69210-48182-J1iAALH1#,SALA15,TALA1#..LHD202304

DEEP BLUE MC.,8X5

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-78020-A0iAALH1#,TALA1#,TALH17..RHD202211

WHITE NOVA GF.,083

main69217-78020-A1iAALH1#,TALA1#..RHD202211-202509

SONIC QUARTZ,085

main69217-78020-B0iAALH1#,TALA1#..RHD202211

SONIC TITANIUM,1J7

main69217-78020-B1iAALH1#,TALA1#,TALH17..RHD202211

SONIC CHROME,1L1

main69217-78020-B3iAALH1#,TALA1#,TALH17..RHD202211

SONIC IRIDIUM,1L2

main69217-78020-C1iAALH1#,TALA1#,TALH17..RHD202211

GRAPHITE BLACK GF.,223

main69217-78020-D1iAALH1#,TALA1#..RHD202211

RED MC.CS.,3R1

main69217-78020-E1iAALH1#,TALA1#,TALH17..RHD202211

SONIC COPPER,4Y5

main69217-78020-G0iAALH1#,TALA1#..RHD202211

TERRANE KHAKI M.M.,6X4

main69217-78020-J0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202211

HEAT BLUE CONTRAST LAYERI,8X1

main69217-78020-J2iAALH1#,TALA1#..RHD202211

DEEP BLUE MC.,8X5

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-78020-A0iAALH1#,SALA15,TALA1#,TALH17..LHD202211

WHITE NOVA GF.,083

main69217-78020-A1iAALH1#,SALA15,TALA1#..LHD202211-202509

SONIC QUARTZ,085

main69217-78020-B0iAALH1#,SALA15,TALA1#..LHD202211

SONIC TITANIUM,1J7

main69217-78020-B1iAALH1#,SALA15,TALA1#,TALH17..LHD202211

SONIC CHROME,1L1

main69217-78020-B3iAALH1#,SALA15,TALA1#,TALH17..LHD202211

SONIC IRIDIUM,1L2

main69217-78020-C1iAALH1#,SALA15,TALA1#,TALH17..LHD202211

GRAPHITE BLACK GF.,223

main69217-78020-D1iAALH1#,SALA15,TALA1#..LHD202211

RED MC.CS.,3R1

main69217-78020-E1iAALH1#,SALA15,TALA1#,TALH17..LHD202211

SONIC COPPER,4Y5

main69217-78020-G0iAALH1#,SALA15,TALA1#..LHD202211

TERRANE KHAKI M.M.,6X4

main69217-78020-J0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202211

HEAT BLUE CONTRAST LAYERI,8X1

main69217-78020-J2iAALH1#,SALA15,TALA1#..LHD202211

DEEP BLUE MC.,8X5

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-48110-A0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202211-202302

WHITE NOVA GF.,083

sub69220-48111

main69220-48110-A1iAALH1#,TALA1#..RHD202211-202302

SONIC QUARTZ,085

sub69220-48111

main69220-48110-B0iAALH1#,TALA1#..RHD202211-202302

SONIC TITANIUM,1J7

sub69220-48111

main69220-48110-B1iAALH1#,TALA1#,TALH17..RHD202211-202302

SONIC CHROME,1L1

sub69220-48111

main69220-48110-B2iAALH1#,TALA1#,TALH17..RHD202211-202302

SONIC IRIDIUM,1L2

sub69220-48111

main69220-48110-C0iAALH1#,TALA1#,TALH17..RHD202211-202302

GRAPHITE BLACK GF.,223

sub69220-48111

main69220-48110-D0iAALH1#,TALA1#..RHD202211-202302

RED MC.CS.,3R1

sub69220-48111

main69220-48110-E0iAALH1#,TALA1#,TALH17..RHD202211-202302

SONIC COPPER,4Y5

sub69220-48111

main69220-48110-G0iAALH1#,TALA1#..RHD202211-202302

TERRANE KHAKI M.M.,6X4

sub69220-48111

main69220-48110-J0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48111

main69220-48110-J1iAALH1#,TALA1#..RHD202211-202302

DEEP BLUE MC.,8X5

sub69220-48111

main69220-48111-A0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202303-202304

WHITE NOVA GF.,083

sub69220-48112

main69220-48111-A1iAALH1#,TALA1#..RHD202303-202304

SONIC QUARTZ,085

sub69220-48112

main69220-48111-B0iAALH1#,TALA1#..RHD202303-202304

SONIC TITANIUM,1J7

sub69220-48112

main69220-48111-B1iAALH1#,TALA1#,TALH17..RHD202303-202304

SONIC CHROME,1L1

sub69220-48112

main69220-48111-B2iAALH1#,TALA1#,TALH17..RHD202303-202304

SONIC IRIDIUM,1L2

sub69220-48112

main69220-48111-C0iAALH1#,TALA1#,TALH17..RHD202303-202304

GRAPHITE BLACK GF.,223

sub69220-48112

main69220-48111-D0iAALH1#,TALA1#..RHD202303-202304

RED MC.CS.,3R1

sub69220-48112

main69220-48111-E0iAALH1#,TALA1#,TALH17..RHD202303-202304

SONIC COPPER,4Y5

sub69220-48112

main69220-48111-G0iAALH1#,TALA1#..RHD202303-202304

TERRANE KHAKI M.M.,6X4

sub69220-48112

main69220-48111-J0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48112

main69220-48111-J1iAALH1#,TALA1#..RHD202303-202304

DEEP BLUE MC.,8X5

sub69220-48112

main69220-48112-A0iAALH1#,TALA1#,TALH17..RHD202304

WHITE NOVA GF.,083

main69220-48112-A1iAALH1#,TALA1#..RHD202304-202509

SONIC QUARTZ,085

main69220-48112-B0iAALH1#,TALA1#..RHD202304

SONIC TITANIUM,1J7

main69220-48112-B1iAALH1#,TALA1#,TALH17..RHD202304

SONIC CHROME,1L1

main69220-48112-B2iAALH1#,TALA1#,TALH17..RHD202304

SONIC IRIDIUM,1L2

main69220-48112-C0iAALH1#,TALA1#,TALH17..RHD202304

GRAPHITE BLACK GF.,223

main69220-48112-D0iAALH1#,TALA1#..RHD202304

RED MC.CS.,3R1

main69220-48112-E0iAALH1#,TALA1#,TALH17..RHD202304

SONIC COPPER,4Y5

main69220-48112-G0iAALH1#,TALA1#..RHD202304

TERRANE KHAKI M.M.,6X4

main69220-48112-J0iTALA15,TALH17..RHD;AALH15,16..RHD..EUR202304

HEAT BLUE CONTRAST LAYERI,8X1

main69220-48112-J1iAALH1#,TALA1#..RHD202304

DEEP BLUE MC.,8X5

main69220-48120-A0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202211-202302

WHITE NOVA GF.,083

sub69220-48121

main69220-48120-A1iAALH1#,TALA1#..LHD202211-202302

SONIC QUARTZ,085

sub69220-48121

main69220-48120-B1iAALH1#,TALA1#..LHD202211-202302

SONIC TITANIUM,1J7

sub69220-48121

main69220-48120-B2iAALH1#,TALA1#,TALH17..LHD202211-202302

SONIC CHROME,1L1

sub69220-48121

main69220-48120-B3iAALH1#,TALA1#,TALH17..LHD202211-202302

SONIC IRIDIUM,1L2

sub69220-48121

main69220-48120-C0iAALH1#,TALA1#,TALH17..LHD202211-202302

GRAPHITE BLACK GF.,223

sub69220-48121

main69220-48120-D0iAALH1#,TALA1#..LHD202211-202302

RED MC.CS.,3R1

sub69220-48121

main69220-48120-E0iAALH1#,TALA1#,TALH17..LHD202211-202302

SONIC COPPER,4Y5

sub69220-48121

main69220-48120-G0iAALH1#,TALA1#..LHD202211-202302

TERRANE KHAKI M.M.,6X4

sub69220-48121

main69220-48120-J0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48121

main69220-48120-J1iAALH1#,TALA1#..LHD202211-202302

DEEP BLUE MC.,8X5

sub69220-48121

main69220-48121-A0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202303-202304

WHITE NOVA GF.,083

sub69220-48122

main69220-48121-A1iAALH1#,TALA1#..LHD202303-202304

SONIC QUARTZ,085

sub69220-48122

main69220-48121-B1iAALH1#,TALA1#..LHD202303-202304

SONIC TITANIUM,1J7

sub69220-48122

main69220-48121-B2iAALH1#,TALA1#,TALH17..LHD202303-202304

SONIC CHROME,1L1

sub69220-48122

main69220-48121-B3iAALH1#,TALA1#,TALH17..LHD202303-202304

SONIC IRIDIUM,1L2

sub69220-48122

main69220-48121-C0iAALH1#,TALA1#,TALH17..LHD202303-202304

GRAPHITE BLACK GF.,223

sub69220-48122

main69220-48121-D0iAALH1#,TALA1#..LHD202303-202304

RED MC.CS.,3R1

sub69220-48122

main69220-48121-E0iAALH1#,TALA1#,TALH17..LHD202303-202304

SONIC COPPER,4Y5

sub69220-48122

main69220-48121-G0iAALH1#,TALA1#..LHD202303-202304

TERRANE KHAKI M.M.,6X4

sub69220-48122

main69220-48121-J0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-48122

main69220-48121-J1iAALH1#,TALA1#..LHD202303-202304

DEEP BLUE MC.,8X5

sub69220-48122

main69220-48122-A0iAALH1#,SALA15,TALA1#,TALH17..LHD202304

WHITE NOVA GF.,083

main69220-48122-A1iAALH1#,SALA15,TALA1#..LHD202304-202509

SONIC QUARTZ,085

main69220-48122-B1iAALH1#,SALA15,TALA1#..LHD202304

SONIC TITANIUM,1J7

main69220-48122-B2iAALH1#,SALA15,TALA1#,TALH17..LHD202304

SONIC CHROME,1L1

main69220-48122-B3iAALH1#,SALA15,TALA1#,TALH17..LHD202304

SONIC IRIDIUM,1L2

main69220-48122-C0iAALH1#,SALA15,TALA1#,TALH17..LHD202304

GRAPHITE BLACK GF.,223

main69220-48122-D0iAALH1#,SALA15,TALA1#..LHD202304

RED MC.CS.,3R1

main69220-48122-E0iAALH1#,SALA15,TALA1#,TALH17..LHD202304

SONIC COPPER,4Y5

main69220-48122-G0iAALH1#,SALA15,TALA1#..LHD202304

TERRANE KHAKI M.M.,6X4

main69220-48122-J0iTALA15,TALH17..LHD;AALH15,16..LHD..EUR202304

HEAT BLUE CONTRAST LAYERI,8X1

main69220-48122-J1iAALH1#,SALA15,TALA1#..LHD202304

DEEP BLUE MC.,8X5

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-48060iAALH1#,SALA15,TALA1#,TALH17202211

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69241-48060iAALH1#,SALA15,TALA1#,TALH17202211

69271HANDLE, FRONT DOOR INSIDE, RH

main69271-48020iAALH1#,SALA15,TALA1#,TALH17202211

69272DHANDLE, FRONT DOOR INSIDE, LH

main69272-48020iAALH1#,SALA15,TALA1#,TALH17202211

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-48100iAALH1#,SALA15,TALA1#,TALH17202211

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-48100iAALH1#,SALA15,TALA1#,TALH17202211

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iAALH1#,SALA15,TALA1#,TALH17202211

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030iAALH1#,SALA15,TALA1#,TALH17202211

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020iAALH1#,SALA15,TALA1#,TALH17202211

69701EBELLCRANK SUB-ASSY, FRONT DOOR LOCK CONTROL, UPPER, RH

main69701-48010iAALH1#,SALA15,TALA1#,TALH17202211

69701FBELLCRANK SUB-ASSY, FRONT DOOR LOCK CONTROL, UPPER, LH

main69701-48020iAALH1#,SALA15,TALA1#,TALH17202211

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-48100iAALH1#,SALA15,TALA1#,TALH17202211

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-48100iAALH1#,SALA15,TALA1#,TALH17202211

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-48100iTALH17202211-202509

main69750-48180iTALH17202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-48100iTALH17202211-202509

main69750-48180iTALH17202410

ILLUMINATED ENTRY SYSTEM-MULTI-COLOR

8121

9014860083

main90148-60083

9014880066

main90148-80066

32 parts on this diagram · 1 diagram in section
