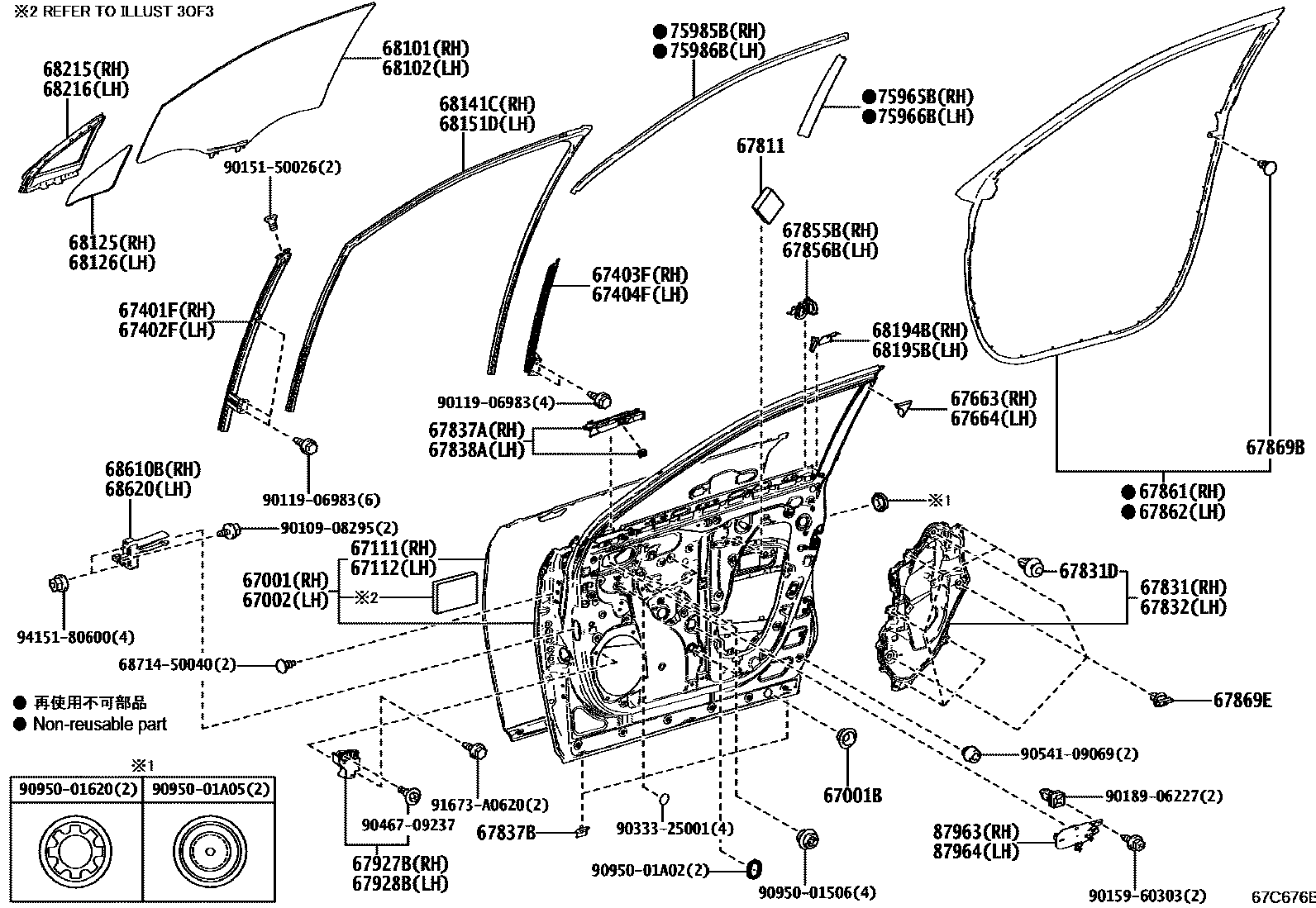

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1HIGH DECREMENT MASTIC SEAL

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-48210iAALH1#,SALA15,TALA1#,TALH17202211

67001BPLUG, HOLE(FOR FRONT DOOR PANEL)

main90950-01958iAALH1#,TALA1#,TALH17202211-202212

OD=41

main90950-01A48iAALH1#,SALA15,TALA1#,TALH17202212

OD=38

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-48210iAALH1#,SALA15,TALA1#,TALH17202211

67111PANEL, FRONT DOOR, OUTER RH

main67111-48100iAALH1#,SALA15,TALA1#,TALH17202211

67112PANEL, FRONT DOOR, OUTER LH

main67112-48100iAALH1#,SALA15,TALA1#,TALH17202211

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-48030iAALH1#,SALA15,TALA1#,TALH17202211

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-48030iAALH1#,SALA15,TALA1#,TALH17202211

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-48100iAALH1#,SALA15,TALA1#,TALH17202211

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-48100iAALH1#,SALA15,TALA1#,TALH17202211

67663GARNISH, DOOR FRAME, UPPER RH

main67663-48060iAALH1#,SALA15,TALA1#,TALH17202211

67664GARNISH, DOOR FRAME, UPPER LH

main67664-48060iAALH1#,SALA15,TALA1#,TALH17202211

67811PAD, FRONT DOOR SILENCER

main67811-30100iAALH1#,SALA15,TALA1#,TALH17202211

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-48090iAALH1#,SALA15,TALA1#,TALH17202211

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iAALH1#,SALA15,TALA1#,TALH17202211

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-48090iAALH1#,SALA15,TALA1#,TALH17202211

67837ASEAL, FRONT DOOR VENT, RH

main67837-48070iAALH1#,SALA15,TALA1#,TALH17202211

67837BSEAL, FRONT DOOR DUST PROOF

main67837-48050iAALH1#,SALA15,TALA1#,TALH17202211

67838ASEAL, FRONT DOOR VENT, LH

main67838-48040iAALH1#,SALA15,TALA1#,TALH17202211

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-48070iAALH1#,SALA15,TALA1#,TALH17202211

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-48060iAALH1#,SALA15,TALA1#,TALH17202211

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-48150iAALH1#,SALA15,TALA1#,TALH17202211

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-48150iAALH1#,SALA15,TALA1#,TALH17202211

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iAALH1#,SALA15,TALA1#,TALH17202211

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010iAALH1#,SALA15,TALA1#,TALH17202211

67927BCUSHION, SEPARATION DOOR STIFFENER, NO.1

main67927-48080iAALH1#,SALA15,TALA1#,TALH17202211

67928BCUSHION, SEPARATION DOOR STIFFENER, NO.2

main67928-48080iAALH1#,SALA15,TALA1#,TALH17202211

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-48270iAALH1#,SALA15,TALA1#,TALH17202211

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-48260iAALH1#,SALA15,TALA1#,TALH17202211

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-48040iAALH1#,SALA15,TALA1#,TALH17202211

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-48040iAALH1#,SALA15,TALA1#,TALH17202211

68141CRUN, FRONT DOOR GLASS, RH

main68141-48100iAALH1#,SALA15,TALA1#,TALH17202211

68151DRUN, FRONT DOOR GLASS, LH

main68151-48100iAALH1#,SALA15,TALA1#,TALH17202211

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-48020iAALH1#,SALA15,TALA1#,TALH17202211

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-48020iAALH1#,SALA15,TALA1#,TALH17202211

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-48010iAALH1#,SALA15,TALA1#,TALH17202211

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-48010iAALH1#,SALA15,TALA1#,TALH17202211

68610BCHECK ASSY, FRONT DOOR, RH

main68610-48120iAALH1#,SALA15,TALA1#,TALH17202211

68620CHECK ASSY, FRONT DOOR, LH

main68620-48080iAALH1#,SALA15,TALA1#,TALH17202211

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-48030iAALH1#,SALA15,TALA1#,TALH17202211

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-48030iAALH1#,SALA15,TALA1#,TALH17202211

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-48090iAALH1#,SALA15,TALA1#,TALH17202211

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-48090iAALH1#,SALA15,TALA1#,TALH17202211

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-48040iAALH1#,SALA15,TALA1#,TALH17202211

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-48040iAALH1#,SALA15,TALA1#,TALH17202211

6871450040

main68714-50040

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9033325001

main90333-25001

9046709237

main90467-09237

9054109069

main90541-09069

9095001506

main90950-01506

9095001620

main90950-01620

9095001A02

main90950-01A02

9095001A05

main90950-01A05

91673A0620

main91673-A0620

9415180600

main94151-80600

59 parts on this diagram · 3 diagrams in section
