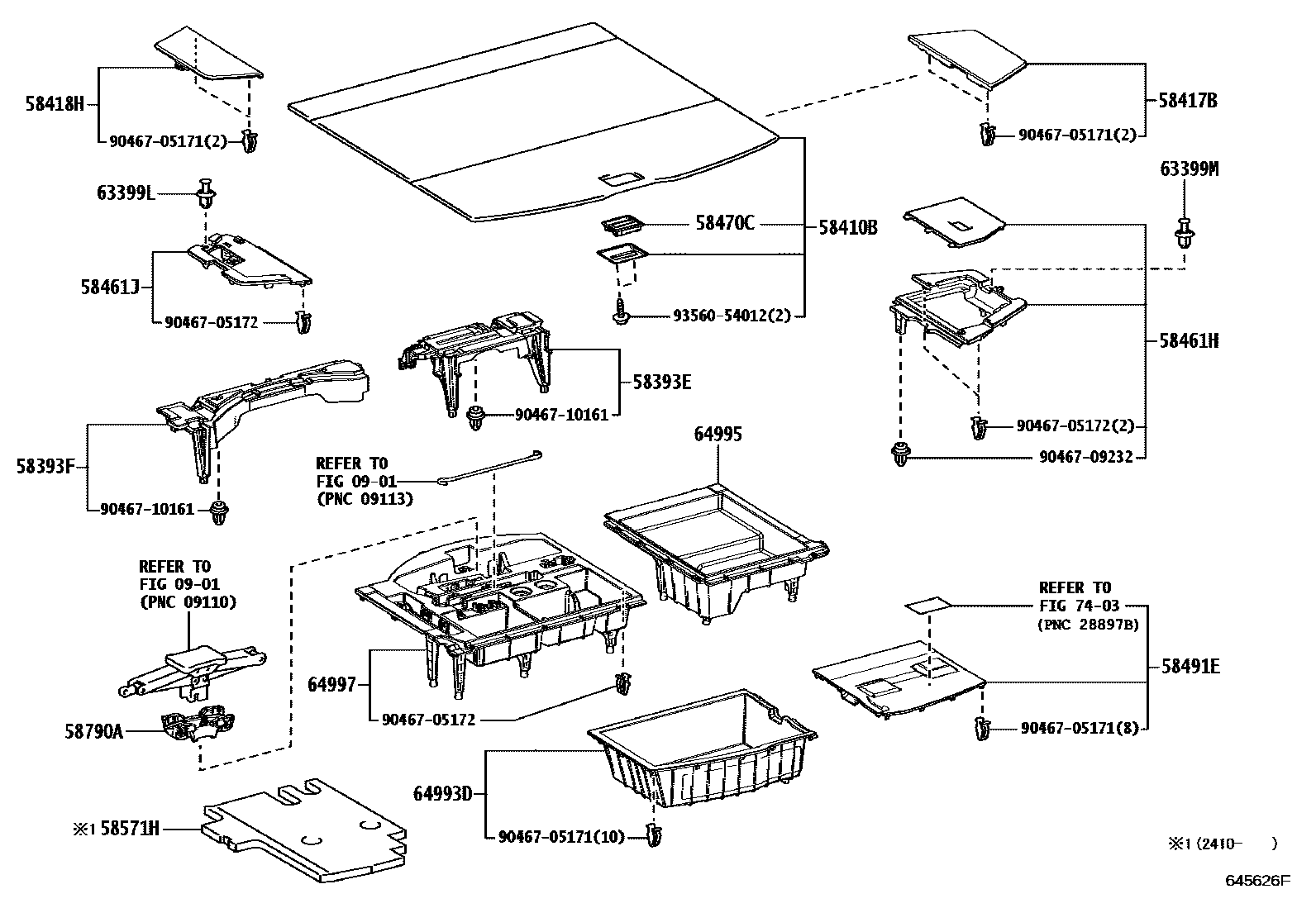

DECK BOARD & DECK TRIM COVER
0901
58393ESUPPORT, DECK BOARD SET
58393FSUPPORT, DECK BOARD SET, LH
58410BBOARD ASSY, DECK
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,3#
58417BBOARD, REAR FLOOR, REAR RH
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
58418HBOARD, REAR FLOOR, REAR LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,4#
58461HCOVER, JUNCTION BLOCK SERVICE
58461JCOVER, JUNCTION BLOCK SERVICE, LH
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
58491EPLATE, BATTERY SERVICE COVER
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20)
KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
UKRAINE SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
UKRAINE SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
AZERBAIJAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
GEORGIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MOROCCO SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
INDIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
INDIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MONGOLIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MOLDOVA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
ARMENIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
SPARE TIRE-S-TEMPORARY(T165/70D20)
TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
58571HCARPET, REAR FLOOR
INDIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
UKRAINE SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
UKRAINE SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
AZERBAIJAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
AZERBAIJAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
GEORGIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
GEORGIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
MOROCCO SPEC
INDIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
MONGOLIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
MONGOLIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
MOLDOVA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
MOLDOVA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
ARMENIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V
SPARE TIRE-S-TEMPORARY(T165/90D18)
SPARE TIRE-S-TEMPORARY(T165/70D20)
SPARE TIRE-TEMPORARY(T165/90D18)
KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
ARMENIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V
TAIWAN SPEC
58790ACARRIER ASSY, JACK
JACK-WITH&KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&UKRAINE SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&UKRAINE SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&AZERBAIJAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&GEORGIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&MOROCCO SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&INDIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&INDIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&MONGOLIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&MOLDOVA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&ARMENIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&INDONESIA SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH(DOP)
JACK-WITHOUT&TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
JACK-WITH&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&AUSTRALIA SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&NEW ZEALAND SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH(DOP)&AUSTRALIA SPEC
JACK-WITH(DOP)&NEW ZEALAND SPEC
JACK-WITH&TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20)
63399LCLIP, JUNCTION BLOCK SERVICE COVER, LH
63399MCLIP, JUNCTION BLOCK SERVISE COVER, RH
64993BOX, DECK FLOOR, REAR
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
SPARE TIRE-S-TEMPORARY(T165/70D20)
64993DBOX, DECK FLOOR, REAR LH
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main64993-48201iAALH16;AALH10,TALA10..GEN;AALH15,TALH17..EUR;AALH15,TALA15,TALH17..RHD..GEN¥10,000202410
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
INDIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MONGOLIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MOLDOVA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
ARMENIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
SPARE TIRE-S-TEMPORARY(T165/70D20)
TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20)
RUSSIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
BELARUS SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
UKRAINE SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
UKRAINE SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
AZERBAIJAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
GEORGIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MOROCCO SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
INDIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
AZERBAIJAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
AZERBAIJAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
GEORGIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
GEORGIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MOROCCO SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
INDIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
INDIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MONGOLIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
MONGOLIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
MOLDOVA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
MOLDOVA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
ARMENIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
SPARE TIRE-S-TEMPORARY(T165/90D18)
SPARE TIRE-S-TEMPORARY(T165/70D20)
SPARE TIRE-TEMPORARY(T165/90D18)
KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
ARMENIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20)
KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
UKRAINE SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
UKRAINE SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
64995BOX, DECK FLOOR, RH
JACK-WITHOUT&TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
JACK-WITH&KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
sub64995-48051
JACK-WITH&TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&RUSSIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&BELARUS SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&UKRAINE SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
sub64995-48051
JACK-WITH&UKRAINE SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&AZERBAIJAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&GEORGIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&MOROCCO SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
sub64995-48051
JACK-WITH&INDIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
sub64995-48051
JACK-WITH&INDIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&MONGOLIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&MOLDOVA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&ARMENIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&SPARE TIRE-S-TEMPORARY(T165/70D20)
sub64995-48051
JACK-WITH&AZERBAIJAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&UKRAINE SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&UKRAINE SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&AZERBAIJAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&GEORGIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&GEORGIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&MOROCCO SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&INDIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&INDIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&MONGOLIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&MONGOLIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&MOLDOVA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&MOLDOVA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&ARMENIA SPEC&FRONT WHEEL BRAKE-20INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&SPARE TIRE-S-TEMPORARY(T165/70D20)
JACK-WITH&SPARE TIRE-TEMPORARY(T165/90D18)
JACK-WITH&KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&KYRGYZSTAN SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
JACK-WITH&ARMENIA SPEC&FRONT WHEEL BRAKE-18INCH DISC 28V&SPARE TIRE-S-TEMPORARY(T165/90D18)
64997BOX, DECK FLOOR, LH
main64997-48060iAALH16;AALH10,TALA10..GEN;AALH15,TALH17..EUR;AALH15,TALA15,TALH17..RHD..GEN¥14,100202211
JACK-WITHOUT&TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
7403
9046705171
9046705172
9046709232
9046710161
9356054012
24 parts on this diagram · 8 diagrams in section
