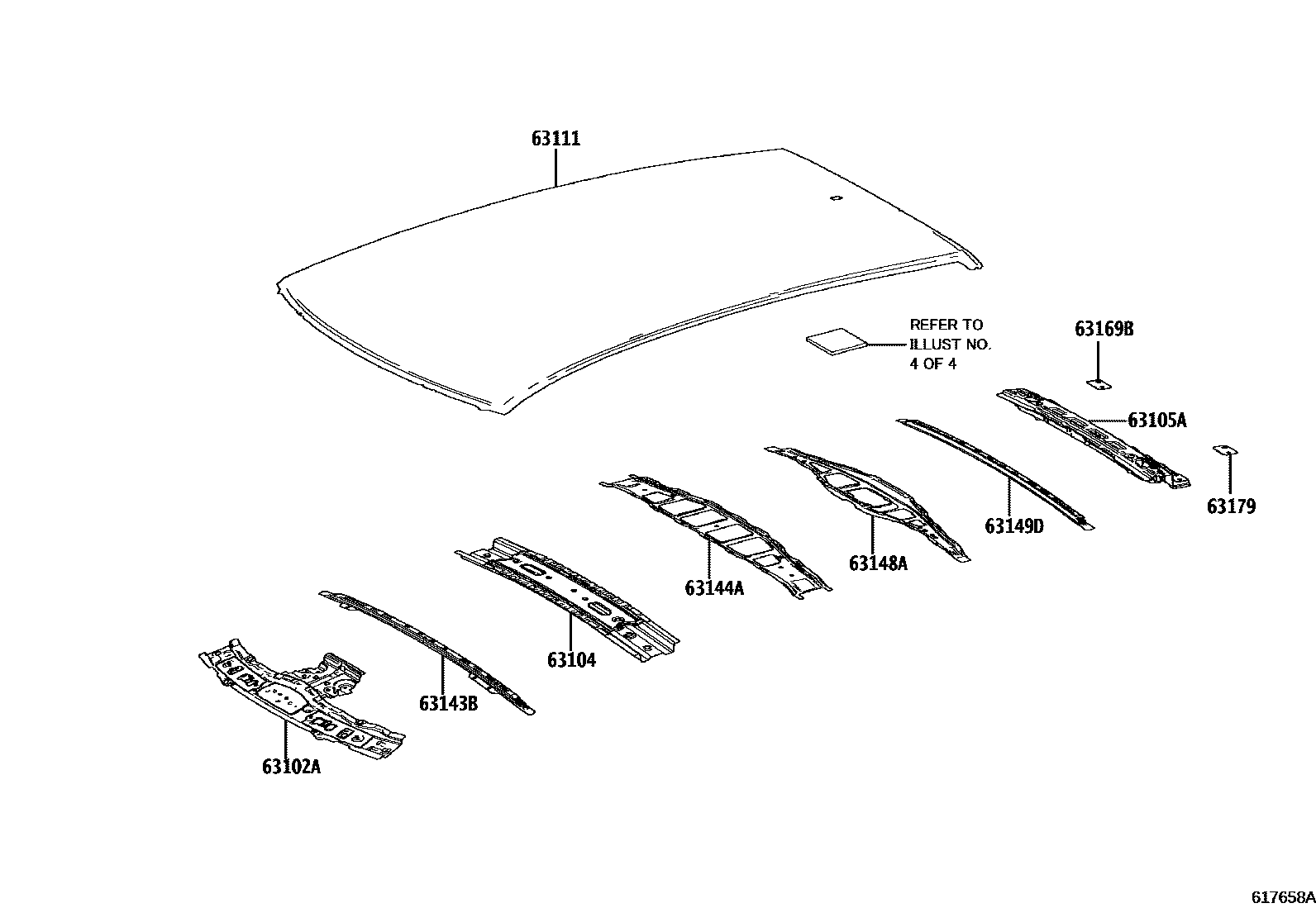

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0003 1ROOF PANEL(MOON/PANORAMA ROOF0004 1SLIDING ROOF(MOON) 0005 1SLIDING ROOF(PANORAMA) 0006 1ROOF RACK 0007 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48280iAALH1#,SALA15,TALA1#,TALH17..CHI,GCC,GEN202211

ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)

main63102-48280iAALH1#,SALA15,TALA1#,TALH17..CHI,GCC,GEN202211

MOON ROOF-WITH(PANORAMA ROOF)

main63102-48919iAALH15,TALA15,TALH17..GCC202211-202410

main63102-48920iAALH1#,SALA15,TALH17..CHI202211-202410

MOON ROOF-WITH(TILT & SLIDE)

main63102-48920iAALH1#,TALA1#,TALH17..GEN202211-202410

ROOF RAIL-WITH&MOON ROOF-WITH(TILT & SLIDE)

main63102-48920iAALH15,TALA15,TALH17..GCC202410

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-48090iAALH15,TALA15,TALH17..GCC202211-202410

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48900iAALH1#,SALA15,TALA1#,TALH17202211

63111PANEL, ROOF

main63111-48420iAALH1#,TALA1#,TALH17..GEN202211-202410

ROOF RAIL-WITH

main63111-48430iAALH1#,TALA1#,TALH17..GEN202211-202410

main63111-48440iAALH15,16,TALA15,TALH17..EUR202211

ROOF RAIL-WITH

main63111-48440iAALH15,TALA15,TALH17..GCC202211-202410

ROOF RAIL-WITH&MOON ROOF-WITH(TILT & SLIDE)

main63111-48440iAALH1#,SALA15,TALH17..CHI202211

MOON ROOF-WITH(TILT & SLIDE)

main63111-48450iAALH1#,SALA15,TALH17..CHI202211-202410

MOON ROOF-WITH(TILT & SLIDE)

main63111-48450iAALH15,TALA15,TALH17..GCC202410

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48130iAALH1#,TALA1#,TALH17..EUR,GEN202211-202410

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48120iAALH1#,SALA15,TALA1#,TALH17202211

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-48060iAALH1#,SALA15,TALA1#,TALH17202211

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-48060iAALH1#,SALA15,TALA1#,TALH17202211

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iAALH1#,SALA15,TALA1#,TALH17202211

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iAALH1#,SALA15,TALA1#,TALH17202211

10 parts on this diagram · 6 diagrams in section
